High Mast LED Flood Light

1000W High Mast Led Flood Light

Item No.: FG1000W04
1. Excellent heat sink with Copper pipe design
2. 60° beam angle for choice
3. 17 settings on the bracket,288 degree adjust angle
4. LUMILEDS 3030 Chips,High CRI,over 120lm/w
5. IP65 Waterproof,5 Years warranty
Request Quote
Description Product Dimension User Manual Application Cases



                        1000W-led-flood-light-1
                         1000W-led-flood-light-2

Product Features:

1. Excellent heat sink with internal Copper pipe design;
2. 60° beam angle for choice.light trans-mittance can reach up to 92%;
3. LUMILEDS 3030 Chips,cost effective compared with COB solution;
4. Copper pipe connected with zipped fins heat sink.High thermal efficiency and rapid cooling;
5. 17 settings on the bracket.288 degree adjust angle;
6. Pure aluminum reflector intergrated with Silicone ring and tempered glass cover,waterproof,anti-fog and anti-frost;
7. Long Lifespan (up to 80,000 hours);


Product Specification:

A.General data

Product Name High Mast LED Flood Light 1000W
Model  FG1000W04
Input Voltage  100-277VAC
Frequency  50/60 Hz
Power Consumption 1000W
Power Factor >0.95
Optical design 60°
IP Rating IP65
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data

Model                         FG1000W04
Light Source           LUMILEDS 3030 Chips
LED QTY         1248PCS
Colour Temperature           2700~6000K
Luminous Flux         120000lm
Luminous Efficiency          120lm/w
Colour Rendering Index          >80Ra

C. Packing Data

Model                                                   FG1000W04
Product Dimension            Ø445*H630mm
Pcs/CTN            1
Package Dimensions              624*542*567mm
Net weight          26KG
Gross weight          30KG

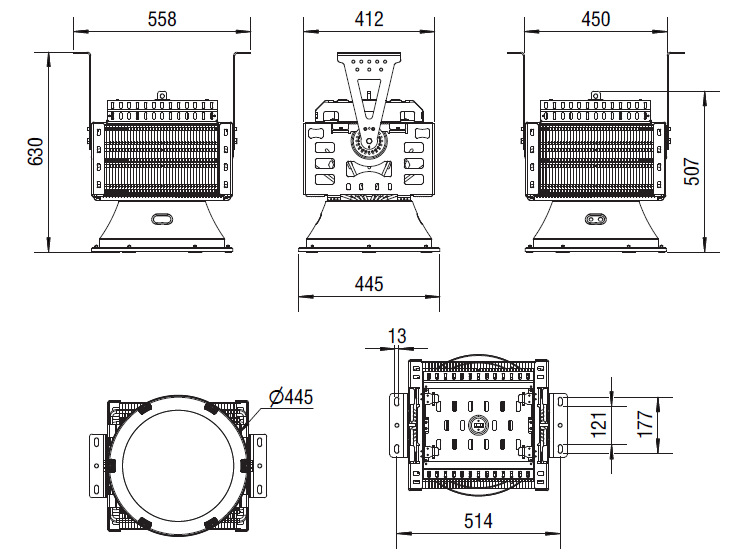

1000w-led-flood-light-size































1000w-led-flood-light-reflector-size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
1000w-led-flood-light-wire-drawing

Installation and schematic:

1000w-led-flood-light-installation
High Mast Led Flood Light is widely used in sport field lighting, football field, baseball field, Olympic stadium , large square lighting, airport, port dock lighting and any outdoor industrial lighting cases.

high-mast-led-flood-light-application
