Cap Led Street Light

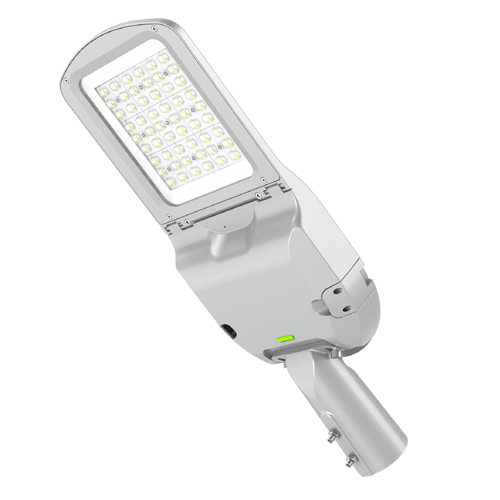

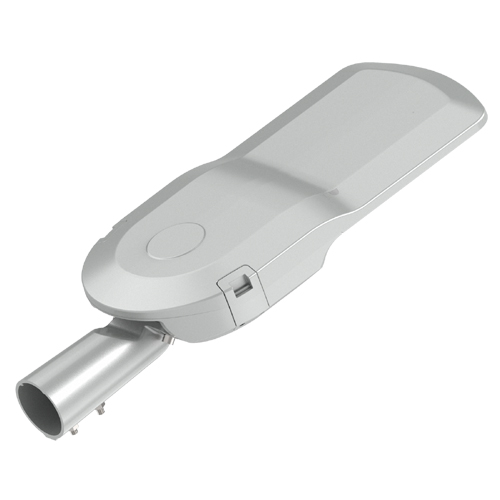

100W Cap Led Street Light

Item No.: LD100W19
1. Free of dust and water, suitable for outdoor
2. It can withstand a level 17 hurricane
3. All aluminum housing for the heat dissipating
4. Ultraithin design,convenient for storage, transportation and maintenance.
5. IP66 Waterproof, 5 Years warranty
Request Quote
Description Product Dimension User Manual Application Cases

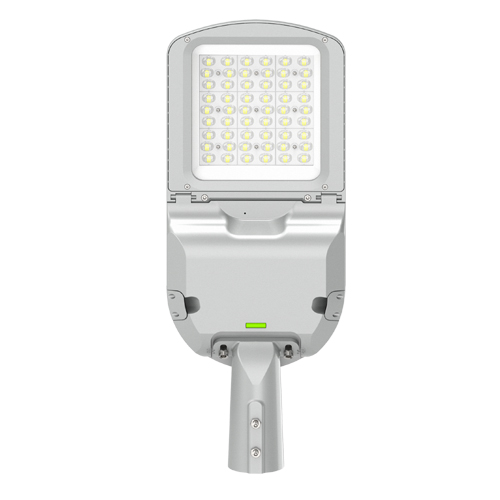

                               100W-cap-led-street-light-1

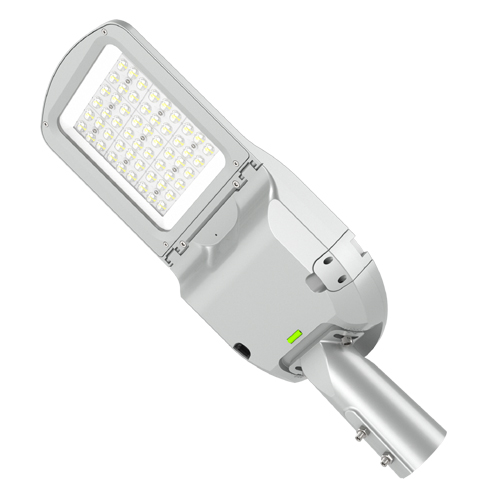

                               100W-cap-led-street-light-2

Product Features:

1. All aluminum housing for the heat dissipating, greatly extends the lifespan of lighting source;
2. High pressure casting, procesed by painting, solid an corrosion resisting;
3. Ultraithin design, convenient for storage, transportation and maintenance
;
4. Free of dust and water, suitable for outdoor
;
5. It can withstand a level 17 hurricane;
6. Lumileds 3030 or 5050 as lights source, over 150lm/w output and 80~90Ra

7. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name                                                       Cap LED Street Light 100W
Model   LD100W19
Input Voltage                                100-277VAC
Frequency                                    50/60 Hz
Power Consumption                                     100W
Power Factor                                    >0.95
Optical design                  T2M/T3M/T4M/60°/90°/120°
IP Rating                                      IP66
Operating Temperature                              -25°C~+45°C
Storage Temperature                              -25°C~+65°C
Relative Humidity                                  10%-90%
LED Lifetime                      > 80,000 hrs @ LM70,LM80
Safety Standards                                   CE&Rohs

B. Light Data

Model                                                                                  LD100W19
Light Source                 LUMILEDS 3030 or 5050 Chips
LED QTY                                    144PCS
Colour Temperature                                 2700~7000K
Luminous Flux                                   15000lm
Luminous Efficiency                                    150lm/w
Colour Rendering Index                                     >80Ra

C. Packing Data

Model                                                                                  LD100W19
Product Dimension                                613*240*109mm
Pcs/CTN                                           1
Package Dimensions                                670*300*150mm
Net weight                                          4.8KG
Gross weight                                         5.5KG


  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
300w-ufo-led-high-bay-light-wire-drawing
Installation and schematic:
LED-Street-Light-Installation
Cap Led street light,outdoor led street light and led street light fixture can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc.

led-street-light-application
