Modular LED Flood Light

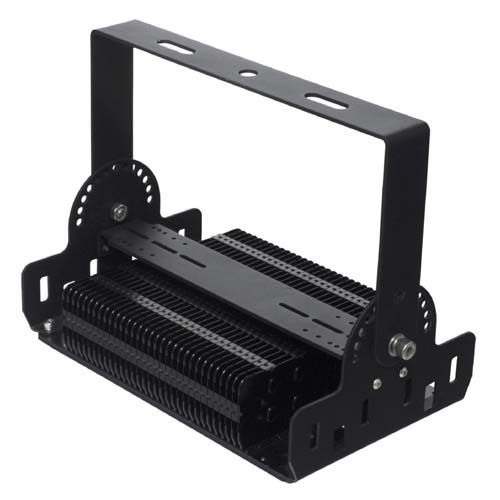

100W Modular Led Flood Light

Item No.: FG100W19
1. Design for widely used as flood light and tunnel light
2. Aluminum extrusive heat sink enhances thermal conductivity
3. Unique lens design enable excellent efficacy and uniformity
4. LUMILEDS 3030 Chips,High CRI,over 170lm/w
5. IP65 Waterproof
Description Product Dimension User Manual Application Cases

Led Flood Lights


Product Features:

1. Design for widely used as flood light and tunnel light;
2. Aluminum extrusive heat sink enhances thermal conductivity;
3. Unique optical lens design enable excellent efficacy and uniformity;
4. Flexible mounting hardware design suitable for various mounting;
5. Better CRI than HID, increasing visibility;
6. High quality LEDs and drivers are used;
7. Does not contain environmentally harmful mercury pollution, green; Energy saving;
8. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name                                                 Modular LED Flood Light 100W
Model FG100W19
Input Voltage                                     100-277VAC
Frequency                                         50/60 Hz
Power Consumption                                           100W
Power Factor                                          >0.95
Optical design                                   60°/90°/60°*150°
IP Rating                                           IP65
Operating Temperature                                    -25°C~+45°C
Storage Temperature                                    -25°C~+65°C
Relative Humidity                                       10%-90%
LED Lifetime                      > 80,000 hrs @ LM70,LM80
Safety Standards                                    CE&Rohs

B. Light Data
Model                                                                          FG100W19
Light Source                           LUMILEDS 3030 Chips
LED QTY                              128PCS/168PCS
Colour Temperature                                   2700~7000K
Luminous Flux                                      17000lm
Luminous Efficiency                             140lm/w or170lm/w
Colour Rendering Index                                      >80Ra

C. Packing Data
Model                                                                         FG100W19
Product Dimension                                 315*238*130mm
Pcs/CTN                                             1
Package Dimensions                                 340*250*160mm
Net weight                                         4.0KG
Gross weight                                        5.0KG

  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz´╝îPlease do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.

Installation and schematic:


LED flood light is widely used in the single building, the historical building exterior lighting, the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.
