UFO LED High Bay Light

You are here: Home > LED High Bay Light > UFO LED High Bay Light

Description Product Dimension User Manual Application Cases

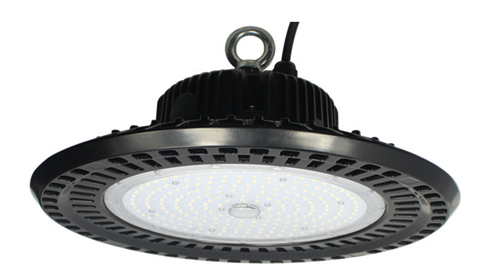

100w-480v-ufo-led-high-bay-light-1

Product Features:

Name: 100W UFO Led High Bay Light
Brand: Fanguang Lighting
SKU: GKD100W11
Availability: InStock
Rating: 5 (1 reviews)

1. European and American design style,high quality aluminum die casting;
2. Painting process,UFO shape design,never fade,cracking prevention;
3. Circulation cooling design,aluminum casting process;
4. Eliminating mist design,avoiding condensation,improving quality,extending lifespan;
5. SMD3030 led chips,high CRI,high light efficiency,brighter luminance;
6. Surge voltage resistance is up to 6000V,surge current up to 65A;
7. Also can match with smart control system like Dali,ZigBee;
8. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name	UFO LED High Bay Light 100W
Model	GKD100W11
Input Voltage	100-277VAC
Frequency	50/60 Hz
Power Consumption	100W
Power Factor	>0.95
Optical design	60°/90°/120°
IP Rating	IP65
Operating Temperature	-25°C~+45°C
Storage Temperature	-25°C~+65°C
Relative Humidity	10%-90%
LED Lifetime	> 80,000 hrs @ LM70,LM80
Safety Standards	CE&Rohs

B. Light Data

Model	GKD100W11
Light Source	Lumileds/Osram 3030 Chips
LED QTY	133PCS
Colour Temperature	2700~7000K
Luminous Flux	13000lm/15000lm
Luminous Efficiency	130lm/w or 150lm/w
Colour Rendering Index	>80Ra

C. Packing Data

Model	GKD100W11

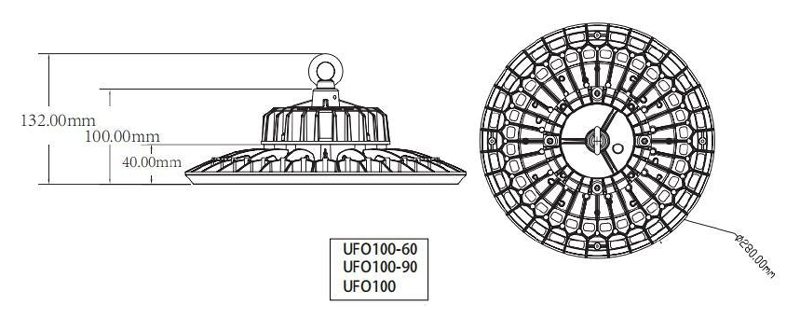

Product Dimension	Ø280*132mm
Pcs/CTN	1
Package Dimensions	330330170mm
Net weight	2.0KG
Gross weight	2.3KG

Be sure disconnect power before installing, don’t construction with electricity.
Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
Input product line, brown is “L”, blue is “N” , yellow-green is GND.
Be sure wiring is closed and prevent leakage, when installing.
The lamp can not be used in violation of any fire regulations.

300w-ufo-led-high-bay-light-wire-drawing

Installation and schematic:
ufo-led-bay-light-install-a

UFO Led High Bay Light is design for commercial or industrial lighting,led high bay lights widely used for the factory lighting,warehouse lighting,workshop lighting,station lighting,etc.

ufo-led-high-bay-light-applications
