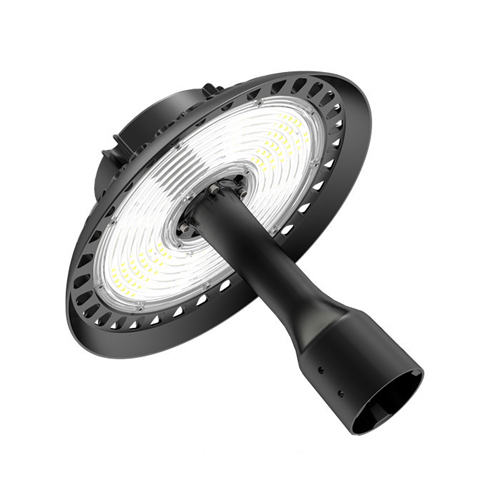

100W Led Post Top Light Fixture

Item No.: TY100W05
1. Free of dust and water, suitable for outdoor
2. It can withstand a level 17 hurricane
3. Die-cast aluminum housing for the heat dissipating
4. Smart lighting design,convenient for Photocell sensor,Dali, 0/1~10V dimmable
5. IP66 Waterproof, 5 Years
Request Quote
Description Product Dimension User Manual Application Cases


80w-led-post-top-light-1
80w-led-post-top-light-2
80w-led-post-top-light-3
80w-led-post-top-light-4
80w-led-post-top-light-5
80w-led-post-top-light-6
80w-led-post-top-light-7

Product Features:

1. All aluminum housing for the heat dissipating, greatly extends the lifespan of lighting source;
2. High pressure casting, procesed by painting, solid an corrosion resisting;
3. Ultraithin design, convenient for storage, transportation and maintenance
;
4. Free of dust and water, suitable for outdoor
;
5. It can withstand a level 17 hurricane;
6. Lumileds 3030 or 5050 as lights source, over 150lm/w output and 80~90Ra

7. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name                                                        100W LED Post Top Light
Model TY100W05
Input Voltage                                100-277VAC
Frequency                                    50/60 Hz
Power Consumption                                     100W
Power Factor                                    >0.95
Optical design                            60°/90°/120°/130°
IP Rating                                      IP66
Operating Temperature                              -25°C~+45°C
Storage Temperature                              -25°C~+65°C
Relative Humidity                                  10%-90%
LED Lifetime                      > 80,000 hrs @ LM70,LM80
Safety Standards                                   CE&Rohs

B. Light Data

Model                                                                                  TY100W05
Light Source                 LUMILEDS 3030 or 2835 Chips
LED QTY                                    160PCS
Colour Temperature                                 2700~7000K
Luminous Flux                                    15000lm
Luminous Efficiency                                    150lm/w
Colour Rendering Index                                     >80Ra

C. Packing Data

Model                                                                                 TY100W05
Product Dimension                                L290*H379mm
Pcs/CTN                                           1
Package Dimensions                                355*350*165mm
Net weight                                          3.0KG
Gross weight                                         3.6KG


  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
300w-ufo-led-high-bay-light-wire-drawing
Installation and schematic:
led-post-top-light-Installation
LED post top light fixtures are used as Street Lighting, Parking Lot Lighting, Security Lighting, Decorative Post-Top Lighting, Area Lighting, Walkway Lighting for Mobile Home Parks. In this post, we hope to demonstrate that commercial and industrial LED lighting can be decorative as well as functional.

led-post-top-light-application
