UFO LED High Bay Light

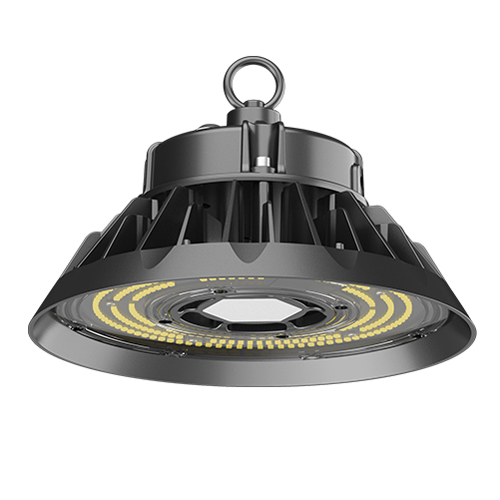

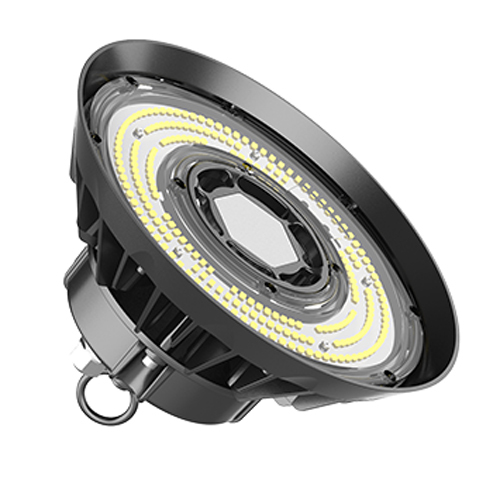

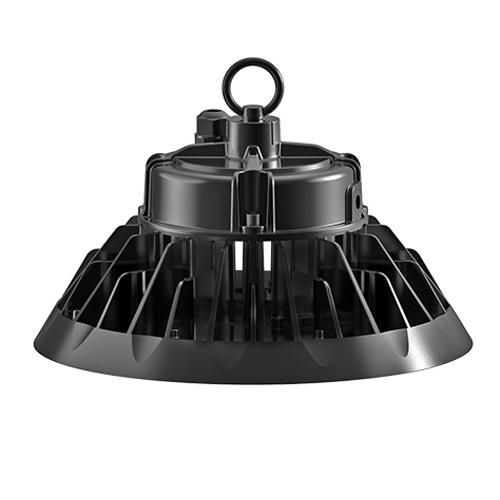

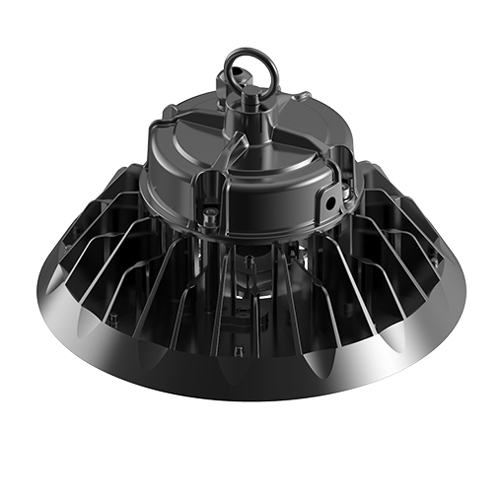

100W UFO Led High Bay Light

Item No.: GKD100W17
1. Unique UFO shape design,highest lumens led light
2. Circulation cooling design,aluminum casting process
3. Surge voltage and current protection
4. SMD2835 Chips,High CRI,over 200lm/w
5. IP66 Waterproof, 5 Years warranty
INQUIRY
Description Product Dimension User Manual Application Cases

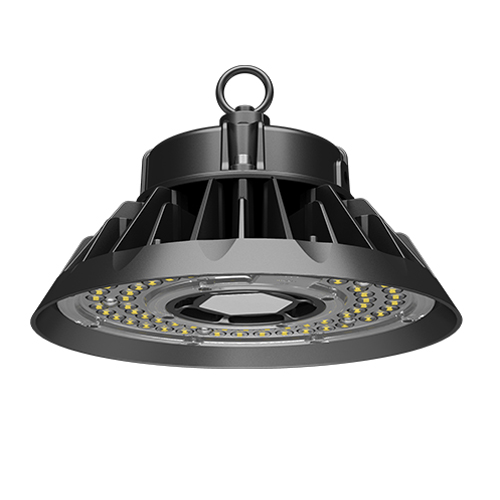

                                      100w-dimmable-ufo-led-high-bay-light-1
                                      100w-dimmable-ufo-led-high-bay-light-2

Product Features:

1. Hollow design, increases the industrial appearance, maximizes the heat dissipation area to achieve excellent thermal management;
2. Incorporates die-casting technology into the heat sink, ADC12 with 92% purity, thermal conductivity 96W/(m*k)@25℃
;
3. Smart lighting control options: PIR sensor, Microwave sensor, Zigbee etc.
;
4. Top LED brand chips and drivers, ensures product high luminous efficacy & longevity, OSRAM & Meanwell&Sosen
;
5. Optical lighting distributions: 60°, 90°,120°
;
6. High luminous efficacy: 150lm/W, 190lm/W
;
7. Ingress protection & impact protection rating: IP66 & IK10
;
8. Long Lifespan (up to 80,000 hours);


Product Specification:

A.General data

Product Name                                                 UFO LED High Bay Light 100W
Model GKD100W17
Input Voltage                                     100-277VAC
Frequency                                         50/60 Hz
Power Consumption                                           100W
Power Factor                                          >0.95
Optical design                                      60°/90°/120°
IP Rating                                           IP66
Operating Temperature                                    -25°C~+45°C
Storage Temperature                                    -25°C~+65°C
Relative Humidity                                       10%-90%
LED Lifetime                      > 80,000 hrs @ LM70,LM80
Safety Standards                                    CE&Rohs

B. Light Data

Model                                                                           GKD100W17
Light Source                         Osram/Lumileds 2835 Chips
LED QTY                                 210 or 480 PCS
Colour Temperature                                   2700~7000K
Luminous Flux                                15000lm/19000lm
Luminous Efficiency                              150lm/w or 190lm/w
Colour Rendering Index                                      >80Ra

C. Packing Data

Model                                                                         GKD100W17
Product Dimension                                    Ø247*163mm
Pcs/CTN                                             1
Package Dimensions                                 280*280*170mm
Net weight                                          2.2KG
Gross weight                                         2.7KG
dimmable-ufo-led-high-bay-light-size

  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
300w-ufo-led-high-bay-light-wire-drawing

Installation and schematic:

UFO-Led-High-Bay-Light-Installation

UFO Led High Bay Light is design for commercial led or warehouse lighting,led high bay lights widely used for the factory lighting,warehouse lighting,workshop lighting,lighting,etc.

ufo-led-high-bay-light-applications
