UFO LED High Bay Light

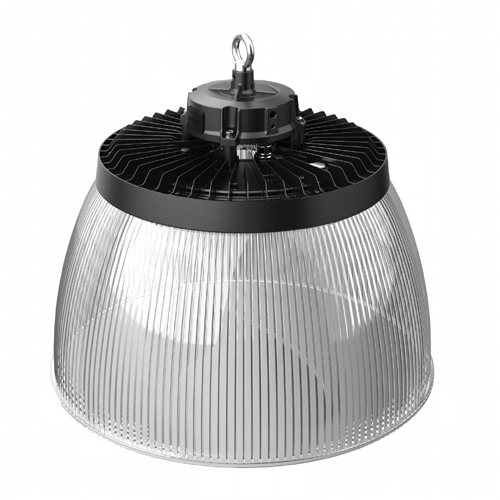

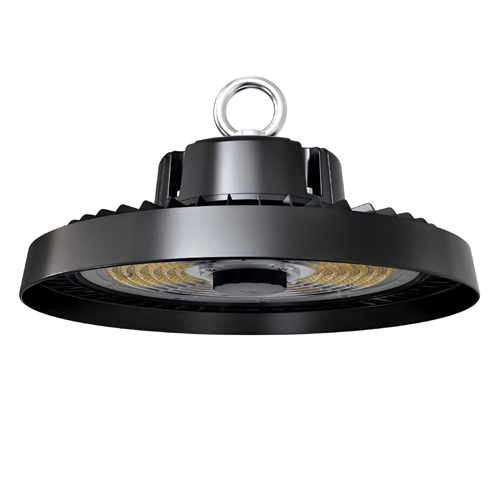

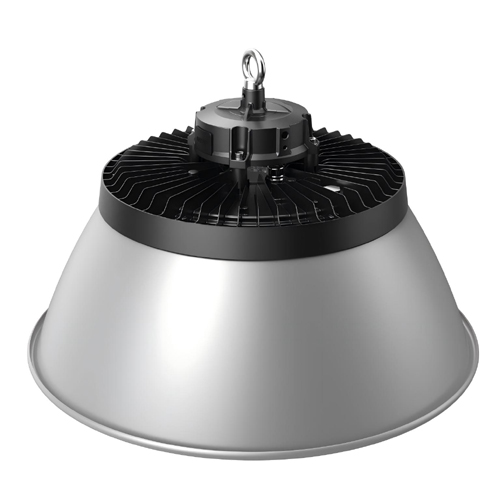

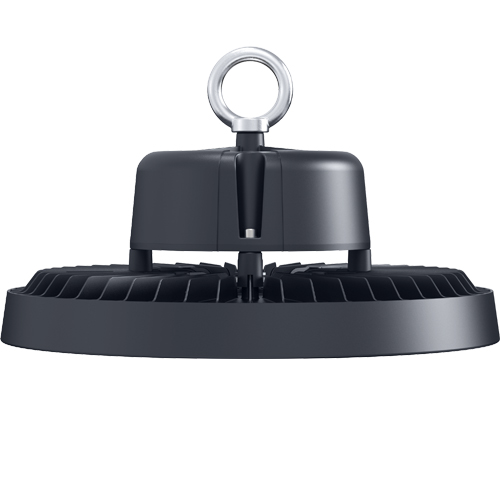

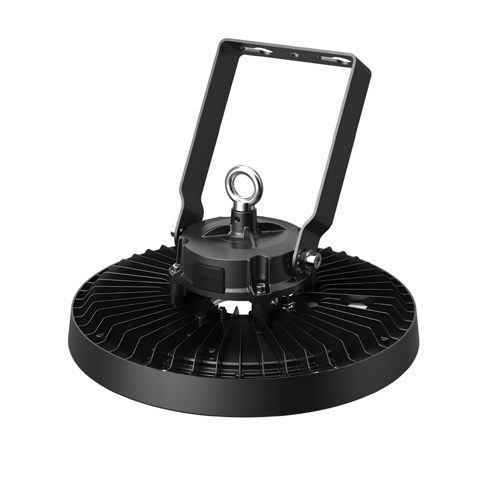

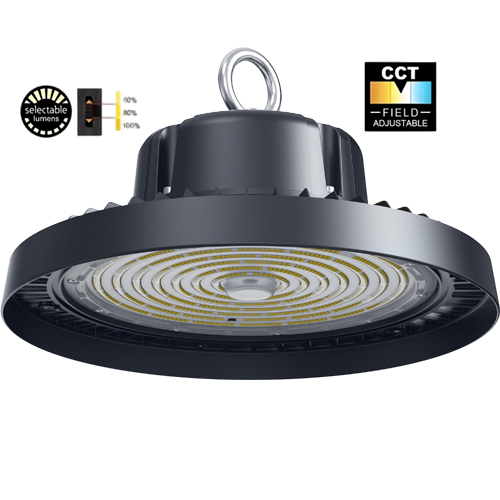

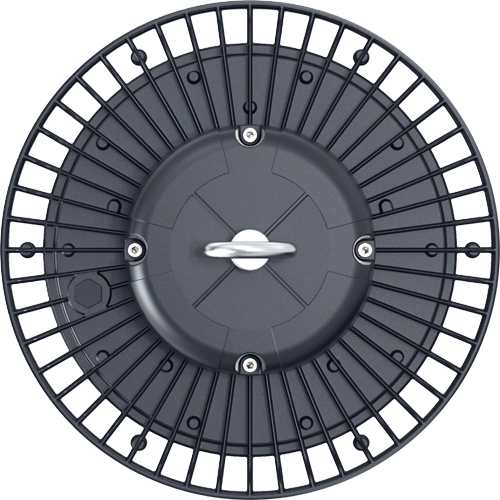

150W UFO Led High Bay Light

Item No.: GKD150W15
1. Unique UFO shape design,highest lumens led light

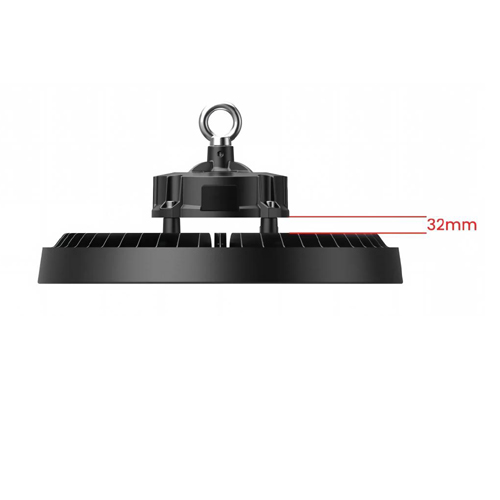

2. Circulation cooling design,aluminum casting process
3. Surge voltage and current protection
4. SMD2835 Chips,High CRI,over 200lm/w
5. IP66 Waterproof, 5 Years warranty
Request Quote
Description Product Dimension User Manual Application Cases

                             100w-ufo-led-high-bay-light-1
                             100w-ufo-led-high-bay-light-2

Product Features:

1. European and American design style,high quality aluminum die casting;
2. Painting process,UFO shape design,never fade,cracking prevention;
3. Circulation cooling design,aluminum casting process;
4. Eliminating mist design,avoiding condensation,improving quality,extending lifespan;

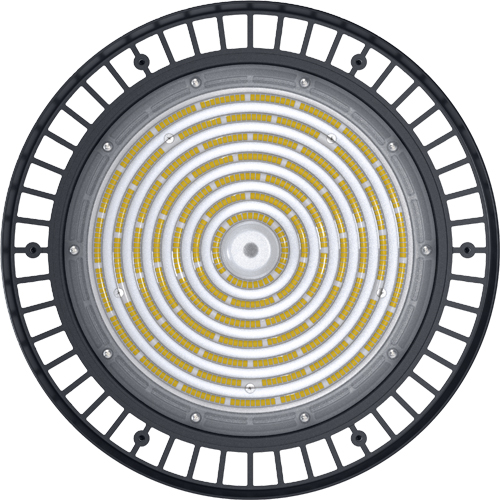

5. SMD2835 led chips,high CRI,high light efficiency,brighter luminance;
6. Surge voltage resistance is up to 6000V,surge current up to 65A;
7. Also can match with smart control system like Dali,ZigBee;
8. Long Lifespan (up to 80,000 hours);


Product Specification:

A.General data

Product Name                                                 UFO LED High Bay Light 150W
Model GKD150W15
Input Voltage                                     100-277VAC
Frequency                                         50/60 Hz
Power Consumption                                           150W
Power Factor                                          >0.95
Optical design                                      60°/90°/120°
IP Rating                                           IP66
Operating Temperature                                    -25°C~+45°C
Storage Temperature                                    -25°C~+65°C
Relative Humidity                                       10%-90%
LED Lifetime                      > 80,000 hrs @ LM70,LM80
Safety Standards                                    CE&Rohs

B. Light Data

Model                                                                           GKD150W15
Light Source                         Osram/Samsung 2835 Chips
LED QTY                                 300 or 735 PCS
Colour Temperature                                   2700~7000K
Luminous Flux                                22500lm/30000lm
Luminous Efficiency                              150lm/w or 200lm/w
Colour Rendering Index                                      >80Ra

C. Packing Data

Model                                                                         GKD150W15
Product Dimension                                    Ø315*168mm
Pcs/CTN                                             1
Package Dimensions                                 350*350*200mm
Net weight                                          3.5KG
Gross weight                                         3.8KG

150w-ufo-led-high-bay-light-size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
300w-ufo-led-high-bay-light-wire-drawing
Installation and schematic:
ufo-led-bay-light-install-a






















ufo-led-bay-light-install-b


UFO Led High Bay Light is design for commercial or industrial lighting,led ufo high bay lights widely used for the factory lighting,warehouse lighting,workshop lighting,lighting,etc.

ufo-led-high-bay-light-applications
