LED Shoebox Street Light

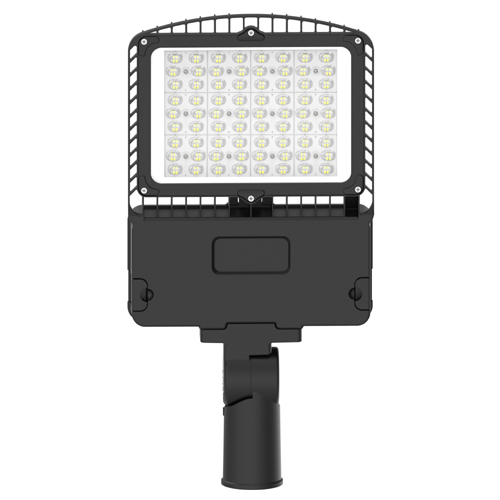

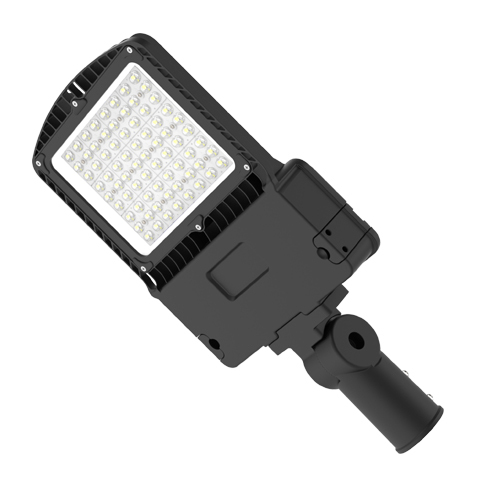

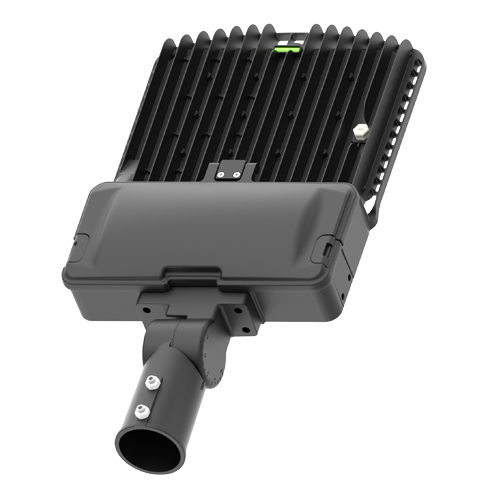

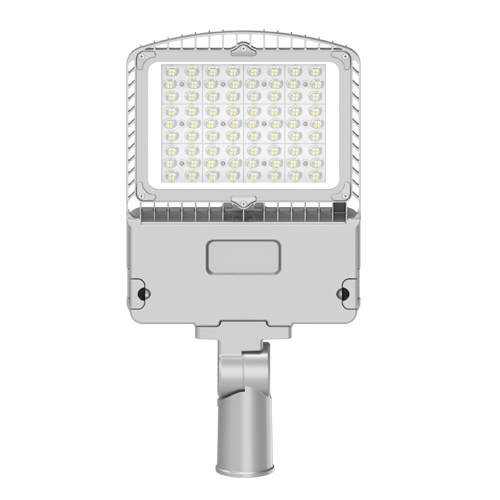

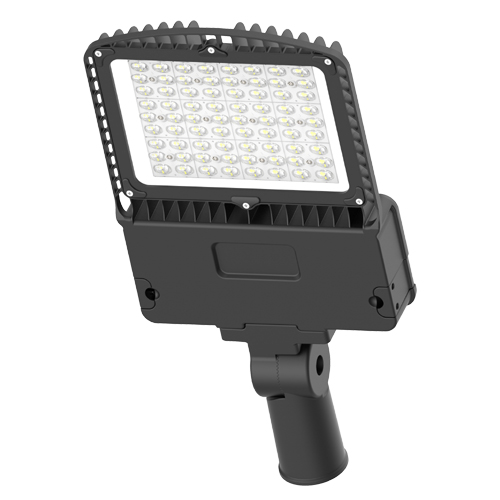

150W Led Parking Lot Light

Item No.: LD150W17
1. New shell and heat-sink system design
2. It can withstand a level 17 hurricane
3. Various installations,widely applications
4. Modular design,high reliability performance
5. IP66 Waterproof, 5 Years warranty
INQUIRY
Description Product Dimension User Manual Application Cases

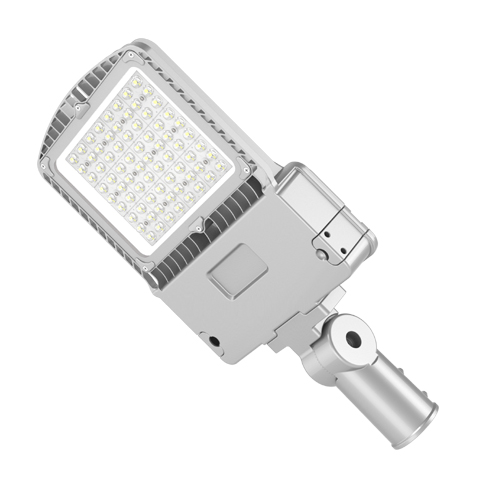

                              150w-led-parking-lot-light-1
                              150w-led-parking-lot-light-2
                             150w-led-parking-lot-light-3
                              150w-led-parking-lot-light-4

Product Features:

1. New shell and heat-sink system design,suit for led parking lot light;
2. Various installations,widely applications:led shoebox light,led area light;
3. Circulation cooling design,aluminum casting process;
4. With a protection grade reaching IP66;
5. It can withstand a level 17 hurricane;
6. Lumileds 3030 or 5050 as lights source, over 130lm/w output and 80~90Ra

7. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name                                                     LED Parking Lot Light 150W
Model   LD150W17
Input Voltage                                   100-277VAC
Frequency                                     50/60 Hz
Power Consumption                                      150W
Power Factor                                      >0.95
Optical design                              T2/T3/T4/60°/90°
IP Rating                                        IP66
Operating Temperature                                 -25°C~+45°C
Storage Temperature                                 -25°C~+65°C
Relative Humidity                                    10%-90%
LED Lifetime                      > 80,000 hrs @ LM70,LM80
Safety Standards                                    CE&Rohs

B. Light Data

Model                                                                                LD150W17
Light Source                 LUMILEDS 3030 or 5050 Chips
LED QTY                                    192PCS
Colour Temperature                                2700~7000K
Luminous Flux                                  19500lm
Luminous Efficiency                                  130lm/w
Colour Rendering Index                                   >80Ra

C. Packing Data

Model                                                                                LD150W17
Product Dimension                                 569*291*94mm
Pcs/CTN                                             1
Package Dimensions                                  620*350*150mm
Net weight                                          6.0KG
Gross weight                                         6.7KG

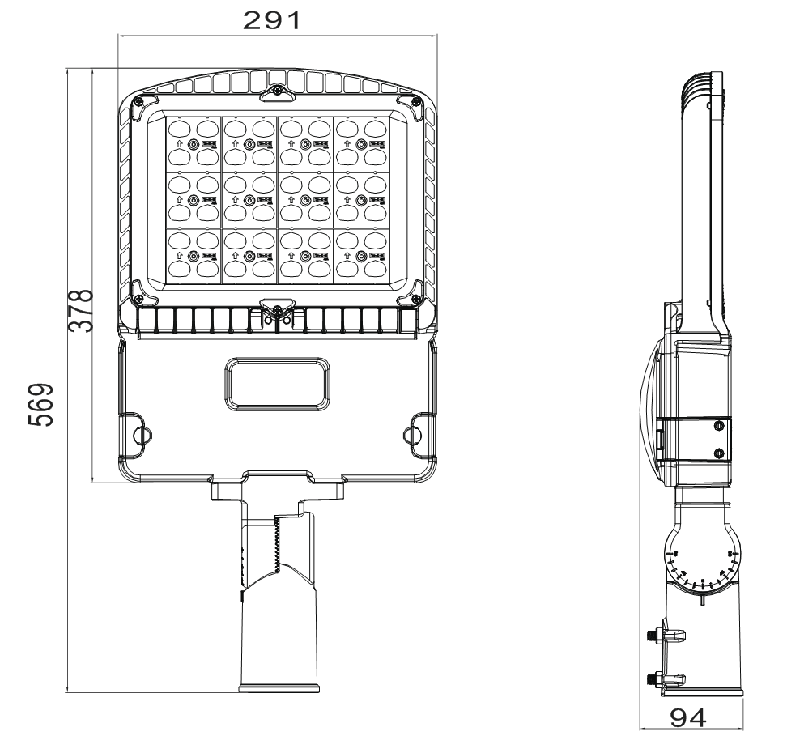

150w-led-parking-lot-light-size

  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz´╝îPlease do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
300w-ufo-led-high-bay-light-wire-drawing
Installation and schematic:
50w-led-parking-lot-light-installations
50w-led-parking-lot-light-installations-2
50w-led-parking-lot-light-installations-3
Led parking lot light,led shoebox light and led area light can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc.

led-shoebox-light-applications
