UFO LED High Bay Light

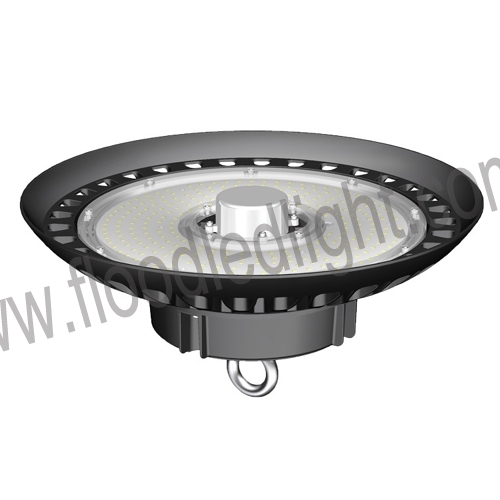

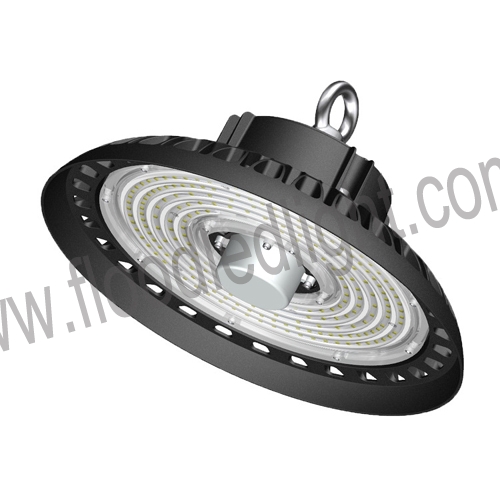

150W Motion Sensor UFO Led High Bay Light

Item No.: GKD150W14
1. Innovative Anti glare design,compare with common UFO led high bay light
2. Circulation cooling design,aluminum casting process
3. Surge voltage and current protection
4. SMD2835 Chips,High CRI,over 200lm/w
5. IP65 Waterproof, 5 Years warranty
Request Quote
Description Product Dimension User Manual Application Cases

                              150w-motion-sensor-ufo-led-high-bay-light-1
                              150w-motion-sensor-ufo-led-high-bay-light-2

Product Features:

1. Innovative anti-glare led high bay light design,high quality and high lumens;
2. Painting process,UFO shape design,never fade,cracking prevention;
3. Circulation cooling design,aluminum casting process;
4. Eliminating mist design,avoiding condensation,improving quality,extending lifespan;
5. SMD2835 led chips,high CRI,high light efficiency,brighter luminance;
6. Surge voltage resistance is up to 6000V,surge current up to 65A;
7. Also can match with smart control system like Dali,ZigBee;
8. Long Lifespan (up to 80,000 hours);


Product Specification:

A.General data

Product Name                                                  Motion Sensor UFO LED High Bay Light 150W
Model          GKD150W14
Input Voltage                                           100-277VAC
Frequency                                             50/60 Hz
Power Consumption                                              150W
Power Factor                                              >0.95
Optical design                                        60°/90°/130°
IP Rating                                              IP65
Operating Temperature                                      -25°C~+45°C
Storage Temperature                                      -25°C~+65°C
Relative Humidity                                         10%-90%
LED Lifetime                          > 80,000 hrs @ LM70,LM80
Safety Standards                                         CE&Rohs

B. Light Data

Model                                                                              GKD150W14
Light Source                                 OSRAM 2835 Chips
LED QTY                                         325PCS
Colour Temperature                                       2700~7000K
Luminous Flux                                       22500lm
Luminous Efficiency                                        150lm/w
Colour Rendering Index                                        >80Ra

C. Packing Data

Model                                                                       GKD150W14
Product Dimension                                  Ø340*181mm
Pcs/CTN                                            1
Package Dimensions                                 410*410*180mm
Net weight                                         3.0KG
Gross weight                                        3.6KG
150w-motion-sensor-ufo-led-high-bay-light-size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
300w-ufo-led-high-bay-light-wire-drawing
Installation and schematic:
ufo-led-bay-light-install-a






















ufo-led-bay-light-install-b


Motion Sensor UFO Led High Bay Light is design for commercial or industrial lighting,also industrial led pendant light fixtures are widely used for the factory lighting,warehouse lighting,workshop lighting,station lighting,etc.

ufo-led-high-bay-light-applications
