15W Solar RGB Flood Light

Item No.: N500N
1. Excellent heat sink with 1070 Aluminum
2. Installed outdoor without electric power

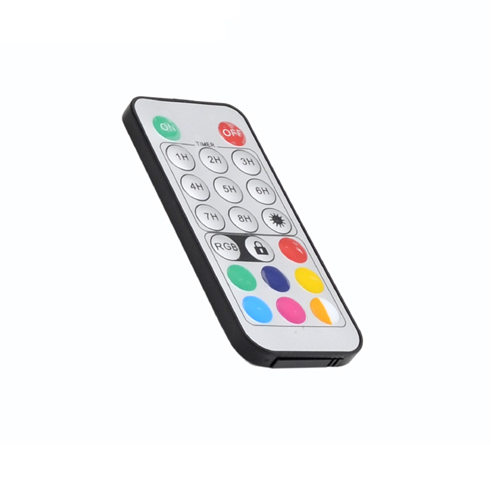

3. Light sensor+Remote control mode
4. Suitable lighting area 30~50 s.q.m
5. IP65 Waterproof
Description Product Details User Manual Application Cases


Product Features:

1. Material adopt airport alloy material ,heat dissipation,long lifespane import polysillicon solar panel. proved effecite electri,stainless steel screw parts,Lamp lifespane to 15 years;
2. Easy installed,the solar panel direct connect lamp;
3. Wirless,installed outdoor work ,battery lifespan about 2-3 year for recharge.Don't need change battery every time;
4. The material is recycle ,solar power charged ,no pulltion.protect environment;
5. Long work time ,Charged full power ,work one night;
By heat dissipation design to circulation heat faster,avoid hurt batery,and improve battery lifespane;
7. Smart auto swich,extend lifespan of battery and work time;
8. Application:Community ,Square,Park,school,garden ,villa ,hotel ,hostapil,Factory ,street light of village and exit outdoor lamp;

Product Specification:

A.General data

Product Name Solar RGB Flood Light 15W
Model  N500N
Solar Led Panel   Polysillicon 6V*6w
Battery Lithium battery 3.7V*4000mAh
Illumination Time RGB light >12 Hours
Charger Time more 6 hours
Lighting Scope  30-50 s.q.m.
IP Rating IP65
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 50,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data
Model                                      N500N
Light Source       Epistar 5050 Chips
Light Colour   RGB
RGB Color     7 Type
Remote Distance      >12 meter
Colour Rendering Index    >80Ra

C. Packing Data
Model                       N500N
Product Dimension           180*140*40mm
Pcs/CTN            8
Package Dimensions              420*315*435mm
Net weight           15.2KG
Gross weight          16.0KG

  • The lamp connect solar panel into auot lighting controller condtion .motion sensor
    without solar panel also can operation.
  • First time use the lamp ,turn on the lamp,it will brights little time to open the smart circuit.then into lighting controller state.
  • During the day .the lamp auto turn off ,and solar panel abosrt power stock electrical into the night ,it auto turn on .someone around the lamp auto into brighter,keep 30
    second after people left,and into weak light.
Installation and schematic:

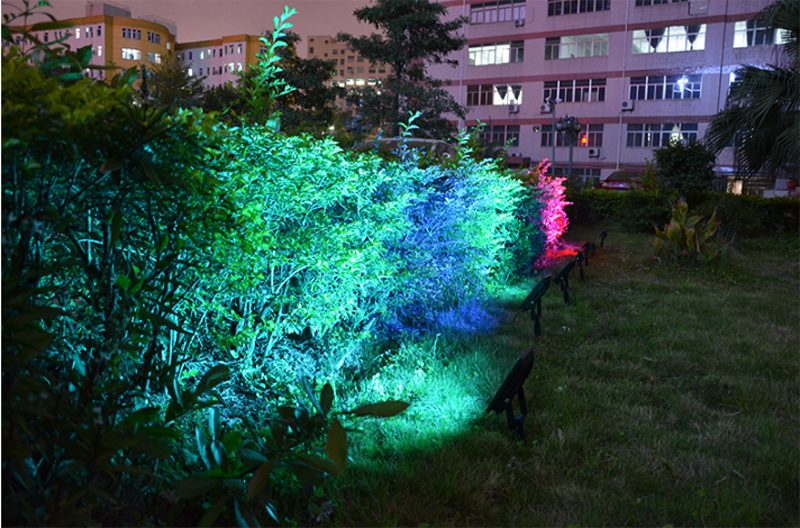

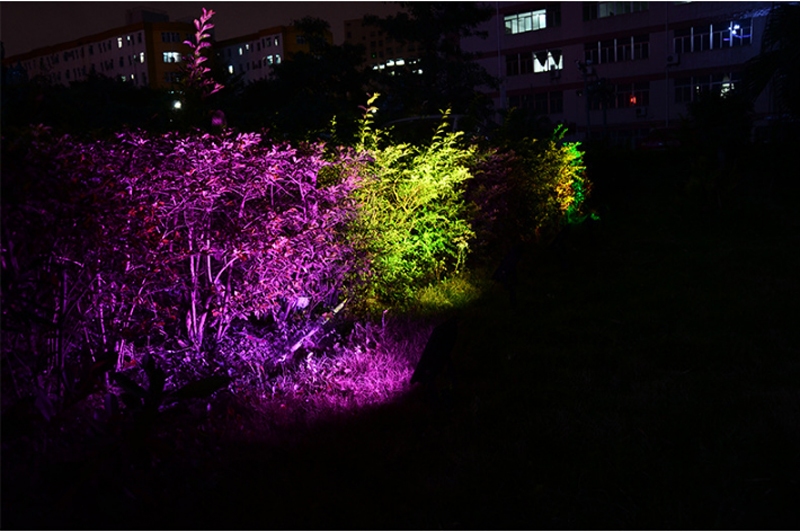

Solar Led Flood Light is widely used in Community ,Square,Park,school,garden,villa ,hotel ,hostapil,Factory,street light of village and exct outdoor lamp.
