High Mast LED Flood Light

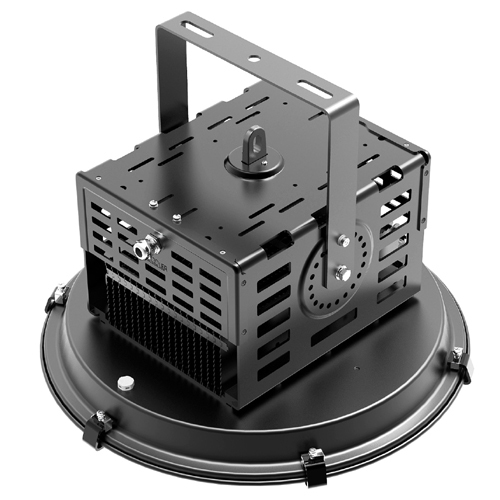

250W High Power Led Flood Light

Item No.: FG250W05
1. Excellent heat sink with Copper pipe design
2. 5°/10°/20°/30°/60° beam angle for choice
3. 17 settings on the bracket,288 degree adjust angle
4. Cree Led Chips,High CRI,over 130lm/w
5. IP65 Waterproof,5 Years warranty
Request Quote
Description Product Dimension User Manual Application Cases


                         250w-high-power-led-flood-light-1
                         250w-high-power-led-flood-light-2

Product Features:

1. Excellent heat sink with internal Copper pipe design;
2. 5°/10°/20°/30°/60° beam angle for choice.light trans-mittance can reach up to 92%;
3. Cree Led Chips,cost effective compared with COB solution;
4. Copper pipe connected with zipped fins heat sink.High thermal efficiency and rapid cooling;
5. 17 settings on the bracket.288 degree adjust angle;
6. Pure aluminum reflector intergrated with Silicone ring and tempered glass cover,waterproof,anti-fog and anti-frost;
7. Long Lifespan (up to 80,000 hours);


Product Specification:

A.General data

Product Name High Power LED Flood Light 250W
Model  FG250W05
Input Voltage  100-277VAC
Frequency  50/60 Hz
Power Consumption 250W
Power Factor >0.95
Optical design  5°/10°/20°/30°/60°
IP Rating IP65
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data

Model                           FG250W05
Light Source           CREE XTE Chips
LED QTY         84PCS
Colour Temperature           2700~6000K
Luminous Flux         32500lm
Luminous Efficiency          130lm/w
Colour Rendering Index          >80Ra

C. Packing Data

Model                                                    FG250W05
Product Dimension            Ø472*H361mm
Pcs/CTN            1
Package Dimensions              565*565*350mm
Net weight           9.2KG
Gross weight          11.5KG


250w-high-power-led-flood-light-size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
600-high-mast-led-flood-light-wire-drawing

Installation and schematic:

250w-high-power-led-flood-light-install
High Power Led Flood Light is widely used in sport field lighting, football field, baseball field, Olympic stadium , large square lighting, airport, port dock lighting and any outdoor industrial lighting cases.

250w-high-power-led-flood-light-outdoor
