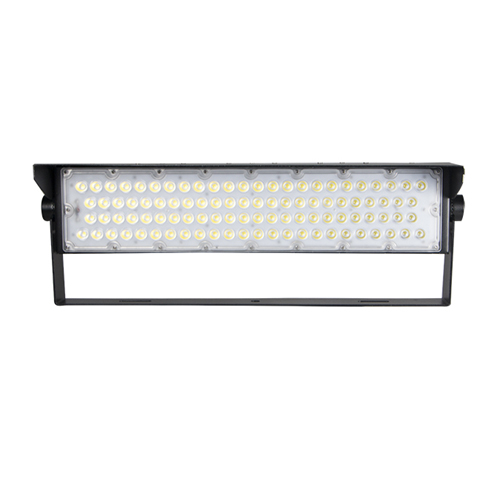

High Mast LED Flood Light

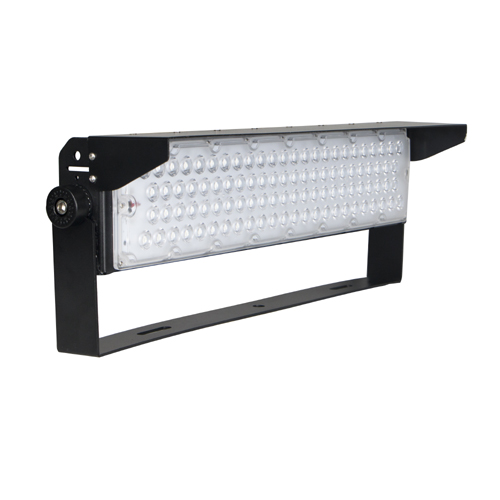

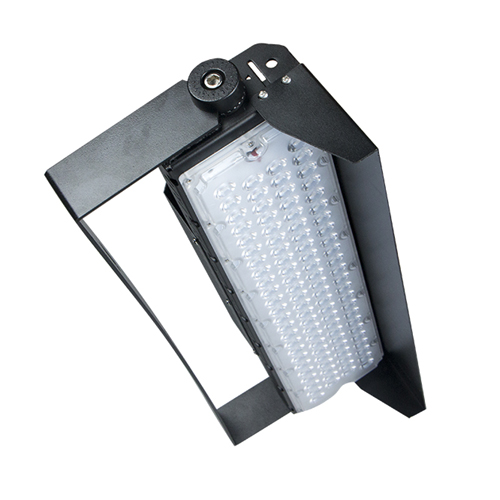

250W Led High Mast Flood Light

Item No.: FG250W10
1. Excellent heat sink with Cold forging design
2. 10°/20°/40°/60°/P50° various beam angle for choice
3. No UV or RF interference, No mercury or lead
4. LUMILEDS 5050 Chips,High CRI,over 150lm/w
5. IP66 Waterproof,IK10, 5 Years warranty
Description Product Dimension User Manual Application Cases


Product Features:

1. High Power, high lumen, high quality
2. Save 80% more energy compared with traditional lighting fixtures
3. Easy to install and use, secure and reliable
4. No UV or RF interference, No mercury or lead
Three-dimensional rotating bracket, the installation angle is more flexible
6. High quality, high efficiency, high CRI & luminous flux,
7. long life span>80000hrs
8. High brightness, low consumption, green for environment
9. Various lens,10°/20°/40°/60°/P50° for your widely beam angle choice
10. Meanwell led driver to ensure stability of light, it can work efficiently
11. AC100-277V in different countries and regions.other led driver is also available
12. Potection grade is IP66,IK10

Product Specification:

A.General data

Product Name                 LED Stadium Light 250W
Model FG250W10
Input Voltage  100-277VAC
Frequency  50/60 Hz
Power Consumption 250W
Power Factor >0.95
Optical design  10°/20°/40°/60°/P50°
IP Rating IP66
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data
Model                                                                            FG250W10
Light Source LUMILEDS 5050 Chips
Colour Temperature  2700~6000K
Luminous Flux 37500lm
Luminous Efficiency 150lm/w
Colour Rendering Index >80Ra

C. Packing Data
Model                                                                          FG250W10
Product Dimension L590*W200*H190mm
Pcs/CTN  1
Package Dimensions    645*255*240mm
Net weight    4KG
Gross weight   5KG

250w led flood light size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.

Installation and schematic:
LED High Mast Light,Led High Mast Flood Light is widely used in sport field lighting, football field, baseball field, Olympic stadium, large square lighting, airport, port dock lighting and any outdoor industrial lighting cases.

led high mast light application
high mast led flood light application
