High Mast LED Flood Light

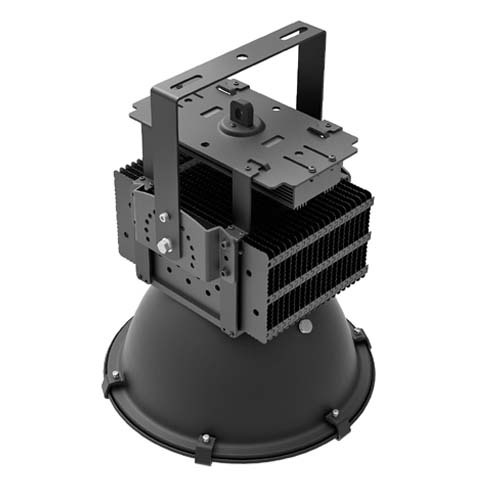

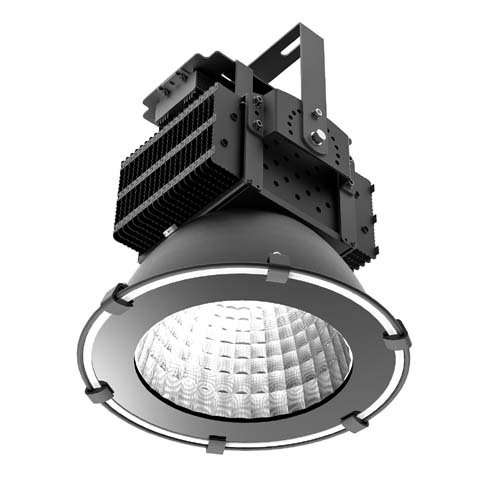

300W High Mast Led Flood Light

Item No.: FG300W04
1. Excellent heat sink with Copper pipe design
2. 25°/60°/90° beam angle for choice
3. 17 settings on the bracket,288 degree adjust angle
4. LUMILEDS 3030 Chips,High CRI,over 120lm/w
5. IP65 Waterproof,5 Years warranty
Description Product Dimension User Manual Application Cases


Product Features:

1. Excellent heat sink with internal Copper pipe design;
2. 25°/60°/90°beam angle for choice.light trans-mittance can reach up to 92%;
3. LUMILEDS 3030 Chips,cost effective compared with COB solution;
4. Copper pipe connected with zipped fins heat sink.High thermal efficiency and rapid cooling;
5. 17 settings on the bracket.288 degree adjust angle;
6. Pure aluminum reflector intergrated with Silicone ring and tempered glass cover,waterproof,anti-fog and anti-frost;
7. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name High Mast LED Flood Light 300W
Model  FG300W04
Input Voltage  100-277VAC
Frequency  50/60 Hz
Power Consumption 300W
Power Factor >0.95
Optical design 25°/60°/90°
IP Rating IP65
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data
Model                         FG300W04
Light Source           LUMILEDS 3030 Chips
LED QTY         300PCS
Colour Temperature           2700~6000K
Luminous Flux         36000lm
Luminous Efficiency          120lm/w
Colour Rendering Index          >80Ra

C. Packing Data
Model                                                   FG300W04
Product Dimension            Ø374*H459mm
Pcs/CTN            1
Package Dimensions              480*480*590mm
Net weight          9KG
Gross weight          11KG
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.

Installation and schematic:

High Mast Led Flood Light is widely used in sport field lighting, football field, baseball field, Olympic stadium , large square lighting, airport, port dock lighting and any outdoor industrial lighting cases.
