LED High Bay Light Fixture

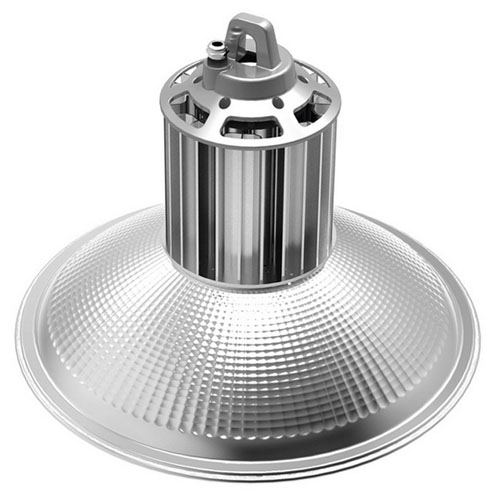

300W Led High Bay Light
300W Led High Bay Light 300W Led High Bay Light

300W Led High Bay Light

Item No.: GKD300W06
1. Excellent heat sink with Copper pipe design
2. 45°/60°/90°/120° reflector for option
3. Surge voltage and current protection
4. SMD3030 Chips,High CRI,over 120lm/w
5. IP54, 5 Years warranty
INQUIRY
Description Product Dimension User Manual Application Cases



                             led-high-bay-light-fixture
                              300w-led-high-bay-light-fixture

Product Features:

1. Pure copper pipe quickly transfer heat to heatsink;
2. Heat transfer rate over 200 times of the common aluminum radiator;
3. Different reflector sizes,45°/60°/90°/120° reflector for option;
4. Four easy installation methods;
5. SMD3030 led chips,high CRI,high light efficiency,brighter luminance;
6. Surge voltage resistance is up to 6000V,surge current up to 65A;
7. Also can match with smart control system like Dali,ZigBee;
8. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name                                                  LED High Bay Light Fixture 300W
Model GKD300W06
Input Voltage                                     100-277VAC
Frequency                                         50/60 Hz
Power Consumption                                           300W
Power Factor                                          >0.95
Optical design                                   45°/60°/90°/120°
IP Rating                                           IP54
Operating Temperature                                    -25°C~+45°C
Storage Temperature                                    -25°C~+65°C
Relative Humidity                                       10%-90%
LED Lifetime                      > 80,000 hrs @ LM70,LM80
Safety Standards                                    CE&Rohs

B. Light Data

Model                                                                    GKD300W06
Light Source                           LUMILEDS 3030 Chips
LED QTY                                     300PCS
Colour Temperature                                   2700~7000K
Luminous Flux                                     36000lm
Luminous Efficiency                                     120lm/w
Colour Rendering Index                                      >80Ra

C. Packing Data

Model                                                                GKD300W06
Product Dimension(Radiator)                                  Ø284*260mm
Pcs/CTN                                             1
Package Dimensions                                 300*300*460mm
Net weight                                          8KG
Gross weight                                        8.5KG
300w-led-high-bay-light-size

  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
300w-led-high-bay-light-fixture-wire-drawing
Installation and schematic:
led-high-bay-light-reflector-size


























led-high-bay-light-installations

Led High Bay Light Fixture is design for commercial or industrial lighting, widely used for the factory lighting,warehouse lighting,workshop lighting,station lighting,etc.

led-high-bay-light-applications
