Modular LED Street Light

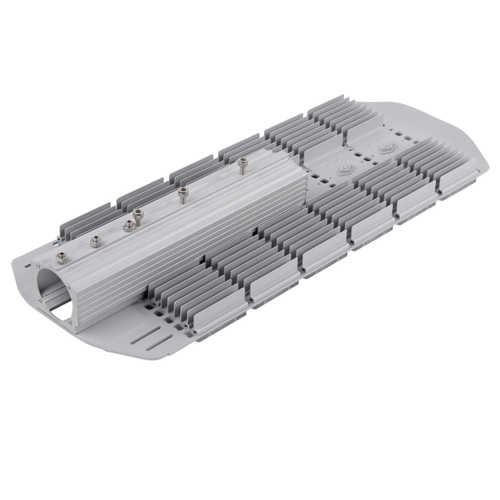

300W Modular Led Street Light

Item No.: LD300W14
1. The new generation Led Street lamp suite
2. It can withstand a level 17 hurricane
3. Easy to install,boasting a higher cost performance
4. LUMILEDS 3030 Chips,High CRI,over 120lm/w
5. IP65 Waterproof, 5 Years warranty
Request Quote
Description Product Dimension User Manual Application Cases

street light
                               300w-modular-led-street-light-1
                               300w-modular-led-street-light-2

Product Features:

1. The new generation Led Street lamp suite;
2. Easy to install,boasting a higher cost performance;
3. With the light pole's back over:Dia 60mm;
4. With a protection grade reaching IP65;
5. It can withstand a level 17 hurricane;
6. Lumileds 3030 as lights source, over 120lm/w output and 80~90Ra;
7. Long Lifespan (up to 80,000 hours);


Product Specification:

A.General data

Product Name                         Modular LED Street Light 300W
Model  LD300W14
Input Voltage  100-277VAC
Frequency  50/60 Hz
Power Consumption  300W
Power Factor >0.95
Optical design 60°/30°/80*155°
IP Rating IP65
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data

Model                                                                LD300W14
Light Source           LUMILEDS 3030 Chips
LED QTY         336PCS
Colour Temperature           2700~7000K
Luminous Flux         36000lm
Luminous Efficiency          120lm/w
Colour Rendering Index          >80Ra

C. Packing Data

Model                                                     LD300W14
Product Dimension            690*285*100mm
Pcs/CTN            1
Package Dimensions              720*300*145mm
Net weight          6.1KG
Gross weight          6.7KG


300w-modular-led-street-light-size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
200w-modular-led-street-light-wire-drawing

Installation and schematic:

200w-modular-led-street-light-installations
Modular Led Street Light is widely used in all kinds of road lighting:express way,Trunk Road and Welcome Road,main roads to government agencies and large public buildings,road of downtown and Business center secondary main road, branch,residential roads and sidewalk,also can be used in general building,square,goods yard,and scenic spot.

modular-led-street-light-applications
