Slim LED Flood Light

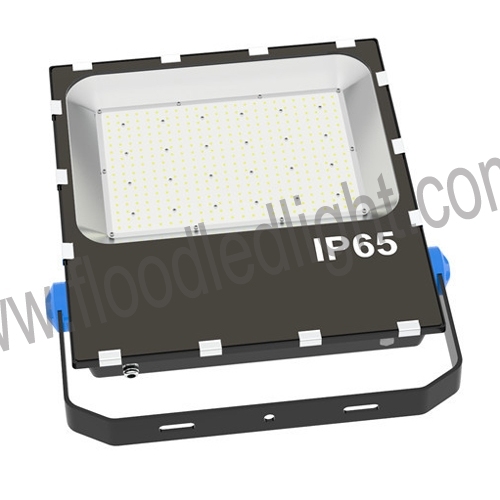

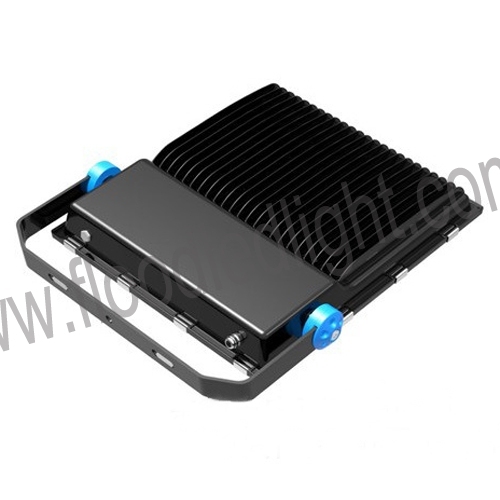

300W Slim Led Flood Light
300W Slim Led Flood Light 300W Slim Led Flood Light 300W Slim Led Flood Light 300W Slim Led Flood Light 300W Slim Led Flood Light

300W Slim Led Flood Light

Item No.: FG300W14
1. Innovative G-type buckle technology
2. Ultra-thin sleek design, fashionable and classical
3. The third generation of flood light heat sink
4. LUMILEDS 3030 Chips,High CRI,over 130lm/w
5. IP65 Waterproof,3/5 Years warranty
INQUIRY
Description Product Dimension User Manual Application Cases

Led Flood Lights







                        300w-slim-led-flood-light-1
                           300w-slim-led-flood-light-2

Product Features:

1.Integrated reflector and entire aluminum lamp cooling structure;
2.Ultra-thin sleek design, fashionable and classical
3.Innovative G-type buckle technology, guard against glass falling off, easy to install;
4.High-brightness SMD LED (luminous flux maintenance factor of 95%), long life, high CRI, pure color;
5.Choose stable performance constant current source (fast start, no flicker, no noise);
6.IP65 Waterproof;
7.Does not contain environmentally harmful mercury pollution, green; Energy saving (power consumption is 80% compared with traditional Spotlights);
8.Long Lifespan (up to 80,000 hours);

Product Specification:
A. General data
Name Slim LED Flood Light 10W-500W
Model FG300W14
Input Voltage 100-277VAC
Frequency 50/60 Hz
Power Consumption 300W
Power Factor >0.95
Beam Angle 120°/30°/60°/90°/70*150°
IP Rating IP65
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

Model FG300W14
Input Voltage 100-277VAC
Frequency 50/60 Hz
Power Consumption 300W
Power Factor >0.95
Beam Angle 120°/30°/60°/90°/70*150°
IP Rating IP65
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data
Model FG300W14
Light Source Philips 3030 Led Chips
LED QTY 384PCS
Colour Temperature 2700-7000K
Luminous Flux 39000 lm
Luminous Efficiency 130 lm/W
Colour Rendering Index >80Ra

C. Packing Data
Model FG300W14
Product Dimension 457*565*65 mm
Pcs/CTN 1
Package Dimensions 530*365*255mm
Net weight/pcs 9.0KG
Gross weight/pcs 11.0KG

300w-slim-led-flood-light-size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
200w-slim-ledl-flood-light-wire-drawing












Installation and schematic:

200w-slim-led-flood-light-install



Slim LED flood light is widely used in the single building, the historical building exterior lighting, also Led flood light used in the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.

slim-led-flood-light-applications
