Linear Led High Bay Light

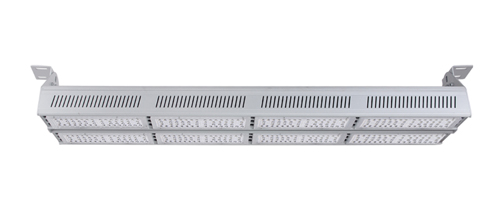

400W Linear Led High Bay Light

Item No.: GKD400W08
1. Excellent surface treatment process,widely applications
2. Unique heat sink design,aluminum casting process
3. Surge voltage and current protection
4. SMD3030 or SMD5050 Chips,High CRI,over 130lm/w
5. IP65 Waterproof, 5 Years warranty
Description Product Dimension User Manual Application Cases


Product Features:

1. Taking 3030 or 5050 chips as light souce,small light decay,pure light color and no ghosting;
2. Independant intergrated driver design,reduce the lamp volume and weight;
3. Unique heat sink design,reducing the lamp body temperature,increasing lamp life time;
4. Anodized and anticorrosive
process,waterproof, dustproof and good performance;
5. Energy-saving effect is obvious, compared with sodium lamps can save more than 70%
6. Surge voltage resistance is up to 6000V,surge current up to 65A;
7. Also can match with smart control system like Dali,ZigBee;
8. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name                                                 Linear LED High Bay Light 400W
Model GKD400W08
Input Voltage                                     100-277VAC
Frequency                                         50/60 Hz
Power Consumption                                           400W
Power Factor                                          >0.95
Optical design                              30°/60°/90°/80°*155°
IP Rating                                           IP65
Operating Temperature                                    -25°C~+45°C
Storage Temperature                                    -25°C~+65°C
Relative Humidity                                       10%-90%
LED Lifetime                      > 80,000 hrs @ LM70,LM80
Safety Standards                                    CE&Rohs

B. Light Data
Model                                                                          GKD400W08
Light Source                      LUMILEDS 3030 or 5050 Chips
LED QTY                                       448PCS
Colour Temperature                                   2700~7000K
Luminous Flux                                      52000lm
Luminous Efficiency                                      130lm/w
Colour Rendering Index                                       >80Ra

C. Packing Data
Model                                                                        GKD400W08
Product Dimension                                  1214*230*173mm
Pcs/CTN                                             1
Package Dimensions                                     1190*280*220mm
Net weight                                         11.0KG
Gross weight                                        12.3KG

  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz´╝îPlease do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.

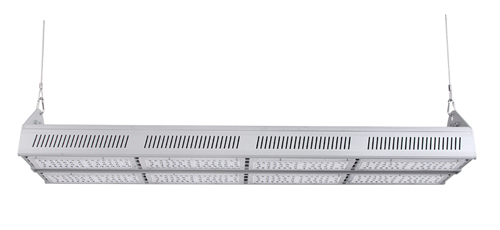

Installation and schematic:

Linear Led High Bay Light is design for commercial or industrial lighting,led high bay light widely used for the factory lighting,warehouse lighting,workshop lighting,station lighting,etc.
