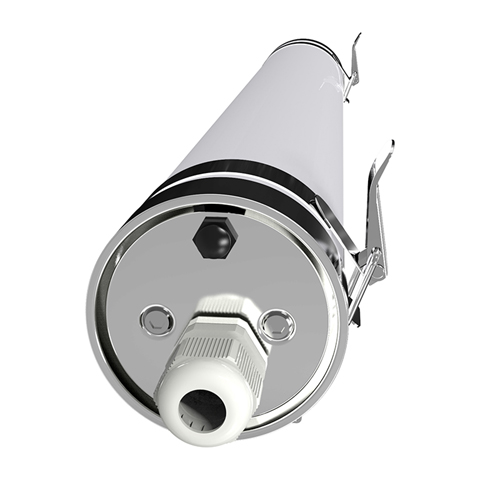

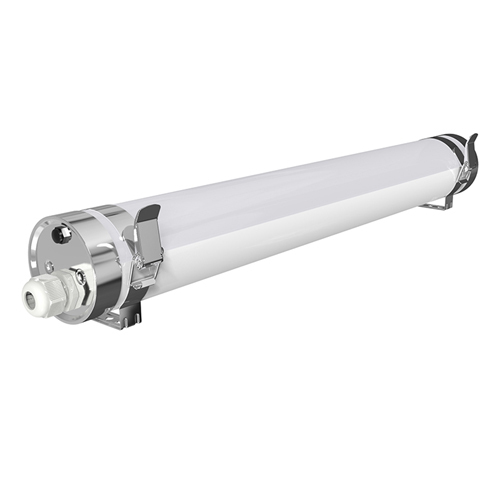

40W IP69K Led Tri Proof Light

Item No.: SFD40W08
1. Dustproof, Corrosion-proof, Pressure-proof, and Vibration proof
2. High Output LEDs, up to 130lm/W, 150lm/W optional
3.  IP67 waterproof, IK10 impact design
4. Environmentally friendly, no mercury, No UV, No IR
5. 5 Year Warranty on complete fixtur
INQUIRY
Description Product Dimension User Manual Application Cases

led-tri proof-light-manufacturer
ip69k led tri-proof light-1
ip69k led tri-proof light-2
ip69k led tri-proof light-3


Product Features:

• High Output LED’s, up to 130lm/W, 150lm/W optional
• High CRI >80
• IK10 impact design
• High Transmittance PC cover, no shadow
• Flicker-Free driver, High PF>0.96 low THD 12% driver
• Environmentally friendly, no mercury, No UV, No IR
• Through wiring 5×2.5mm² Linkable
• IP66 waterproof, dustproof, corrosion-proof, pressure-proof, and vibration proof
• Energy Efficiency Grade: A+
• Quick Start instant 100% luminous flux
• 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
• Certificate: CE, RoHS, ENEC
• Optional: 1-10V Dimming, 3 steps dimming microwave sensor, 3 hours 30% Emergency Battery Backup
• Installation: Hanging Mount & Surface Mount


Product Specification:

A.General data

Product Name                                                   IP69K LED Tri Proof Light 40W
Model SFD40W08
Input Voltage                                100-277VAC
Frequency                                    50/60 Hz
Power Consumption                                     40W
Power Factor                                    >0.95
Optical design                                      120°
IP Rating                                      IP65
Operating Temperature                              -25°C~+45°C
Storage Temperature                              -25°C~+65°C
Relative Humidity                                  10%-90%
LED Lifetime                      > 50,000 hrs @ LM70,LM80
Safety Standards                                   CE&Rohs

B. Light Data

Model                                                                               SFD40W08
Light Source                              SMD2835 Chips
LED QTY                                    240PCS
Colour Temperature                                 2700~7000K
Luminous Flux                                    5200lm
Luminous Efficiency                           130lm/w or150lm/w
Colour Rendering Index                                     >80Ra

C. Packing Data

Model                                                                                 SFD40W08
Product Dimension                                  L1200*Ø75mm
Pcs/CTN                                           9
Package Dimensions                                 1290*270*270mm
Net weight                                          20.0KG
Gross weight                                         22.0KG
led tri proof  light size

  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz´╝îPlease do not exceed the working voltage range.

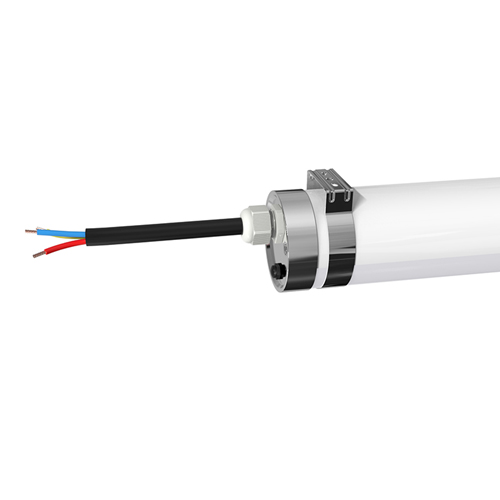

  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
300w-ufo-led-high-bay-light-wire-drawing
Installation and schematic:
IP65-Tri-proof-light-Ceiling-Mounted-installation
IP65-Tri-proof-light-Hanging-installation
Led Tri-proof Light widely applied in commercial lighting, public lighting and industrial lighting, such as supermarket, exhibition hall, parking lot,tunnel ,train station, airport, factory,warehouse and food processing plant.
led-tri-proof-light-applications
