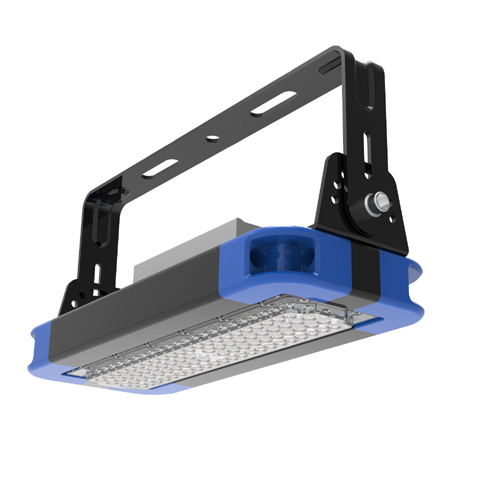

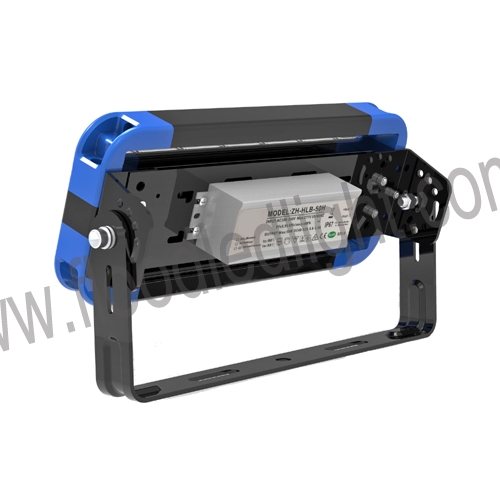

High Mast LED Flood Light

50W Led Flood Light

Item No.: FG50W06
1. Excellent heat sink with Cold forging design
2. 15°/25°/45°/60°/90°/20*50°/30*70°/80*140° various beam angle for choice
3. No UV or RF interference, No mercury or lead
4. LUMILEDS 3030 Chips,High CRI,over 150lm/w
5. IP66 Waterproof,5 Years warranty
Description Product Dimension User Manual Application Cases


Product Features:

1. High Power, high lumen, high quality
2. Save 80% more energy compared with traditional lighting fixtures
3. Easy to install and use, secure and reliable
4. No UV or RF interference, No mercury or lead
5. W
hole structure waterproof design,safe and reliable.Cold Forging aluminum inprove heat-dissipation
6. High quality, high efficiency, high CRI & luminous flux,
7. long life span>80000hrs
8. High brightness, low consumption, green for environment
9. Various lens,15°/25°/45°/60°/90°/20*50°/30*70°/80*140° for your widely beam angle choice
10. Built-in LED driver with IC ensure stability of light, it can work efficiently under
11. AC100-277V in different countries and regions.DC12/24V led driver is also available
12. Potection grade is IP66

Product Specification:

A.General data

Product Name                  LED Flood Light/LED Tunnel Light 50W
Model  FG50W06
Input Voltage  100-277VAC
Frequency  50/60 Hz
Power Consumption 50W
Power Factor >0.95
Optical design  15°/25°/45°/60°/90°/20*50°/30*70°/80*140°
IP Rating IP66
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data
Model                          FG50W06
Light Source LUMILEDS 3030 Chips
Colour Temperature  2700~6000K
Luminous Flux 7500lm
Luminous Efficiency 150lm/w
Colour Rendering Index >80Ra

C. Packing Data
Model                                                     FG50W06

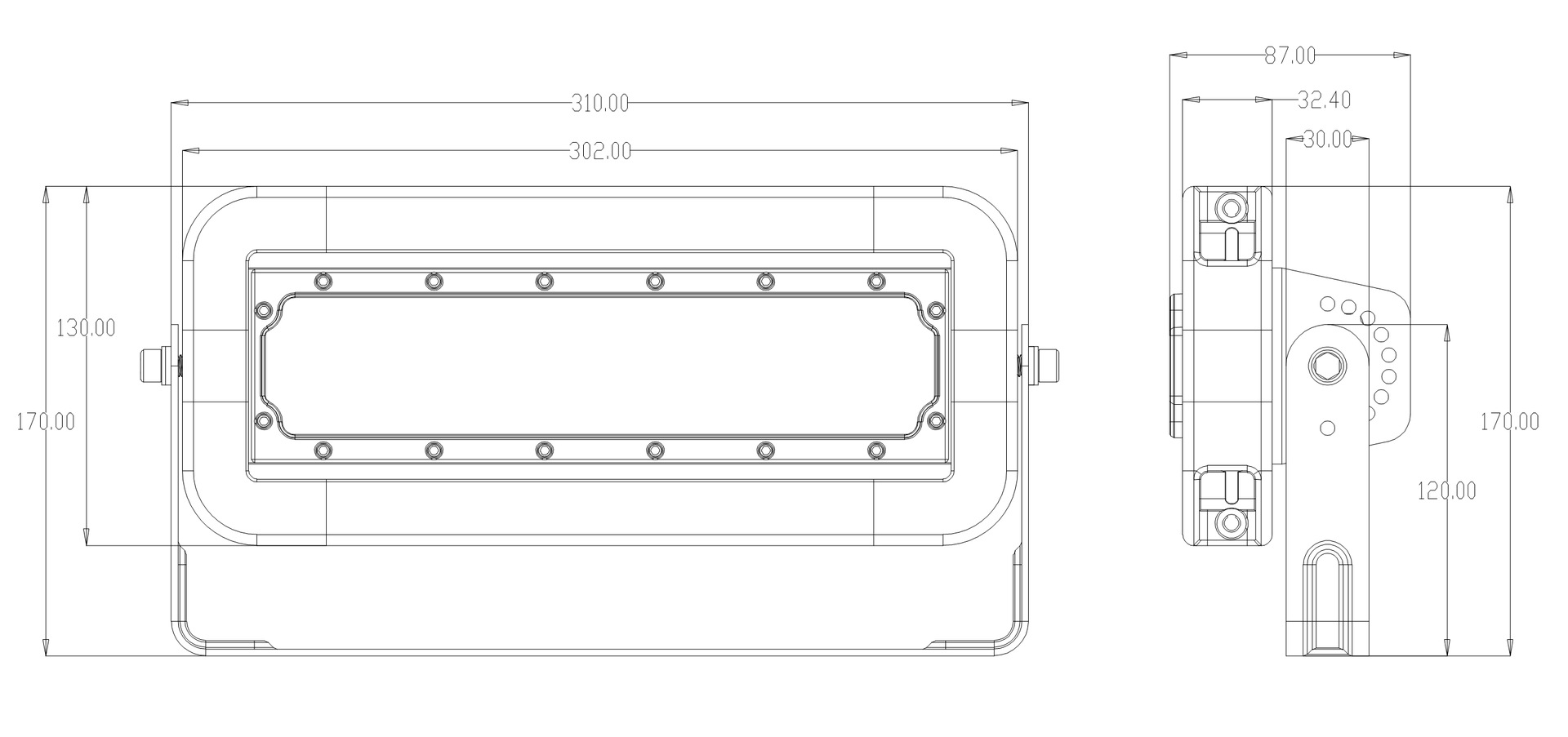

Product Dimension L310*W170*H87mm
Pcs/CTN  1
Package Dimensions    340*110*190mm
Net weight    2.3KG
Gross weight   2.6KG


  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.

Installation and schematic:
LED Tunnel light is widely used in the single building lighting, also led tunnel light fixtures used in tunnel lighting, the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.
