50W Led Parking Lot Light
50W Led Parking Lot Light 50W Led Parking Lot Light 50W Led Parking Lot Light 50W Led Parking Lot Light 50W Led Parking Lot Light 50W Led Parking Lot Light

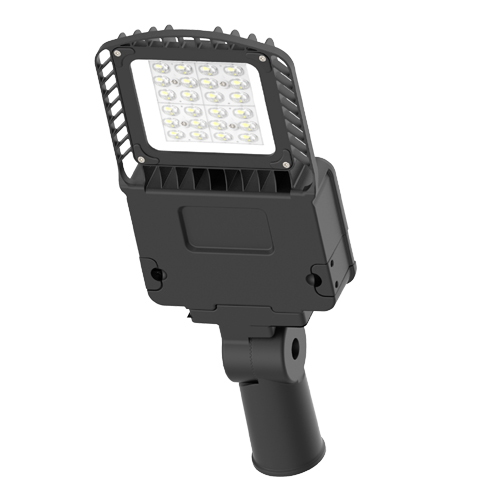

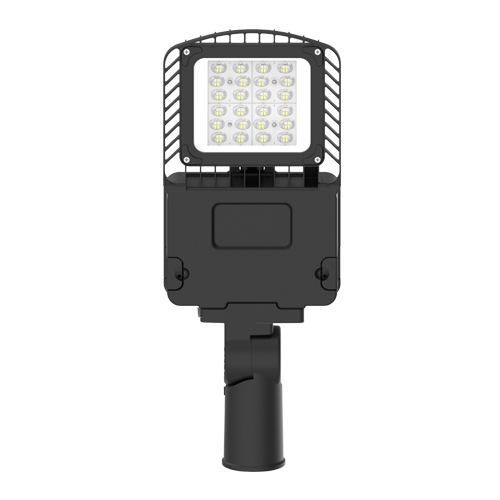

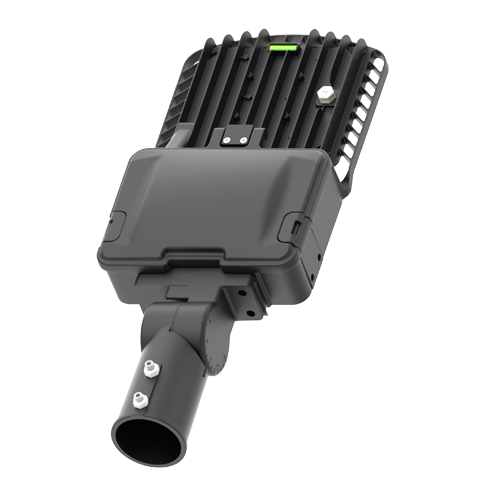

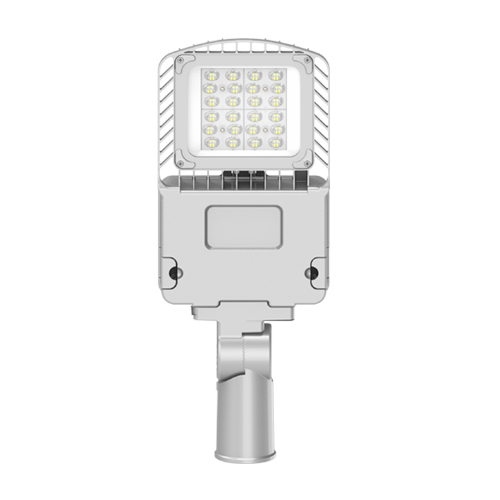

50W Led Parking Lot Light

Item No.: LD50W17
1. New shell and heat-sink system design
2. It can withstand a level 17 hurricane
3. Various installations,widely applications
4. Modular design,high reliability performance
5. IP66 Waterproof, 5 Years warranty
INQUIRY
Description Product Dimension User Manual Application Cases

                              50w-led-parking-lot-light-1
                              50w-led-parking-lot-light-2
                             50w-led-parking-lot-light-3
                              50w-led-parking-lot-light-4

Product Features:

1. New shell and heat-sink system design,suit for led parking lot light;
2. Various installations,widely applications:led shoebox light,led area light;
3. Circulation cooling design,aluminum casting process;
4. With a protection grade reaching IP66;
5. It can withstand a level 17 hurricane;
6. Lumileds 3030 or 5050 as lights source, over 130lm/w output and 80~90Ra
7. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name                                                     LED Parking Lot Light 50W
Model   LD50W17
Input Voltage                                   100-277VAC
Frequency                                     50/60 Hz
Power Consumption                                       50W
Power Factor                                      >0.95
Optical design                              T2/T3/T4/60°/90°
IP Rating                                        IP66
Operating Temperature                                 -25°C~+45°C
Storage Temperature                                 -25°C~+65°C
Relative Humidity                                    10%-90%
LED Lifetime                      > 80,000 hrs @ LM70,LM80
Safety Standards                                    CE&Rohs

B. Light Data

Model                                                                                LD50W17
Light Source                 LUMILEDS 3030 or 5050 Chips
LED QTY                                    64PCS
Colour Temperature                                2700~7000K
Luminous Flux                                  6500lm
Luminous Efficiency                                  130lm/w
Colour Rendering Index                                   >80Ra

C. Packing Data

Model                                                                              LD50W17

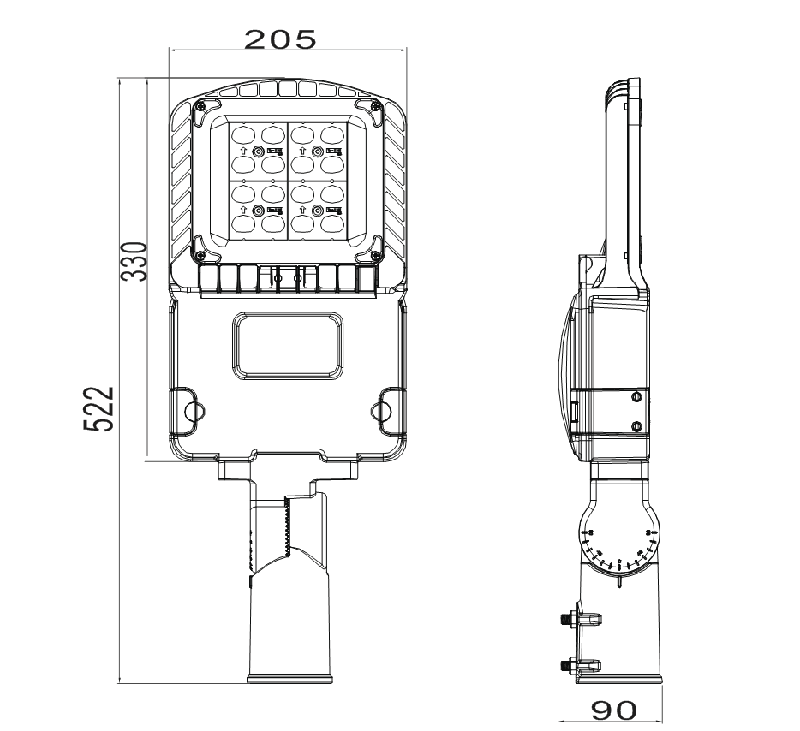

Product Dimension                                 522*205*90mm
Pcs/CTN                                             1
Package Dimensions                                  580*260*150mm
Net weight                                          4.0KG
Gross weight                                         4.5KG
50w-led-parking-lot-light-size

  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
300w-ufo-led-high-bay-light-wire-drawing
Installation and schematic:
50w-led-parking-lot-light-installations
50w-led-parking-lot-light-installations-2
50w-led-parking-lot-light-installations-3
Led parking lot light,led shoebox light and led area light can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc.

led-shoebox-light-applications
