Modular LED Flood Light

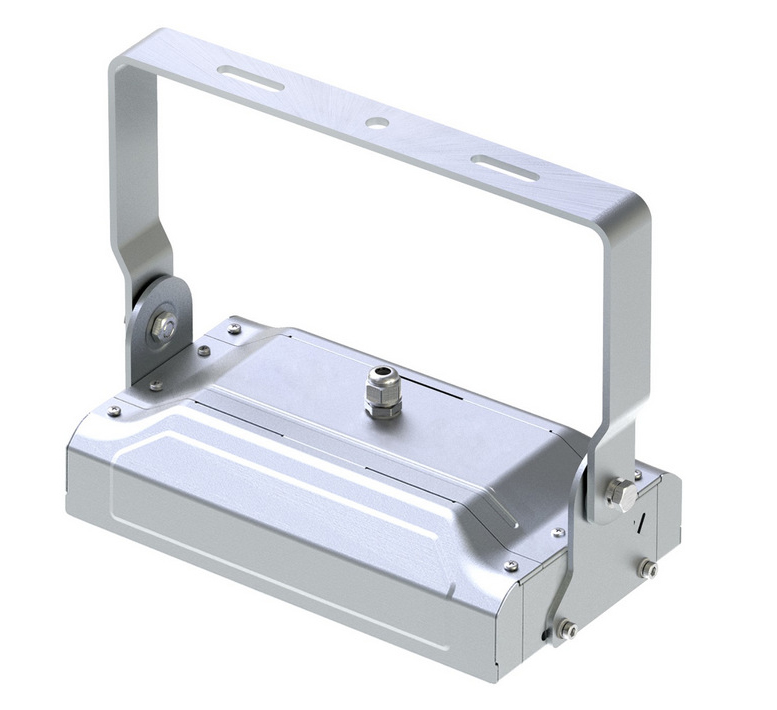

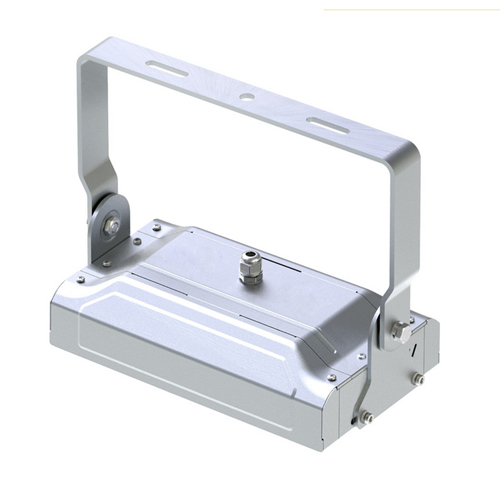

50W Led Tunnel Light

Item No.: FG50W16
1. Design for widely used as flood light and tunnel light
2. 3-D Heat Dissipation
3. Corrosion resistance,With powder coasting
4. LUMILEDS 3030 Chips,High CRI,over 120lm/w
5. IP67 Waterproof
Description Product Dimension User Manual Application Cases

Led Flood Lights


Product Features:

1. Design for widely used as flood light and tunnel light;
2. Corrosion resistance.With powder coating.Suitable for harsh outdoor enviroment;
3. 3-D Heat Dissipation;
4. Large angle adjustment.Screw attached type installation.315D adjustable angle;
5. Protection rate:IP67;
6. High quality LEDs and drivers are used;
7. Does not contain environmentally harmful mercury pollution, green; Energy saving;
8. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name                                                LED Tunnel Light 50W
Model FG50W16
Input Voltage                                     100-277VAC
Frequency                                         50/60 Hz
Power Consumption                                           50W
Power Factor                                          >0.95
Optical design                                        75°*140°
IP Rating                                           IP67
Operating Temperature                                    -25°C~+45°C
Storage Temperature                                    -25°C~+65°C
Relative Humidity                                       10%-90%
LED Lifetime                      > 80,000 hrs @ LM70,LM80
Safety Standards                                    CE&Rohs

B. Light Data
Model                                                                        FG50W16
Light Source                           LUMILEDS 3030 Chips
LED QTY                                       56PCS
Colour Temperature                                   2700~7000K
Luminous Flux                                      6000lm
Luminous Efficiency                                     120lm/w
Colour Rendering Index                                      >80Ra

C. Packing Data
Model                                                                       FG50W16

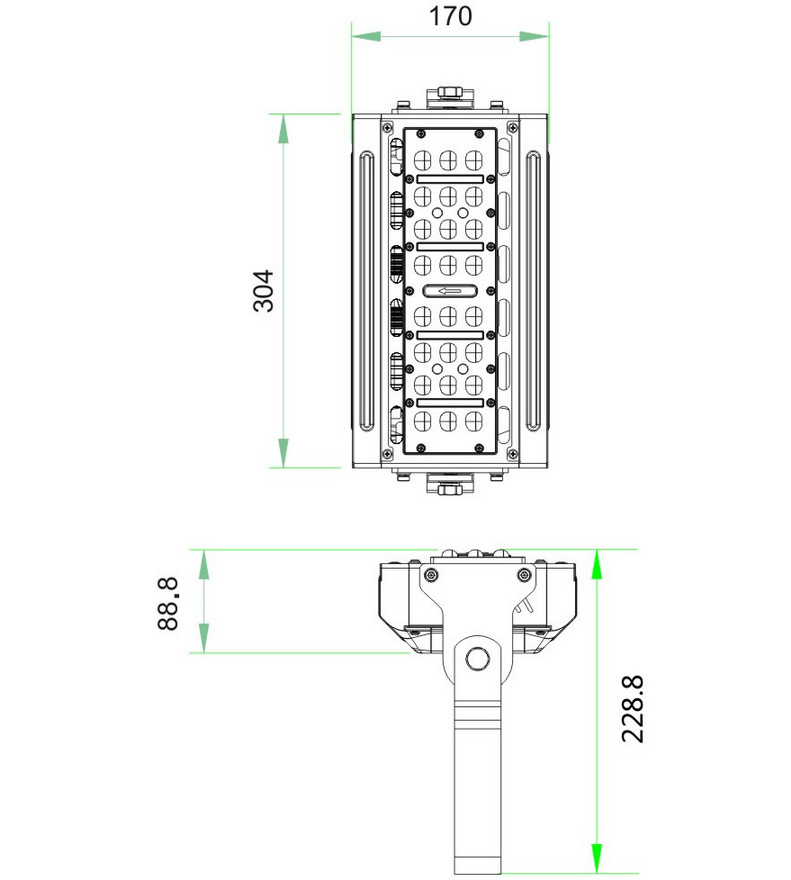

Product Dimension                                 350*170*88.8mm
Pcs/CTN                                             1
Package Dimensions                                 370*270*155mm
Net weight                                           2KG
Gross weight                                        4.6KG


  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz´╝îPlease do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.

Installation and schematic:


LED Tunnel light is widely used in the single building, the historical building exterior lighting, the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.
