Slim LED Flood Light

50W Slim Led Flood Light
50W Slim Led Flood Light 50W Slim Led Flood Light 50W Slim Led Flood Light 50W Slim Led Flood Light 50W Slim Led Flood Light

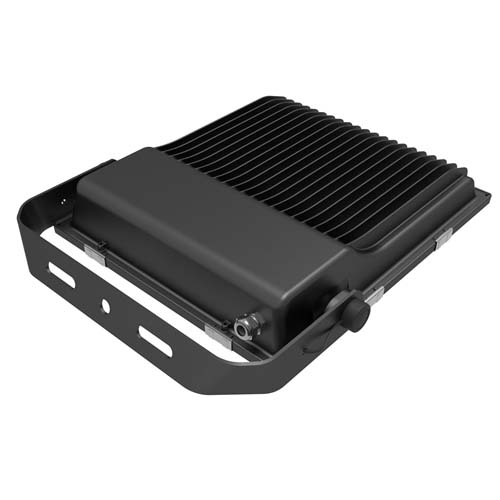

50W Slim Led Flood Light

Item No.: FG50W14
1. Innovative G-type buckle technology
2. Ultra-thin sleek design, fashionable and classical
3. The third generation of flood light heat sink
4. LUMILEDS 3030 Chips,High CRI,over 120lm/w
5. IP65 Waterproof,3/5 Years warranty
INQUIRY
Description Product Dimension User Manual Application Cases

Led Flood Lights

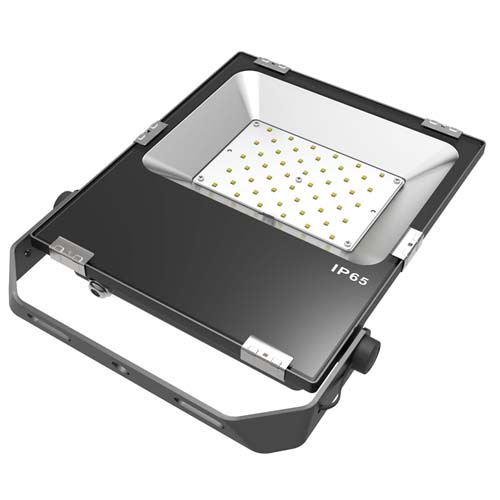

                        50w-slim-led-flood-light-1
                           50w-slim-led-flood-light-2

Product Features:

1.Integrated reflector and entire aluminum lamp cooling structure;
2.Ultra-thin sleek design, fashionable and classical
3.Innovative G-type buckle technology, guard against glass falling off, easy to install;
4.High-brightness SMD LED (luminous flux maintenance factor of 95%), long life, high CRI, pure color;
5.Choose stable performance constant current source (fast start, no flicker, no noise);
6.IP65 Waterproof;
7.Does not contain environmentally harmful mercury pollution, green; Energy saving (power consumption is 80% compared with traditional Spotlights);
8.Long Lifespan (up to 80,000 hours);

Product Specification:
A. General data
Name Slim LED Flood Light 10W-200W
Model FG10W14 FG20W14 FG30W14 FG50W14
Input Voltage 100-277VAC
Frequency 50/60 Hz
Power Consumption 10W 20W 30W 50W
Power Factor >0.95
Beam Angle 120°/30°/60°/90°/70*150°
IP Rating IP65
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

Model FG80W14 FG100W14 FG150W14 FG200W14
Input Voltage 100-277VAC
Frequency 50/60 Hz
Power Consumption 80W 100W 150W 200W
Power Factor >0.95
Beam Angle 120°/30°/60°/90°/70*150°
IP Rating IP65
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data
Model FG10W14 FG20W14 FG30W14 FG50W14
Light Source Philips 3030 Led Chips
LED QTY 10PCS 20PCS 30PCS 50PCS
Colour Temperature 2700-7000K
Luminous Flux 1200 lm 2400 lm 3600 lm 6000 lm
Luminous Efficiency 120 lm/W
Colour Rendering Index >80Ra

Model FG80W14 FG100W FG150W14 FG200W14
Light Source Philips 3030 Led Chips
LED QTY 80PCS 100PCS 150PCS 200PCS
Colour Temperature 2700-7000K
Luminous Flux 9600 lm 12000 lm 18000 lm 24000 lm
Luminous Efficiency 120 lm/W
Colour Rendering Index >80Ra

C. Packing Data
Model FG10W14 FG20W14 FG30W14 FG50W14
Product Dimension 166*107*32 mm 217*152*40 mm 227*167*40 mm 311*220*48 mm
Pcs/CTN 36 20 20 8
Package Dimensions 425*415*255mm 515*380*260mm 535*405*260mm 530*365*255mm
Net weight/pcs 15.48KG 15KG 19.2KG 14.4KG
Gross weight/pcs 16KG 15.5KG 19.7KG 14.9KG

Model FG80W14 FG100W14 FG150W14 FG200W14
Product Dimension 355*245*50mm 403*295*54 mm 431*330*54 mm 471*360*54 mm
Pcs/CTN 1 1 1 1
Package Dimensions 435*340*130mm 510*430*135mm 510*430*135mm 555*460*135mm
Net weight  3 KG 4KG 5.8KG 6.5KG
Gross weight 3.5KG 4.5KG 6.3KG 7KG

slim-led-flood-light-size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
slim-led-flood-light-wire-drawing












Installation and schematic:

50w-slim-led-flood-light-install



LED flood light is widely used in the single building, the historical building exterior lighting, the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.

slim-led-flood-light-applications
