Product Features:
1. Excellent heat sink with internal Copper pipe design;
2. 25°/60°/90°beam angle for choice.light trans-mittance can reach up to 92%;
3. LUMILEDS 3030 Chips,cost effective compared with COB solution;
4. Copper pipe connected with zipped fins heat sink.High thermal efficiency and rapid cooling;
5. 17 settings on the bracket.288 degree adjust angle;
6. Pure aluminum reflector intergrated with Silicone ring and tempered glass cover,waterproof,anti-fog and anti-frost;
7. Long Lifespan (up to 80,000 hours);
Product Specification:
A.General data
Product Name |

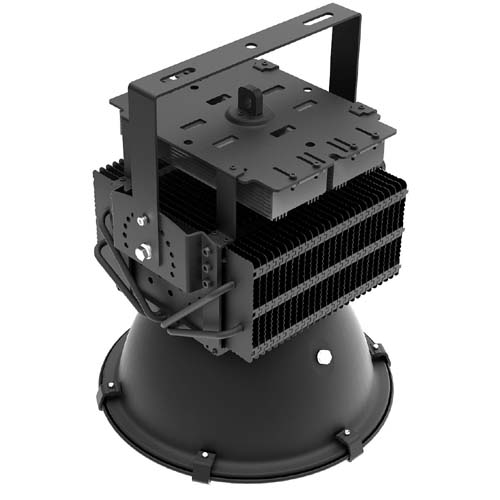

High Mast LED Flood Light 700W |
Model |
FG700W04 |
Input Voltage |
100-277VAC |
Frequency |
50/60 Hz |
Power Consumption |
700W |
Power Factor |
>0.95 |
Optical design |
25°/60°/90° |
IP Rating |
IP65 |
Operating Temperature |
-25°C~+45°C |
Storage Temperature |
-25°C~+65°C |
Relative Humidity |
10%-90% |
LED Lifetime |
> 80,000 hrs @ LM70,LM80 |
Safety Standards |
CE&Rohs |
B. Light Data
Model |
FG700W04 |
Light Source |
LUMILEDS 3030 Chips |
LED QTY |
672PCS |
Colour Temperature |
2700~6000K |
Luminous Flux |
84000lm |
Luminous Efficiency |
120lm/w |
Colour Rendering Index |
>80Ra |
C. Packing Data
Model |
FG700W04 |
Product Dimension |
Ø385*H511mm |
Pcs/CTN |
1 |
Package Dimensions |
480*480*590mm |
Net weight |
15KG |
Gross weight |
16KG |
