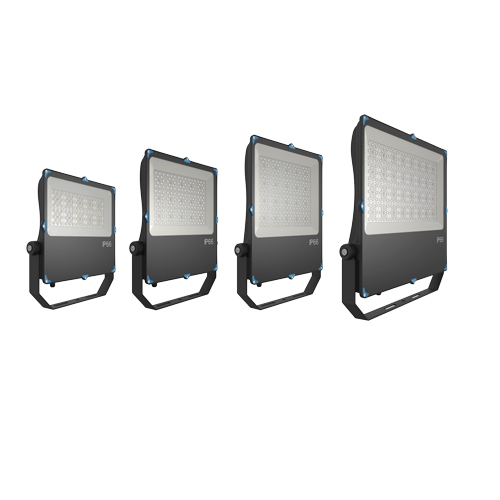

Slim LED Flood Light

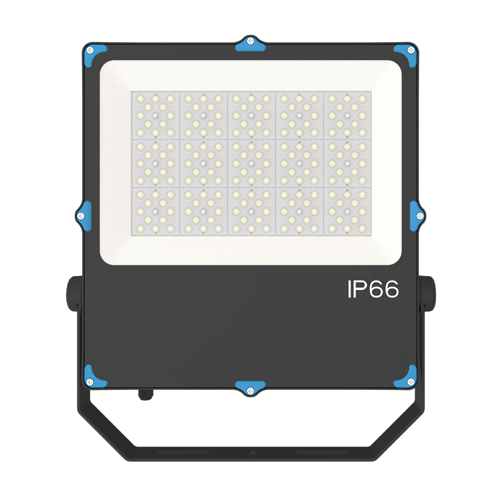

150W Slim Led Flood Light

Item No.: FG150W15
1. Innovative G-type buckle technology
2. Ultra-thin sleek design, fashionable and classical
3. The third generation of flood light heat sink
4. LUMILEDS 3030 Chips,High CRI,over 130lm/w
5. IP66 Waterproof,3/5 Years warranty
INQUIRY
Description Product Dimension User Manual Application Cases

Led Flood Lights







                        200w-led-flood-light-1
                        200w-led-flood-light-2

Product Features:

1.Integrated reflector and entire aluminum lamp cooling structure;
2.Ultra-thin sleek design, fashionable and classical
3.Innovative G-type buckle technology, guard against glass falling off, easy to install;
4.High-brightness SMD LED (luminous flux maintenance factor of 95%), long life, high CRI, pure color;
5.Choose stable performance constant current source (fast start, no flicker, no noise);
6.IP66 Waterproof;
7.Does not contain environmentally harmful mercury pollution, green; Energy saving (power consumption is 80% compared with traditional Spotlights);
8.Long Lifespan (up to 80,000 hours);

Product Specification:
A. General data
Name Slim LED Flood Light 150W
Model FG150W15
Input Voltage 100-277VAC
Frequency 50/60 Hz
Power Consumption 150W
Power Factor >0.95
Beam Angle 15°/30°/60°/90°/120°/Type I/Type II/Type III
IP Rating IP66
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

Model FG150W15
Input Voltage 100-277VAC
Frequency 50/60 Hz
Power Consumption 150W
Power Factor >0.95
Beam Angle 15°/30°/60°/90°/120°/Type I/Type II/Type III
IP Rating IP66
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data
Model FG150W15
Light Source Luminous/Osram 3030 Led Chips
LED QTY 160PCS
Colour Temperature 2700-7000K
Luminous Flux 19500 lm
Luminous Efficiency 130 lm/W
Colour Rendering Index >80Ra

C. Packing Data
Model FG150W15
Product Dimension 394*395*57 mm
Pcs/CTN 1
Package Dimensions 440*420*120mm
Net weight/pcs 4.8KG
Gross weight/pcs 5.8KG

150w-slim-led-flood-light-size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz´╝îPlease do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
200w-slim-ledl-flood-light-wire-drawing












Installation and schematic:

200w-slim-led-flood-light-install



150W Outdoor LED flood light is widely used in the single building, the historical building exterior lighting, also Led flood light used in the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.

slim-led-flood-light-applications
