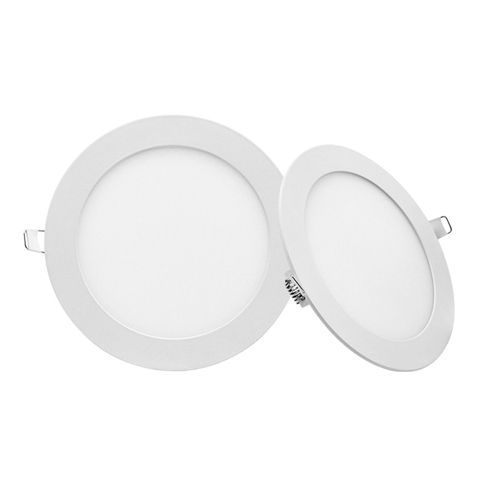

Recessed Led Panel Light

Item No.: PLR
1. High efficiency,low power consumption,save energy
2. Slim shell,very simple and fashionable
3. No flicker,no glare,very soft and even light
4. Easily embedded installation
5. Long life span,over 50,000hrs
Request Quote
Description Product Dimension User Manual Application Cases

mounted-led-panel-light
                              slim-led-panel-light-1
                              slim-led-panel-light-2
                              slim-led-panel-light-3

Product Features:

1. High efficiency & energy saving.Under the condition of the same llumination,it saves more than 80%
    energy compared with the traditional lamp;
2. High performance external constant current drivers,no stroboscopic,good for eyesight protection;
3. Eco-friendly,No Hg & Xe ,or other harmful element.Recyclable,also it won’t generate EMI;
4. No UV & IR.It won’t distribute ray radiation;
5.
Does not contain environmentally harmful mercury pollution,green,Energy saving;
6. Long life span,using semiconductor chip as the light resource,the life can be over 50,000hrs;


Product Specification:

A.General data

Product Name Recessed Led Panel Light
Model PLR
Input Voltage  100-277VAC
Frequency  50/60 Hz
Power Consumption 3W/6W/9W/12W/15W/18W/24W
Power Factor >0.9
Optical design  120°
IP Rating IP44
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 50,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data

Model                        PLR
Light Source            Epistar 2835 Chips
LED QTY        15/30/45/60/75/90/120PCS
Colour Temperature           2700~6000K
Luminous Flux         RFQ
Luminous Efficiency          80~100lm/w
Colour Rendering Index         >80Ra

C. Packing Data

Model                                                               PLR
Product Dimension            Ø85/Ø120/Ø145/Ø175/Ø200/Ø225/Ø300*12mm
Pcs/CTN RFQ
Package Dimensions  RFQ
Net weight    0.12/0.13/0.26/0.29/0.33/0.42/0.6KG
Gross weight  RFQ


slim-led-panel-light-size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
600-high-mast-led-flood-light-wire-drawing

Installation and schematic:

square-recessed-led-panel-light-install
Slim Led panel light use slim shell,very simple and fashionable.Recessed led panel light available for your various applications,slim led panel downlight good for your choice.

recessed-led-panel-light-application-1
recessed-led-panel-light-application-2
