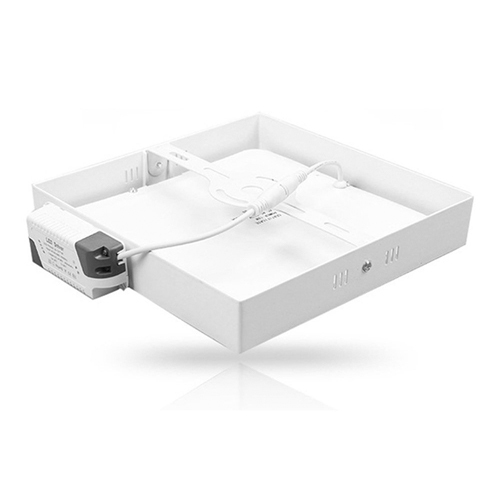

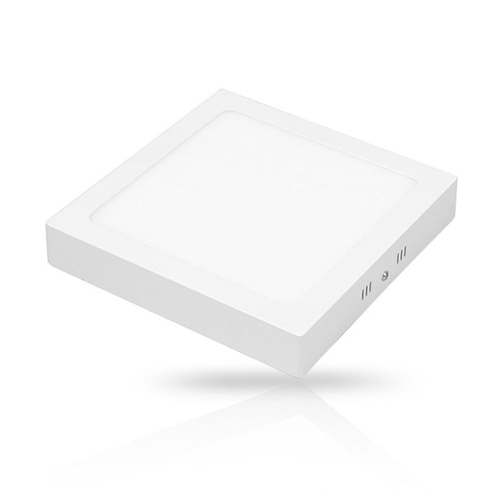

Mounted Led Panel Light

Item No.: PLMS
1. High efficiency,low power consumption,save energy
2. Slim shell,very simple and fashionable
3. No flicker,no glare,very soft and even light
4. Easily embedded installation
5. Long life span,over 50,000hrs
Description Product Dimension User Manual Application Cases


Product Features:

1. High efficiency & energy saving.Under the condition of the same llumination,it saves more than 80%
    energy compared with the traditional lamp;
2. High performance external constant current drivers,no stroboscopic,good for eyesight protection;
3. Eco-friendly,No Hg & Xe ,or other harmful element.Recyclable,also it won’t generate EMI;
4. No UV & IR.It won’t distribute ray radiation;
Does not contain environmentally harmful mercury pollution,green,Energy saving;
6. Long life span,using semiconductor chip as the light resource,the life can be over 50,000hrs;

Product Specification:

A.General data

Product Name Surface Mounted Led Panel Light
Model PLMS
Input Voltage  100-277VAC
Frequency  50/60 Hz
Power Consumption 6W/12W/18/24W
Power Factor >0.9
Optical design  120°
IP Rating IP44
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 50,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data
Model                                        PLMS
Light Source            Epistar 2835 Chips
LED QTY        30/60/90/120PCS
Colour Temperature           2700~6000K
Luminous Flux         RFQ
Luminous Efficiency          80~100lm/w
Colour Rendering Index          >80Ra

C. Packing Data
Model                                                      PLMS
Product Dimension            Ø120*40/Ø170*40/Ø220*40/Ø300*40mm
Package Dimensions  RFQ
Net weight    0.3/0.5/0.85/1.15KG
Gross weight  RFQ

  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz´╝îPlease do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.

Installation and schematic:

Led panel light use slim shell,very simple and fashionable. Surface mounted led panel light available for your various applications,ceiling mounted led panel light good for your choice.
