High Mast LED Flood Light

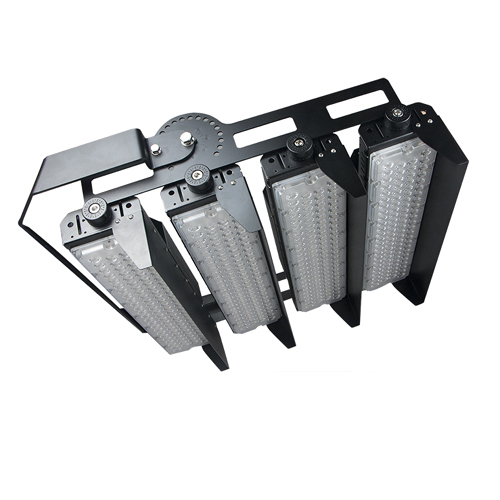

1000W Led High Mast Flood Light

Item No.: FG1000W10
1. Excellent heat sink with Cold forging design
2. 10°/20°/40°/60°/P50° various beam angle for choice
3. No UV or RF interference, No mercury or lead
4. LUMILEDS 5050 Chips,High CRI,over 150lm/w
5. IP66 Waterproof,IK10, 5 Years warranty
Request Quote
Description Product Dimension User Manual Application Cases

                        1000w high mast led flood light-1
                        1000w high mast led flood light-2

Product Features:

1. High Power, high lumen, high quality
2. Save 80% more energy compared with traditional lighting fixtures
3. Easy to install and use, secure and reliable
4. No UV or RF interference, No mercury or lead
Three-dimensional rotating bracket, the installation angle is more flexible
6. High quality, high efficiency, high CRI & luminous flux,
7. long life span>80000hrs
8. High brightness, low consumption, green for environment
9. Various lens,10°/20°/40°/60°/P50° for your widely beam angle choice
10. Meanwell led driver to ensure stability of light, it can work efficiently
11. AC100-277V in different countries and regions.other led driver is also available
12. Potection grade is IP66,IK10

Product Specification:

A.General data

Product Name                  LED Stadium Light 1000W
Model FG1000W10
Input Voltage  100-277VAC
Frequency  50/60 Hz
Power Consumption 1000W
Power Factor >0.95
Optical design  10°/20°/40°/60°/P50°
IP Rating IP66
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data
Model                                                                             FG1000W10
Light Source LUMILEDS 5050 Chips
Colour Temperature  2700~6000K
Luminous Flux 150000lm
Luminous Efficiency 150lm/w
Colour Rendering Index >80Ra

C. Packing Data
Model                                                                           FG1000W10
Product Dimension L630*W590*H240mm
Pcs/CTN  1
Package Dimensions    645*700*275mm
Net weight    17KG
Gross weight   18KG

1000w high mast led flood light size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.

Installation and schematic:
LED High Mast Light,Led High Mast Flood Light is widely used in sport field lighting, football field, baseball field, Olympic stadium, large square lighting, airport, port dock lighting and any outdoor industrial lighting cases.

led high mast light application
high mast led flood light application
