High Mast LED Flood Light

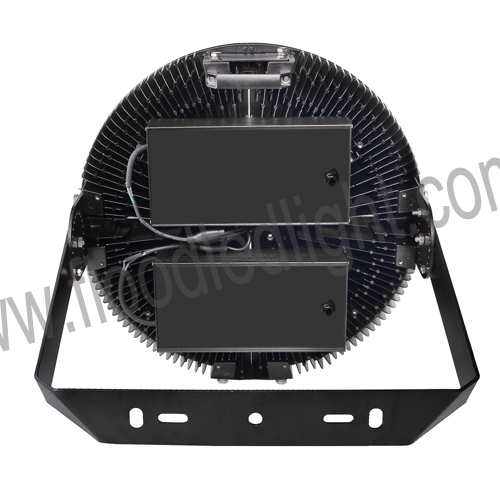

1000W Led Sports Lighting

Item No.: FG1000W09
1. Excellent heat sink with Cold forging design
2. 10°/25°/45°/60° various beam angle for choice
3. No UV or RF interference, No mercury or lead
4. LUMILEDS 5050 Chips,High CRI,over 150lm/w
5. IP66 Waterproof,IK10, 5 Years warranty
Request Quote
Description Product Dimension User Manual Application Cases


                        1000w-led-sports-lighting-fixture-1
                         1000w-led-sports-lighting-fixture-2

Product Features:

1. High Power, high lumen, high quality
2. Save 80% more energy compared with traditional lighting fixtures
3. Easy to install and use, secure and reliable
4. No UV or RF interference, No mercury or lead
5.
Three-dimensional rotating bracket, the installation angle is more flexible
6. High quality, high efficiency, high CRI & luminous flux,
7. long life span>80000hrs
8. High brightness, low consumption, green for environment
9. Various lens,10°/25°/45°/60° for your widely beam angle choice
10. Meanwell led driver to ensure stability of light, it can work efficiently
11. AC100-277V in different countries and regions.other led driver is also available
12. Potection grade is IP66,IK10


Product Specification:

A.General data

Product Name                   LED Sports Light 1000W
Model  FG1000W09
Input Voltage  100-277VAC
Frequency  50/60 Hz
Power Consumption 1000W
Power Factor >0.95
Optical design  10°/25°/45°/60°
IP Rating IP66
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 80,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data

Model                                                                            FG1000W09
Light Source LUMILEDS 5050 Chips
LED QTY 480PCS
Colour Temperature  2700~6000K
Luminous Flux 150000lm
Luminous Efficiency 150lm/w
Colour Rendering Index >80Ra

C. Packing Data

Model                                                                          FG1000W09
Product Dimension 620*645*380mm
Pcs/CTN  1
Package Dimensions   860*680*260mm
Net weight    31.0KG
Gross weight   33.0KG

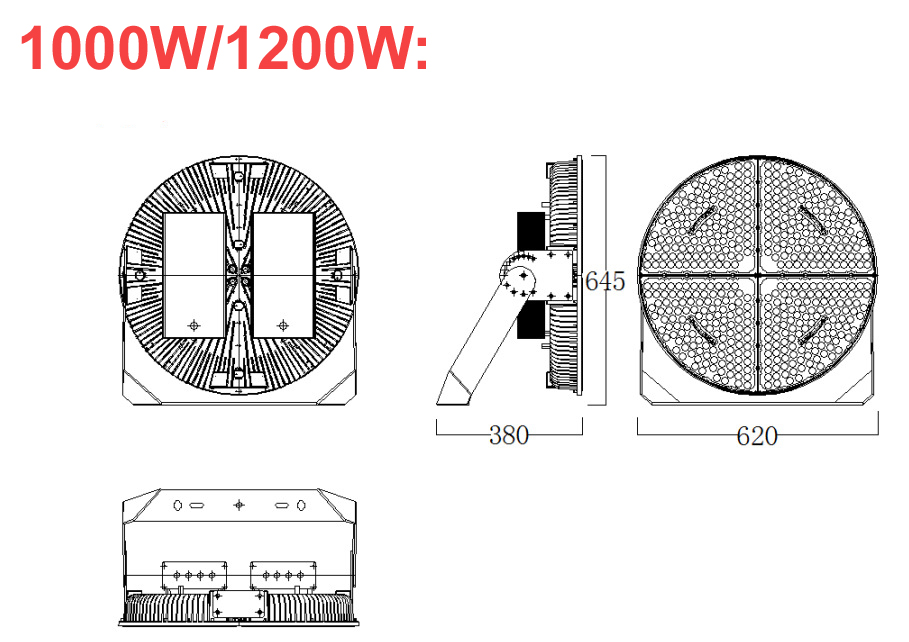

1000w-led-sports-lighting-size-1

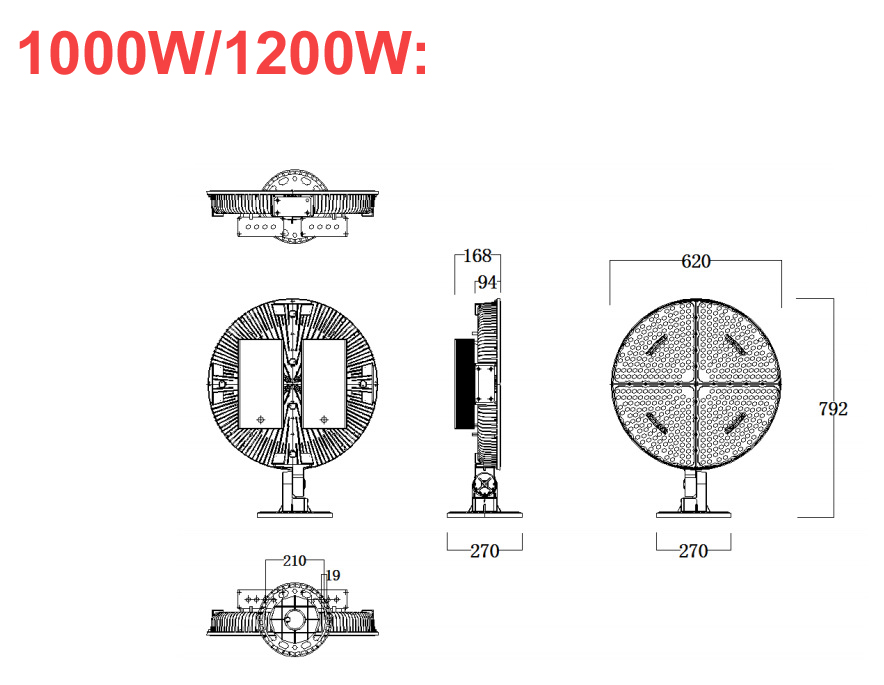

1000w-led-sports-lighting-size-2




  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
200w-led-high-mast-light-wire-drawing

Installation and schematic:
led-tunnel-light-install

LED Stadium light,Led Sports Lighting Fixture is widely used in sport field lighting, football field, baseball field, Olympic stadium, large square lighting, airport, port dock lighting and any outdoor industrial lighting cases.
.

led-stadium-lights-applications
