High Mast LED Flood Light

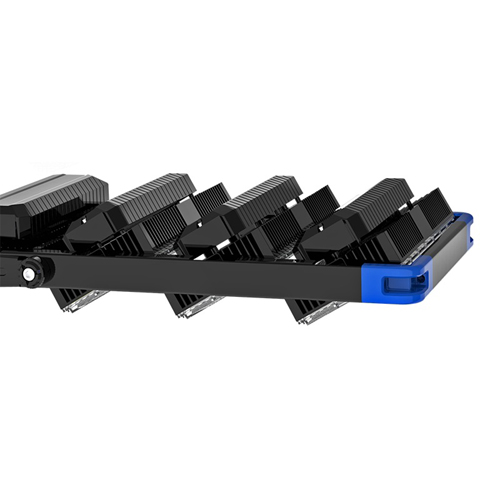

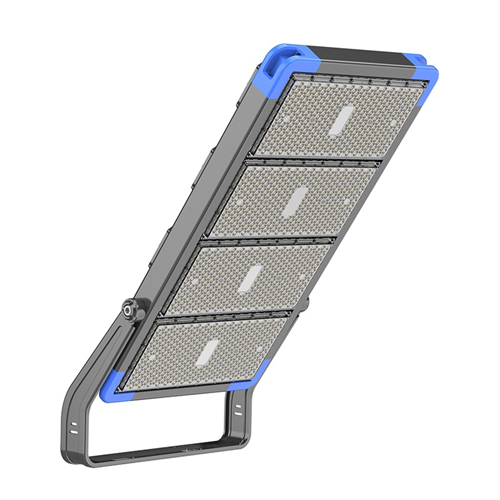

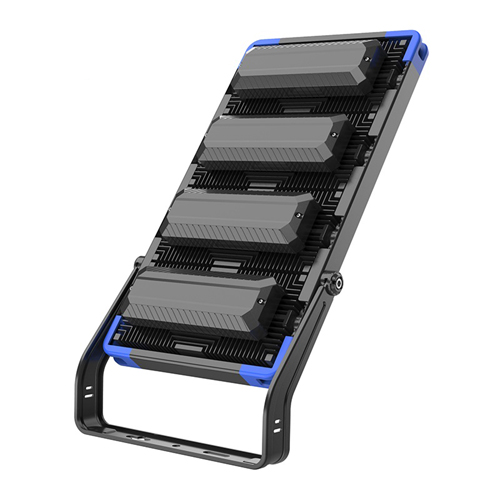

1000W Led Stadium Light

Item No.: FG1000W03
1. Excellent heat sink with Cold forging design
2. 10°/25°/45°/60°/90°/130*40°/65*25*60° various beam angle for choice
3. No UV or RF interference, No mercury or lead
4. LUMILEDS 3030 Chips,High CRI,over 150lm/w
5. IP66 Waterproof,IK10, 5 Years warran
Request Quote
Description Product Dimension User Manual Application Cases


                        1000w-led-stadium-light-1
                        1000w-led-stadium-light-2
                        1000w-led-stadium-light-3

Product Features:

1. High Power, high lumen, high quality
2. Save 80% more energy compared with traditional lighting fixtures
3. Easy to install and use, secure and reliable
4. No UV or RF interference, No mercury or lead
5.
Three-dimensional rotating bracket, the installation angle is more flexible
6. High quality, high efficiency, high CRI & luminous flux,
7. long life span>100000hrs
8. High brightness, low consumption, green for environment
9. Various lens,
10°/25°/45°/60°/90°/130*40°/65*25*60° for your widely beam angle choice

10. Meanwell led driver to ensure stability of light, it can work efficiently
11. AC100-277V in different countries and regions.other led driver is also available
12. Potection grade is IP66,IK10


Product Specification:

A.General data

Product Name                 LED Stadium Light 1000W
Model FG1000W03
Input Voltage  100-277VAC
Frequency  50/60 Hz
Power Consumption 1000W
Power Factor >0.95
Optical design                                    10°/25°/45°/60°/90°/130*40°/65*25*60°
IP Rating IP66
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 100,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data

Model                                                                              FG1000W03
Light Source LUMILEDS 3030 Chips
LED QTY 1344PCS
Colour Temperature  2700~6000K
Luminous Flux 140000lm
Luminous Efficiency 140lm/w~160lm/w
Colour Rendering Index >80Ra

C. Packing Data

Model                                                                           FG1000W03
Product Dimension L462*W761*H111mm
Pcs/CTN  1
Package Dimensions    860*550*240mm
Net weight    26KG
Gross weight   28.9KG
250w led flood light size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
200w-led-high-mast-light-wire-drawing

Installation and schematic:
led-tunnel-light-install
LED High Mast Light,Led High Mast Flood Light provides high illumination, it is the most efficient and cost-effective way of illuminating large outdoor areas such as highways, railway yards, parking lots, airports, seaports, stadiums, etc. LED high mast lights are the best high mast luminaire because of their low high mast light cost, high light lumens, convenience for adjusting, and durability. lighting
.

led high mast light application
high mast led flood light application
