Cap Led Street Light

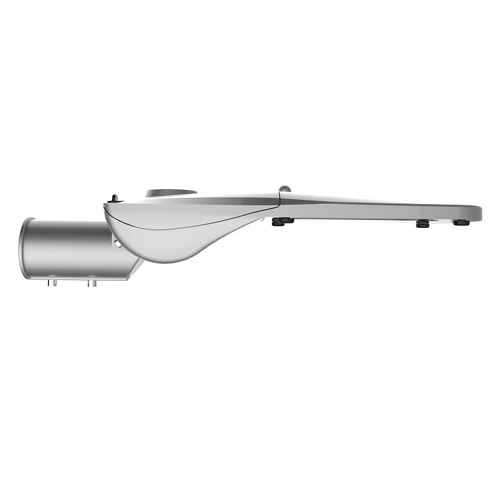

100W Cap Led Street Light

Item No.: LD100W16
1. Free of dust and water, suitable for outdoor
2. It can withstand a level 17 hurricane
3. All aluminum housing for the heat dissipating
4. Ultraithin design,convenient for storage, transportation and maintenance.
5. IP66 Waterproof, 5 Years warranty
Request Quote
Description Product Dimension User Manual Application Cases


Product Features:

1. All aluminum housing for the heat dissipating, greatly extends the lifespan of lighting source;
2. High pressure casting, procesed by painting, solid an corrosion resisting;
3. Ultraithin design, convenient for storage, transportation and maintenance
4. Free of dust and water, suitable for outdoor
5. It can withstand a level 17 hurricane;
6. Lumileds 3030 or 5050 as lights source, over 150lm/w output and 80~90Ra

7. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name                                                   LED Street Light Fixture 100W
Model   LD100W16
Input Voltage                                100-277VAC
Frequency                                    50/60 Hz
Power Consumption                                     100W
Power Factor                                    >0.95
Optical design                            80°*155°(T2/T3/T4)
IP Rating                                      IP66
Operating Temperature                              -25°C~+45°C
Storage Temperature                              -25°C~+65°C
Relative Humidity                                  10%-90%
LED Lifetime                      > 80,000 hrs @ LM70,LM80
Safety Standards                                   CE&Rohs

B. Light Data
Model                                                                                  LD100W16
Light Source                 LUMILEDS 3030 or 5050 Chips
LED QTY                                    144PCS
Colour Temperature                                 2700~7000K
Luminous Flux                                   15000lm
Luminous Efficiency                                    150lm/w
Colour Rendering Index                                     >80Ra

C. Packing Data
Model                                                                                 LD100W16
Product Dimension                                548*230*126mm
Pcs/CTN                                           1
Package Dimensions                                480*270*160mm
Net weight                                          3.6KG
Gross weight                                         4.4KG
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
Installation and schematic:
Led street light with sensor,outdoor led street light and led street light fixture can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc.
