Linear Led High Bay Light

You are here: Home > LED High Bay Light > Linear Led High Bay Light

Description Product Dimension User Manual Application Cases

100W-Led-Linear-High-Bay-Light-1

Product Features:

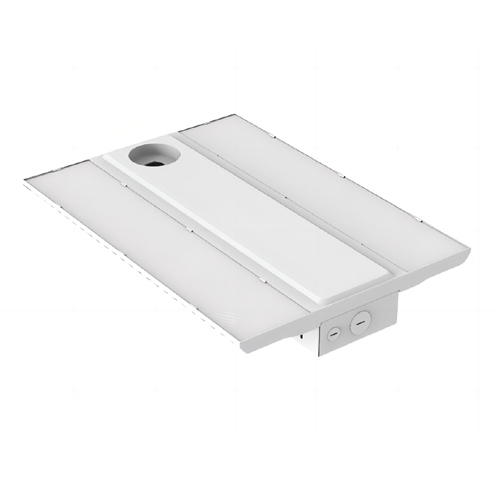

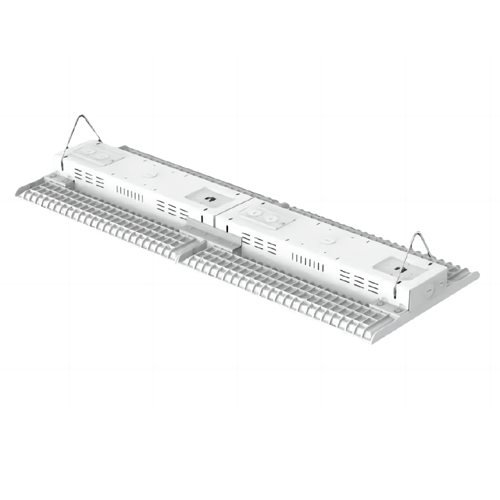

Name: 100W Led Linear High Bay Light
Brand: Fanguang Lighting
SKU: GKD100W07
Availability: InStock
Rating: 5 (1 reviews)

1. Taking 2835 chips as light souce,small light decay,pure light color and no ghosting;
2. Independant intergrated driver design,reduce the lamp volume and weight;
3. Unique heat sink design,reducing the lamp body temperature,increasing lamp life time;
4. Anodized and anticorrosive process,waterproof, dustproof and good performance;
5. Energy-saving effect is obvious, compared with sodium lamps can save more than 80%;
6. Surge voltage resistance is up to 6000V,surge current up to 65A;
7. Also can match with smart control system like Dali,ZigBee;
8. Long Lifespan (up to 100,000 hours);

Product Specification:

A.General data

Product Name	LED Linear High Bay Light 100W
Model	GKD100W07
Input Voltage	100-277VAC
Frequency	50/60 Hz
Power Consumption	100W
Power Factor	>0.95
Optical design	120°
IP Rating	IP65
Operating Temperature	-25°C~+45°C
Storage Temperature	-25°C~+65°C
Relative Humidity	10%-90%
LED Lifetime	> 100,000 hrs @ LM70,LM80
Safety Standards	CE&Rohs

B. Light Data

Model	GKD100W07
Light Source	LUMILEDS 2835 Chips
LED QTY	216PCS
Colour Temperature	2700~7000K
Luminous Flux	15000lm
Luminous Efficiency	150lm/w
Colour Rendering Index	>80Ra

C. Packing Data

Model	GKD100W07
Product Dimension	36026054mm
Pcs/CTN	2
Package Dimensions	405325160mm
Net weight	6.8G
Gross weight	7.1KG

Be sure disconnect power before installing, don’t construction with electricity.
Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
Input product line, brown is “L”, blue is “N” , yellow-green is GND.
Be sure wiring is closed and prevent leakage, when installing.
The lamp can not be used in violation of any fire regulations.

300w-ufo-led-high-bay-light-wire-drawing

Installation and schematic:

Led Linear High Bay Light is design for commercial or industrial lighting,led high bay light widely used for the factory lighting,warehouse lighting,workshop lighting,station lighting,etc.

linear-led-high-bay-light-applications
