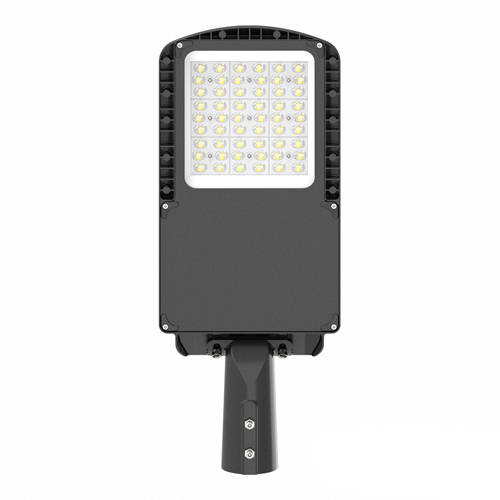

80W-slim-led-street-light-1

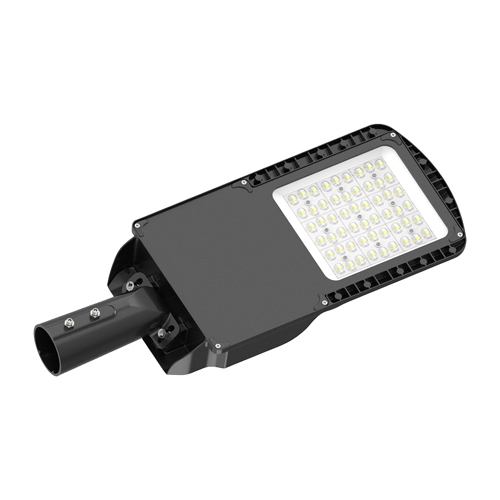

80W-slim-led-street-light-3
80W-slim-led-street-light-4

Product Features:

Name: 100W Slim Led Street Light
Brand: Fanguang Lighting
SKU: LD100W20
Availability: InStock
Rating: 5 (1 reviews)

1. All aluminum housing for the heat dissipating, greatly extends the lifespan of lighting source;
2. High pressure casting, procesed by painting, solid an corrosion resisting;
3. Ultraithin design, convenient for storage, transportation and maintenance;
4. Free of dust and water, suitable for outdoor;
5. It can withstand a level 17 hurricane;
6. Lumileds 3030 or 5050 as lights source, over 150lm/w output and 80~90Ra
7. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name	Slim LED Street Light 100W
Model	LD100W20
Input Voltage	100-277VAC
Frequency	50/60 Hz
Power Consumption	100W
Power Factor	>0.95
Optical design	T2M/T3M/T4M/60°/90°/120°
IP Rating	IP66
Operating Temperature	-25°C~+45°C
Storage Temperature	-25°C~+65°C
Relative Humidity	10%-90%
LED Lifetime	> 80,000 hrs @ LM70,LM80
Safety Standards	CE&Rohs

B. Light Data

Model	LD100W20
Light Source	LUMILEDS 3030 or 5050 Chips
LED QTY	144/216PCS
Colour Temperature	2700~7000K
Luminous Flux	13000lm
Luminous Efficiency	130lm/w,150lm/w,170lm/w
Colour Rendering Index	>80Ra

C. Packing Data

Model	LD100W20
Product Dimension	61124089mm
Pcs/CTN	1
Package Dimensions	666295170mm
Net weight	5.0KG
Gross weight	5.3KG

Be sure disconnect power before installing, don’t construction with electricity.
Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
Input product line, brown is “L”, blue is “N” , yellow-green is GND.
Be sure wiring is closed and prevent leakage, when installing.
The lamp can not be used in violation of any fire regulations.

300w-ufo-led-high-bay-light-wire-drawing

Installation and schematic:
slim led street light installation

Slim Led street light,photocell led street light and led street light fixture can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc.
Eco-Led-Street-Light-application
