Product Features:
1. High Power, high lumen, high quality
2. Save 80% more energy compared with traditional lighting fixtures
3. Easy to install and use, secure and reliable
4. No UV or RF interference, No mercury or lead
5. Whole structure waterproof design,safe and reliable.Cold Forging aluminum inprove heat-dissipation
6. High quality, high efficiency, high CRI & luminous flux,
7. long life span>80000hrs
8. High brightness, low consumption, green for environment
9. Various lens,12°/25°/45°/60° for your choice
10. Built-in LED driver with IC ensure stability of light, it can work efficiently under
11. AC100-305V in different countries and regions.DC12/24V led driver is also available
12. Potection grade is IP66
Product Specification:
A.General data
| Product Name |

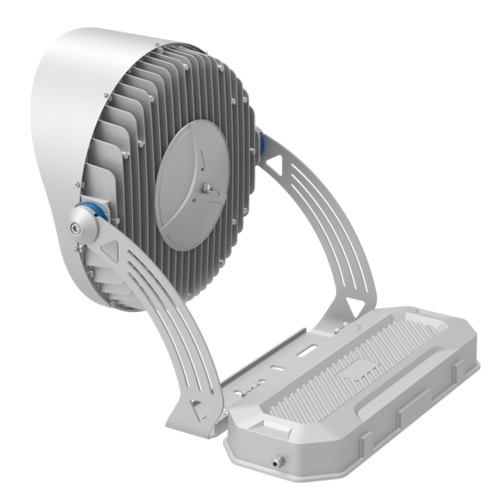

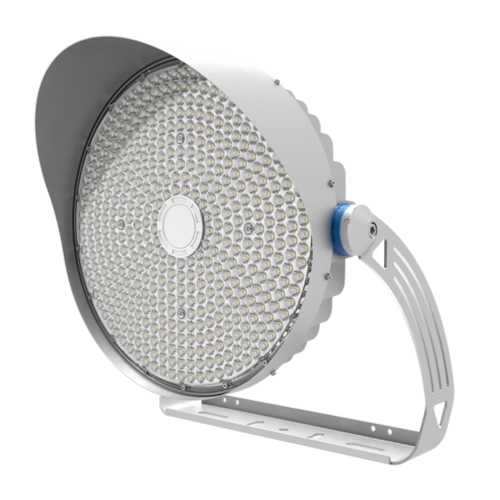

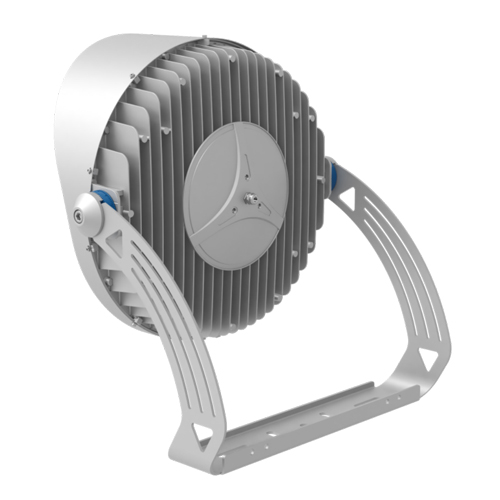

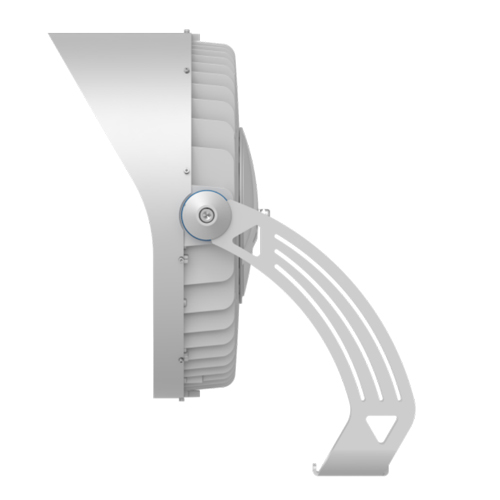

Led Sports&High Mast Light 1500W |
| Model |
FG1500W06 |
| Input Voltage |
100-277VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
1500W |
| Power Factor |
>0.95 |
| Optical design |
12°/25°/45°/60° |
| IP Rating |
IP66 |
| Operating Temperature |
-25°C~+60°C |
| Storage Temperature |
-25°C~+65°C |
| Relative Humidity |
10%-90% |
| LED Lifetime |
> 80,000 hrs @ LM70,LM80 |
| Safety Standards |
CE&Rohs |
B. Light Data
| Model |
FG1500W06 |
| Light Source |
LUMILEDS 5050 Chips |
| LED QTY |
540PCS |
| Colour Temperature |
2700~6000K |
| Luminous Flux |
240000lm |
| Luminous Efficiency |
160lm/w |
| Colour Rendering Index |
>80Ra |
C. Packing Data
| Model |
FG1500W06 |
| Product Dimension |
¢622mm |
| Pcs/CTN |
1 |
| Package Dimensions |
1059*774*300mm |
| Net weight |
56KG |
| Gross weight |
59.5KG |
