Product Features:
1. High Power, high lumen, high quality
2. Save 80% more energy compared with traditional lighting fixtures
3. Easy to install and use, secure and reliable
4. No UV or RF interference, No mercury or lead
5. Three-dimensional rotating bracket, the installation angle is more flexible
6. High quality, high efficiency, high CRI & luminous flux,
7. long life span>80000hrs
8. High brightness, low consumption, green for environment
9. Various lens,10°/20°/40°/60°/P50° for your widely beam angle choice
10. Meanwell led driver to ensure stability of light, it can work efficiently
11. AC100-277V in different countries and regions.other led driver is also available
12. Potection grade is IP66,IK10
Product Specification:
A.General data
| Product Name |

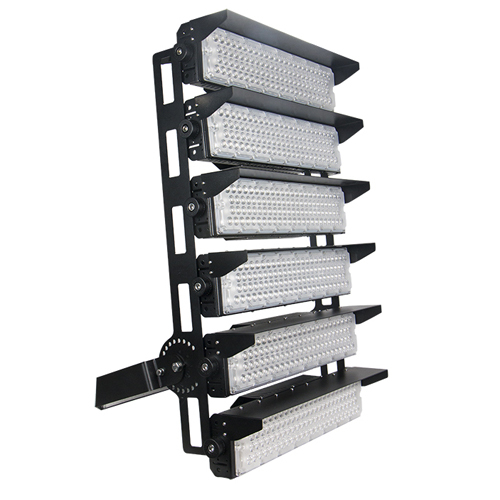

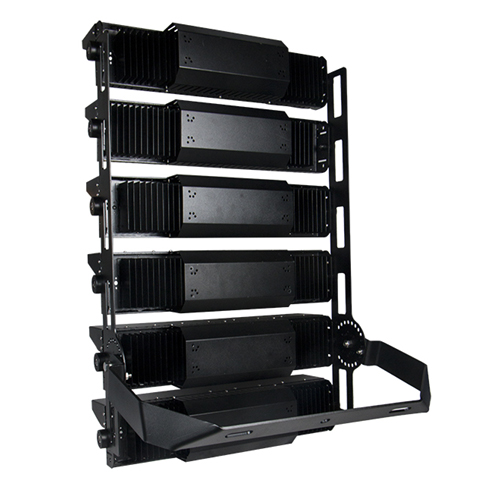

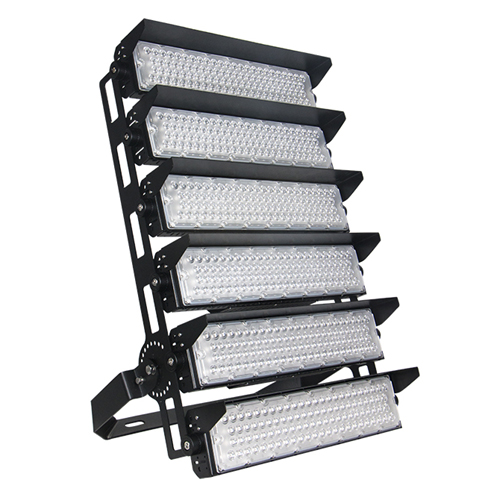

LED Stadium Light 1500W |
| Model |
FG1500W10 |
| Input Voltage |
100-277VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
1500W |
| Power Factor |
>0.95 |
| Optical design |
10°/20°/40°/60°/P50° |
| IP Rating |
IP66 |
| Operating Temperature |
-25°C~+45°C |
| Storage Temperature |
-25°C~+65°C |
| Relative Humidity |
10%-90% |
| LED Lifetime |
> 80,000 hrs @ LM70,LM80 |
| Safety Standards |
CE&Rohs |
B. Light Data
| Model |
FG1500W10 |
| Light Source |
LUMILEDS 5050 Chips |
| LED QTY |
96*6PCS |
| Colour Temperature |
2700~6000K |
| Luminous Flux |
225000lm |
| Luminous Efficiency |
150lm/w |
| Colour Rendering Index |
>80Ra |
C. Packing Data
| Model |
FG1500W10 |
| Product Dimension |
L630*W900*H240mm |
| Pcs/CTN |
1 |
| Package Dimensions |
645*1010*275mm |
| Net weight |
24.2KG |
| Gross weight |
25.2KG |
