Eco LED Flood Light

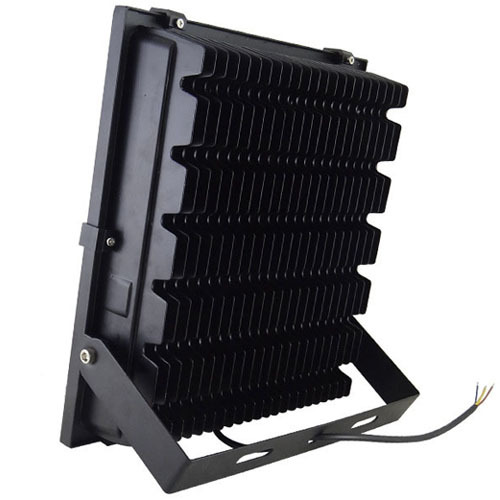

150W COB Led Flood Light

Item No.: FG150W30(COB)
1. Design for slim type flood light
2. Aluminum housing,good heat dissipation
3. Corrosion resistance,With powder coasting
4. SMD or COB Chips,High CRI,over 100lm/w
5. IP65 Waterproof
Request Quote
Description Product Dimension User Manual Application Cases

Led Flood Lights





                              150w-cob-led-flood-light-1
                              150w-cob-led-flood-light-2

Product Features:

1. Taking high-quality LED as a light source, energy saving and environmental protection;
2. Corrosion resistance.With powder coating.Suitable for harsh outdoor enviroment;
3. Compared to traditional light sources, saving more than 60%;
4. Light uniform and soft,high brightness,CRI(Ra),meet different environments;
5. Protection rate:IP65;
6. High quality LEDs and drivers are used;
7. Does not contain environmentally harmful mercury pollution, green; Energy saving;
8. Long Lifespan (up to 80,000 hours);


Product Specification:

A.General data

Product Name                                            Eco LED Flood Light 150W
Model FG150W17
Input Voltage                                     100-277VAC
Frequency                                         50/60 Hz
Power Consumption                                          150W
Power Factor                                          >0.95
Optical design                                           120°
IP Rating                                           IP65
Operating Temperature                                    -25°C~+45°C
Storage Temperature                                    -25°C~+65°C
Relative Humidity                                       10%-90%
LED Lifetime                      > 80,000 hrs @ LM70,LM80
Safety Standards                                    CE&Rohs

B. Light Data

Model                                                                         FG150W17
Light Source                                   Epistar Chips
LED QTY                                        3PCS
Colour Temperature                                   2700~7000K
Luminous Flux                                      15000lm
Luminous Efficiency                                      100lm/w
Colour Rendering Index                                       >80Ra

C. Packing Data

Model                                                                        FG150W17
Product Dimension                                 410*350*105mm
Pcs/CTN                                             3
Package Dimensions                                 355*290*420mm
Net weight                                         13.8KG
Gross weight                                        15.0KG
150w-cob-led-flood-light-size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
20w-eco-led-flood-light-wire-drawing












Installation and schematic:

20w-eco-led-flood-light-installations
LED flood light is widely used in the single building, the historical building exterior lighting, the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.

cob-led-flood-light-applications
