Product Features:
1. Pure copper pipe quickly transfer heat to heatsink;
2. Heat transfer rate over 200 times of the common aluminum radiator;
3. Different reflector sizes,45°/60°/90°/120° reflector for option;
4. Four easy installation methods;
5. SMD3030 led chips,high CRI,high light efficiency,brighter luminance;
6. Surge voltage resistance is up to 6000V,surge current up to 65A;
7. Also can match with smart control system like Dali,ZigBee;
8. Long Lifespan (up to 80,000 hours);
Product Specification:
A.General data
| Product Name |

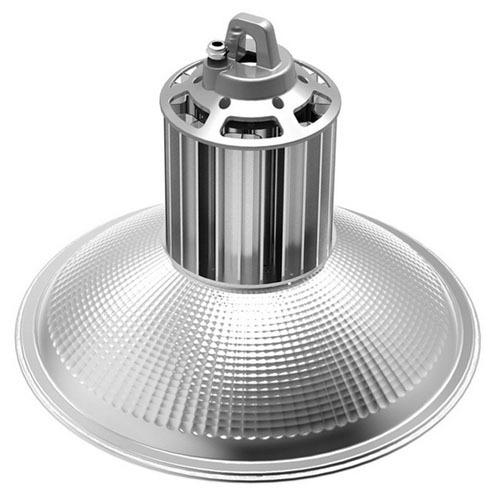

LED High Bay Light Fixture 150W |
| Model |
GKD150W06 |
| Input Voltage |
100-277VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
150W |
| Power Factor |
>0.95 |
| Optical design |
45°/60°/90°/120° |
| IP Rating |
IP54 |
| Operating Temperature |
-25°C~+45°C |
| Storage Temperature |
-25°C~+65°C |
| Relative Humidity |
10%-90% |
| LED Lifetime |
> 80,000 hrs @ LM70,LM80 |
| Safety Standards |
CE&Rohs |
B. Light Data
| Model |
GKD150W06 |
| Light Source |
LUMILEDS 3030 Chips |
| LED QTY |
150PCS |
| Colour Temperature |
2700~7000K |
| Luminous Flux |
18000lm |
| Luminous Efficiency |
120lm/w |
| Colour Rendering Index |
>80Ra |
C. Packing Data
| Model |
GKD150W06 |
| Product Dimension(Radiator) |
Ø182*240mm |
| Pcs/CTN |
1 |
| Package Dimensions |
255*255*390mm |
| Net weight |
3.5KG |
| Gross weight |
4KG |
- Be sure disconnect power before installing, don’t construction with electricity.
- Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
- Input product line, brown is “L”, blue is “N” , yellow-green is GND.
- Be sure wiring is closed and prevent leakage, when installing.
- The lamp can not be used in violation of any fire regulations.
Installation and schematic:
Led High Bay Light Fixture is design for commercial or industrial lighting, widely used for the factory lighting,warehouse lighting,workshop lighting,station lighting,etc.
