UFO LED High Bay Light

You are here: Home > LED High Bay Light > UFO LED High Bay Light

Description Product Dimension User Manual Application Cases

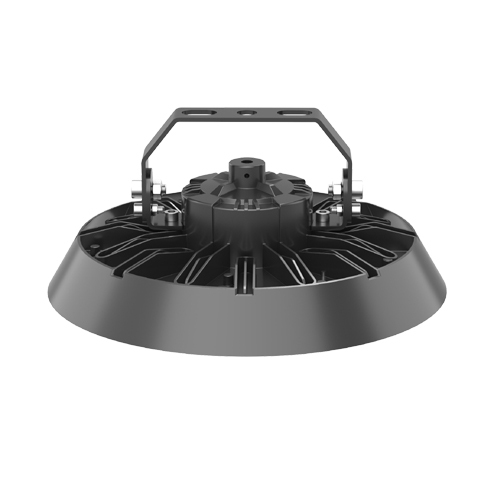

150w-ufo-led-high-bay-light-1

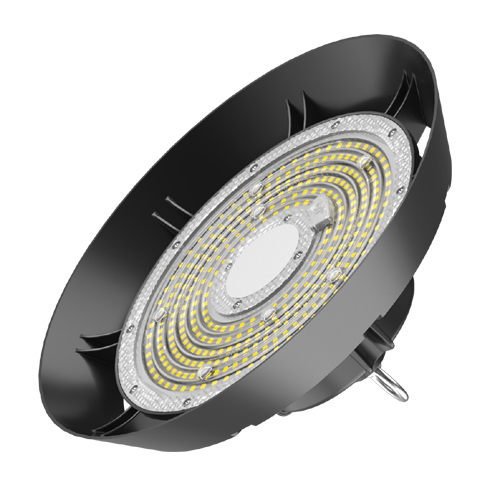

150w-ufo-led-high-bay-light-2

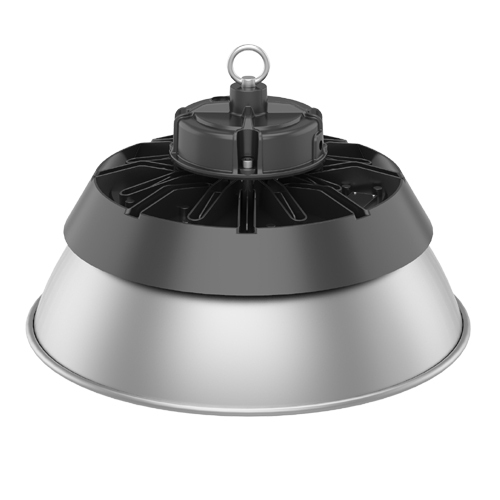

150w-ufo-led-high-bay-light-3
150w-ufo-led-high-bay-light-4

Product Features:

Name: 150W UFO Led High Bay Light
Brand: Fanguang Lighting
SKU: GKD150W20
Availability: InStock
Rating: 5 (1 reviews)

1. Hollow design, increases the industrial appearance, maximizes the heat dissipation area to achieve excellent thermal management;
2. Incorporates die-casting technology into the heat sink, ADC12 with 92% purity, thermal conductivity 96W/(m*k)@25℃;
3. Smart lighting control options: PIR sensor, Microwave sensor, Zigbee etc.;
4. Top LED brand chips and drivers, ensures product high luminous efficacy & longevity, OSRAM & Meanwell&Sosen;
5. Optical lighting distributions: 60°, 90°,120°;
6. High luminous efficacy: 150lm/W, 170lm/W, 190lm/W, 210lm/w;
7. Ingress protection & impact protection rating: IP66 & IK10;
8. Long Lifespan (up to 100,000 hours);

Product Specification:

A.General data

Product Name	UFO LED High Bay Light 150W
Model	GKD150W20
Input Voltage	100-277VAC
Frequency	50/60 Hz
Power Consumption	150W
Power Factor	>0.95
Optical design	60°/90°/120°
IP/IK Rating	IP66/IK10
Operating Temperature	-25°C~+45°C
Storage Temperature	-25°C~+65°C
Relative Humidity	10%-90%
LED Lifetime	> 100,000 hrs @ LM70,LM80
Safety Standards	CE&Rohs

B. Light Data

Model	GKD150W20
Light Source	Osram/Lumileds 2835 Chips
LED QTY	300 PCS
Colour Temperature	2700~7000K
Luminous Flux	Max:31500lm
Luminous Efficiency	150lm/w,170lm/w,190lm/w,210lm/w
Colour Rendering Index	>80Ra

C. Packing Data

Model	GKD150W20
Product Dimension	Ø260146mm/Ø282122mm(Eco)
Pcs/CTN	1
Package Dimensions	336336166mm
Net weight	2.2KG
Gross weight	2.5KG

Be sure disconnect power before installing, don’t construction with electricity.
Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
Input product line, brown is “L”, blue is “N” , yellow-green is GND.
Be sure wiring is closed and prevent leakage, when installing.
The lamp can not be used in violation of any fire regulations.

300w-ufo-led-high-bay-light-wire-drawing

Installation and schematic:

UFO-Led-High-Bay-Light-Installation

UFO Led High Bay Light is design for commercial led or warehouse lighting,led high bay lights widely used for the factory lighting,warehouse lighting,workshop lighting,lighting,etc.

ufo-led-high-bay-light-applications
