Product Features:

Name: 200W Led Canopy Light
Brand: Fanguang Lighting
SKU: CP200W06
Availability: InStock
Rating: 5 (1 reviews)

1. LED high luminous efficiency and long Lifespan (up to 100,000 hours);
2. High efficiency LED Driver, the wide range input voltage AC120-277V;
3. No RF interference, No IR/UV radiation ,no mercury pollution;

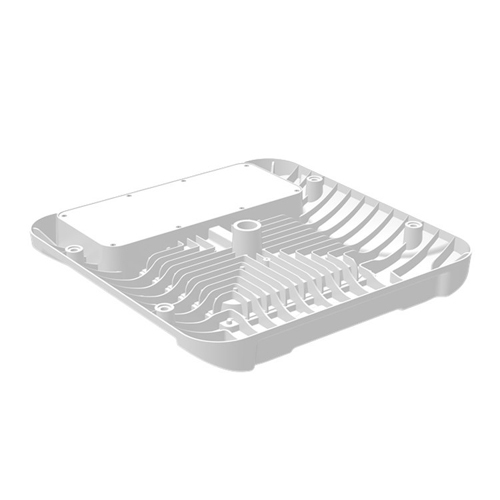

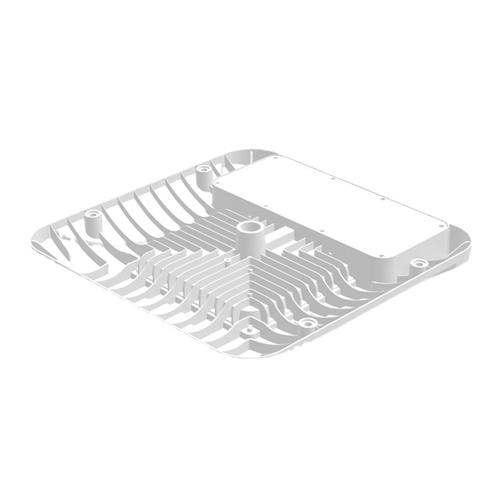

4. Die-cast aluminum cooling design, high quality and better cooling for LED Tj < 85℃;
5. Hanging type internal wiring, anti-slip design back cover, easy installation and high safety;
6. Excellent optics design, greatly improve the light utilization and evenness;
7. LED Gas Station Canopy Light series can be widely used in indoor or outdoor lighting (wet location), excellent for gas station, museums, art galleries,shopping malls, parking garage, buildings, lawn and so on;

Product Specification:

A.General data

Product Name	LED Canopy Light 200W
Model	CP200W06
Input Voltage	100-277VAC
Frequency	50/60 Hz
Power Consumption	200W
Power Factor	>0.95
Optical design	120°
IP/IK Rating	IP65/IK08
Operating Temperature	-25°C~+45°C
Storage Temperature	-25°C~+65°C
Relative Humidity	10%-90%
LED Lifetime	> 100,000 hrs @ LM70,LM80
Safety Standards	CE&Rohs

B. Light Data

Model	CP200W06
Light Source	Osram/Lumileds 3030 Chips
LED QTY	280 PCS
Colour Temperature	2700~7000K
Luminous Flux	28000-30000lm
Luminous Efficiency	140lm/w
Colour Rendering Index	>80Ra

C. Packing Data

Model	CP200W06
Product Dimension	54054067mm
Pcs/CTN	1
Package Dimensions	585585115mm
Net weight	6.8KG
Gross weight	7.9KG

Be sure disconnect power before installing, don’t construction with electricity.
Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
Input product line, brown is “L”, blue is “N” , yellow-green is GND.
Be sure wiring is closed and prevent leakage, when installing.
The lamp can not be used in violation of any fire regulations.

300w-ufo-led-high-bay-light-wire-drawing

Installation and schematic:

UFO-Led-High-Bay-Light-Installation

LED Gas Station Canopy Light series can be widely used in indoor or outdoor lighting (wet location), excellent for gas station, museums, art galleries,shopping malls, parking garage, buildings, lawn and so on.

led-canopy-light-application
