Product Features:

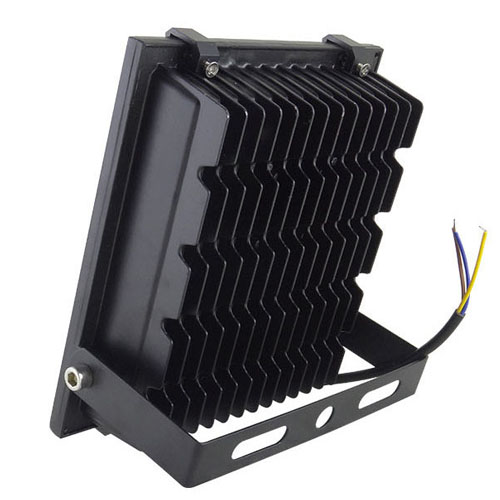

Name: 20W Eco Led Flood Light
Brand: Fanguang Lighting
SKU: FG20W30
Availability: InStock
Rating: 5 (1 reviews)

1. Taking high-quality LED as a light source, energy saving and environmental protection;
2. Corrosion resistance.With powder coating.Suitable for harsh outdoor enviroment;
3. Compared to traditional light sources, saving more than 60%;
4. Light uniform and soft,high brightness,CRI(Ra),meet different environments;
5. Protection rate:IP65;
6. High quality LEDs and drivers are used;
7. Does not contain environmentally harmful mercury pollution, green; Energy saving;
8. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name	Eco LED Flood Light 20W
Model	FG20W17
Input Voltage	100-277VAC
Frequency	50/60 Hz
Power Consumption	20W
Power Factor	>0.95
Optical design	120°
IP Rating	IP65
Operating Temperature	-25°C~+45°C
Storage Temperature	-25°C~+65°C
Relative Humidity	10%-90%
LED Lifetime	> 80,000 hrs @ LM70,LM80
Safety Standards	CE&Rohs

B. Light Data

Model	FG20W17
Light Source	Samsung SMD Chips
LED QTY	40PCS
Colour Temperature	2700~7000K
Luminous Flux	2000lm
Luminous Efficiency	100lm/w
Colour Rendering Index	>80Ra

C. Packing Data

Model	FG20W17
Product Dimension	22018560mm
Pcs/CTN	15
Package Dimensions	575320235mm
Net weight	13.5KG
Gross weight	15.0KG

Be sure disconnect power before installing, don’t construction with electricity.
Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
Input product line, brown is “L”, blue is “N” , yellow-green is GND.
Be sure wiring is closed and prevent leakage, when installing.
The lamp can not be used in violation of any fire regulations.

Installation and schematic:

20w-eco-led-flood-light-installations

LED flood light is widely used in the single building, the historical building exterior lighting, the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.

slim-led-flood-light-applications
