Eco LED Flood Light

You are here: Home > LED Flood Light > Eco LED Flood Light

Description Product Dimension User Manual Application Cases

Product Features:

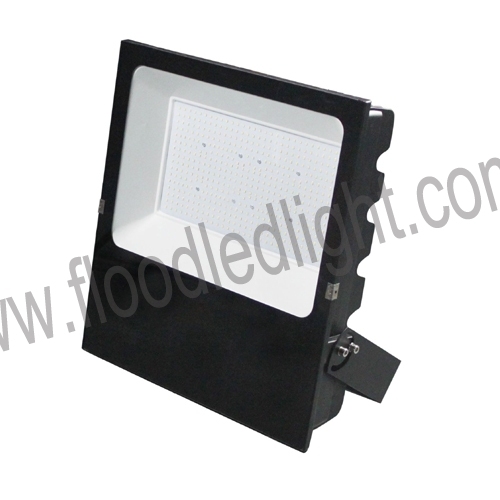

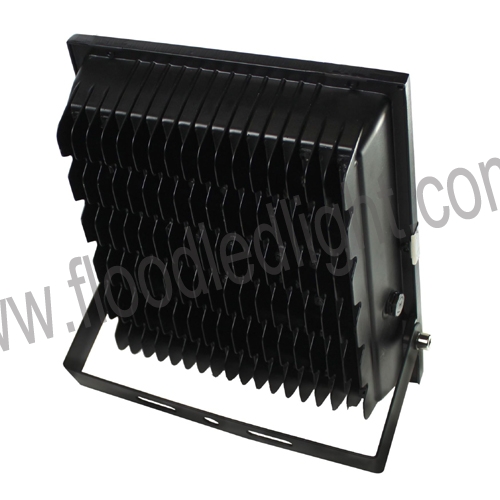

Name: 240W Eco Led Flood Light
Brand: Fanguang Lighting
SKU: FG240W30
Availability: InStock
Rating: 5 (1 reviews)

1. Taking high-quality LED as a light source, energy saving and environmental protection;
2. Corrosion resistance.With powder coating.Suitable for harsh outdoor enviroment;
3. Compared to traditional light sources, saving more than 60%;
4. Light uniform and soft,high brightness,CRI(Ra),meet different environments;
5. Protection rate:IP66;
6. High quality LEDs and drivers are used;
7. Does not contain environmentally harmful mercury pollution, green; Energy saving;
8. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name	Eco LED Flood Light 240W
Model	FG240W17
Input Voltage	100-277VAC
Frequency	50/60 Hz
Power Consumption	240W
Power Factor	>0.95
Optical design	120°
IP Rating	IP66
Operating Temperature	-25°C~+45°C
Storage Temperature	-25°C~+65°C
Relative Humidity	10%-90%
LED Lifetime	> 80,000 hrs @ LM70,LM80
Safety Standards	CE&Rohs

B. Light Data

Model	FG240W17
Light Source	Samsung SMD Chips
LED QTY	480PCS
Colour Temperature	2700~7000K
Luminous Flux	36000lm
Luminous Efficiency	150lm/w,130lm/w,100lm/w
Colour Rendering Index	>80Ra

C. Packing Data

Model	FG240W17
Product Dimension	38035097mm
Pcs/CTN	1
Package Dimensions	450390125mm
Net weight	5.6KG
Gross weight	6.0KG

Be sure disconnect power before installing, don’t construction with electricity.
Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
Input product line, brown is “L”, blue is “N” , yellow-green is GND.
Be sure wiring is closed and prevent leakage, when installing.
The lamp can not be used in violation of any fire regulations.

Installation and schematic:

20w-eco-led-flood-light-installations

LED flood light is widely used in the single building, the historical building exterior lighting, the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.

slim-led-flood-light-applications
