Product Features:
1.Integrated reflector and entire aluminum lamp cooling structure;2.Ultra-thin sleek design, fashionable and classical3.Innovative G-type buckle technology, guard against glass falling off, easy to install;4.High-brightness SMD LED (luminous flux maintenance factor of 95%), long life, high CRI, pure color;5.Choose stable performance constant current source (fast start, no flicker, no noise);6.IP66 Waterproof as request;7.Does not contain environmentally harmful mercury pollution, green; Energy saving (power consumption is 80% compared with traditional Spotlights);8.Long Lifespan (up to 100,000 hours); Product Specification:
A. General data |
Name |

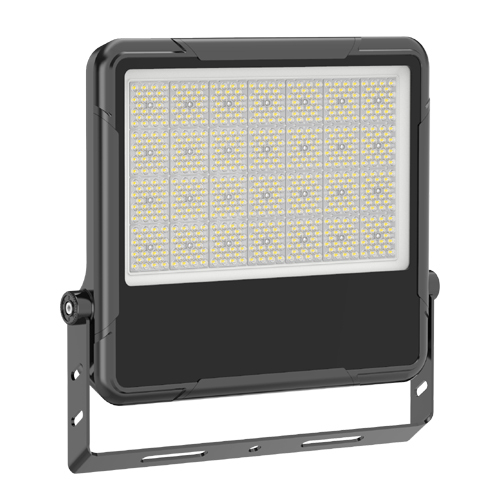

Slim LED Flood Light 250W |
Model |
FG250W13 |
Input Voltage |
100-277VAC |
Frequency |
50/60 Hz |
Power Consumption |
250W |
Power Factor |
>0.95 |
Beam Angle |
30°/60°/90°/120°/TM2/TM3 |
IP Rating |
IP66 |
Operating Temperature |
-25°C~+45°C |
Storage Temperature |
-25°C~+65°C |
Relative Humidity |
10%-90% |
LED Lifetime |
> 100,000 hrs @ LM70,LM80 |
Safety Standards |
CE&Rohs |
|
Model |
FG250W13 |
Input Voltage |
100-277VAC |
Frequency |
50/60 Hz |
Power Consumption |
250W |
Power Factor |
>0.95 |
Beam Angle |
30°/60°/90°/120°/TM2/TM3 |
IP Rating |
IP66 |
Operating Temperature |
-25°C~+45°C |
Storage Temperature |
-25°C~+65°C |
Relative Humidity |
10%-90% |
LED Lifetime |
> 100,000 hrs @ LM70,LM80 |
Safety Standards |
CE&Rohs |
|
B. Light Data |
Model |
FG250W13 |
Light Source |
Luminous/Osram 2835 Led Chips |
LED QTY |
600PCS |
Colour Temperature |
2700-7000K |
Luminous Flux |
37500 lm |
Luminous Efficiency |
150 lm/W |
Colour Rendering Index |
>80Ra |
|
C. Packing Data |
Model |
FG250W13 |
Product Dimension |
480*460*54 mm |
Pcs/CTN |
1 |
Package Dimensions |
520*510*68mm |
Net weight/pcs |
7.85KG |
Gross weight/pcs |
8.75KG |
- Be sure disconnect power before installing, don’t construction with electricity.
- Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
- Input product line, brown is “L”, blue is “N” , yellow-green is GND.
- Be sure wiring is closed and prevent leakage, when installing.
- The lamp can not be used in violation of any fire regulations.
Installation and schematic:
250W Outdoor LED flood light is widely used in the single building, the historical building exterior lighting, also waterproof Led flood light used in the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.
