300W Led Street Lamp Fixture

Item No.: LD300W
1. Free of dust and water, suitable for outdoor
2. It can withstand a level 17 hurricane
3. All aluminum housing for the heat dissipating
4. Ultraithin design,convenient for storage, transportation and maintenance.
5. IP66 Waterproof, 5 Years warranty
Request Quote
Description Product Dimension User Manual Application Cases

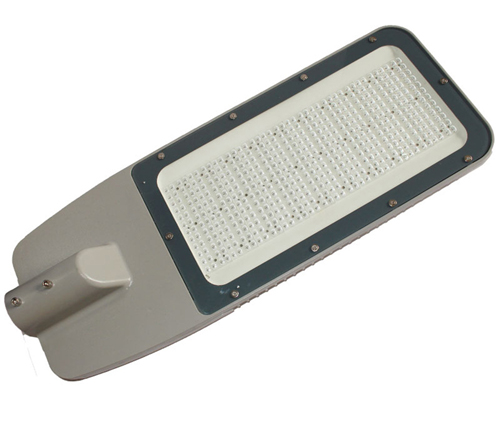

                              250w-philips-led-street-light
                              100w-philips-led-street-light-2

Product Features:

1. All aluminum housing for the heat dissipating, greatly extends the lifespan of lighting source;
2. High pressure casting, procesed by painting, solid an corrosion resisting;
3. Ultraithin design, convenient for storage, transportation and maintenance
;
4. Free of dust and water, suitable for outdoor
;
5. It can withstand a level 17 hurricane;
6. Lumileds 3030 or 5050 as lights source, over 130lm/w output and 80~90Ra

7. Long Lifespan (up to 80,000 hours);

Product Specification:

A.General data

Product Name                                                   LED Street Lamp Fixture 300W
Model   LD300W17
Input Voltage                                100-277VAC
Frequency                                    50/60 Hz
Power Consumption                                     300W
Power Factor                                    >0.95
Optical design                                  70°*150°
IP Rating                                      IP66
Operating Temperature                              -25°C~+45°C
Storage Temperature                              -25°C~+65°C
Relative Humidity                                  10%-90%
LED Lifetime                      > 80,000 hrs @ LM70,LM80
Safety Standards                                   CE&Rohs

B. Light Data

Model                                                                                  LD300W17
Light Source                 LUMILEDS 3030 or 5050 Chips
LED QTY                                    480PCS
Colour Temperature                                 2700~7000K
Luminous Flux                                    36000lm
Luminous Efficiency                                    130lm/w
Colour Rendering Index                                     >80Ra

C. Packing Data

Model                                                                                 LD300W17
Product Dimension                                855*318*132mm
Pcs/CTN                                           1
Package Dimensions                                900*350*190mm
Net weight                                          11KG
Gross weight                                         12.5KG

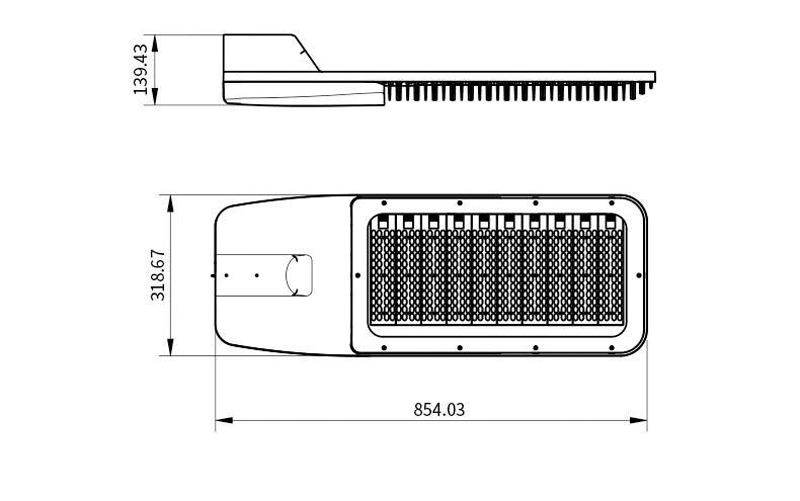

300w-philips-led-street-light-size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
300w-ufo-led-high-bay-light-wire-drawing
Installation and schematic:
LED-Street-Light-Installation
Industrial Led street light,outdoor led street lamps and led street light fixture can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc.

led-shoebox-light-applications
