Product Features:
1. Excellent heat sink with internal Copper pipe design;
2. 5°/10°/20°/30°/60° beam angle for choice.light trans-mittance can reach up to 92%;
3. Cree Led Chips,cost effective compared with COB solution;
4. Copper pipe connected with zipped fins heat sink.High thermal efficiency and rapid cooling;
5. 17 settings on the bracket.288 degree adjust angle;
6. Pure aluminum reflector intergrated with Silicone ring and tempered glass cover,waterproof,anti-fog and anti-frost;
7. Long Lifespan (up to 80,000 hours);
Product Specification:
A.General data
| Product Name |

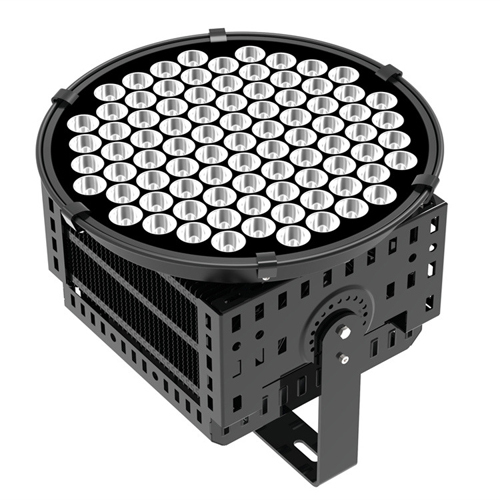

High Power LED Flood Light 500W |
| Model |
FG500W05 |
| Input Voltage |
100-277VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
500W |
| Power Factor |
>0.95 |
| Optical design |
5°/10°/20°/30°/60° |
| IP Rating |
IP65 |
| Operating Temperature |
-25°C~+45°C |
| Storage Temperature |
-25°C~+65°C |
| Relative Humidity |
10%-90% |
| LED Lifetime |
> 80,000 hrs @ LM70,LM80 |
| Safety Standards |
CE&Rohs |
B. Light Data
| Model |
FG500W05 |
| Light Source |
CREE XML2 Chips |
| LED QTY |
84PCS |
| Colour Temperature |
2700~6000K |
| Luminous Flux |
65000lm |
| Luminous Efficiency |
130lm/w |
| Colour Rendering Index |
>80Ra |
C. Packing Data
| Model |
FG500W05 |
| Product Dimension |
Ø480*H391mm |
| Pcs/CTN |
1 |
| Package Dimensions |
570*570*415mm |
| Net weight |
15.6KG |
| Gross weight |
19.8KG |
