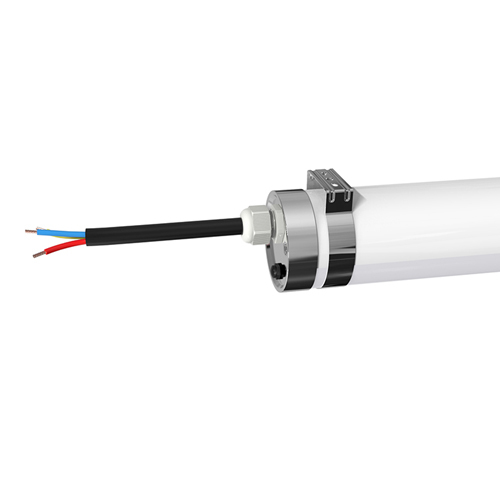

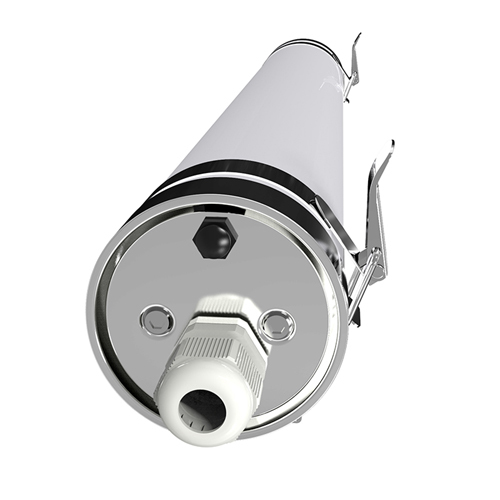

50W IP69K Led Tri Proof Light
50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light 50W IP69K Led Tri Proof Light

50W IP69K Led Tri Proof Light

Item No.: SFD5FT50W08
1. Dustproof, Corrosion-proof, Pressure-proof, and Vibration proof
2. High Output LEDs, up to 130lm/W, 150lm/W optional
3.  IP67 waterproof, IK10 impact design
4. Environmentally friendly, no mercury, No UV, No IR
5. 5 Year Warranty on complete fixtur
Request Quote
Description Product Dimension User Manual Application Cases

led-tri proof-light-manufacturer
ip69k led tri-proof light-1
ip69k led tri-proof light-2
ip69k led tri-proof light-3


Product Features:

• High Output LED’s, up to 130lm/W, 150lm/W optional
• High CRI >80
• IK10 impact design
• High Transmittance PC cover, no shadow
• Flicker-Free driver, High PF>0.96 low THD 12% driver
• Environmentally friendly, no mercury, No UV, No IR
• Through wiring 5×2.5mm² Linkable
• IP66 waterproof, dustproof, corrosion-proof, pressure-proof, and vibration proof
• Energy Efficiency Grade: A+
• Quick Start instant 100% luminous flux
• 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
• Certificate: CE, RoHS, ENEC
• Optional: 1-10V Dimming, 3 steps dimming microwave sensor, 3 hours 30% Emergency Battery Backup
• Installation: Hanging Mount & Surface Mount

Product Specification:

A.General data

Product Name                                                   IP69K LED Tri Proof Light 50W
Model SFD50W08
Input Voltage                                100-277VAC
Frequency                                    50/60 Hz
Power Consumption                                     50W
Power Factor                                    >0.95
Optical design                                      120°
IP Rating                                      IP65
Operating Temperature                              -25°C~+45°C
Storage Temperature                              -25°C~+65°C
Relative Humidity                                  10%-90%
LED Lifetime                      > 50,000 hrs @ LM70,LM80
Safety Standards                                   CE&Rohs

B. Light Data

Model                                                                               SFD50W08
Light Source                              SMD2835 Chips
LED QTY                                    288PCS
Colour Temperature                                 2700~7000K
Luminous Flux                                    6500lm
Luminous Efficiency                           130lm/w or150lm/w
Colour Rendering Index                                     >80Ra

C. Packing Data

Model                                                                                 SFD50W08
Product Dimension                                  L1500*Ø75mm
Pcs/CTN                                           6
Package Dimensions                                 1590*270*200mm
Net weight                                          18.0KG
Gross weight                                         20.0KG
led tri proof light size
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
300w-ufo-led-high-bay-light-wire-drawing
Installation and schematic:
IP65-Tri-proof-light-Ceiling-Mounted-installation
IP65-Tri-proof-light-Hanging-installation
Led Tri-proof Light widely applied in commercial lighting, public lighting and industrial lighting, such as supermarket, exhibition hall, parking lot,tunnel ,train station, airport, factory,warehouse and food processing plant.
led-tri-proof-light-applications
