Product Features:

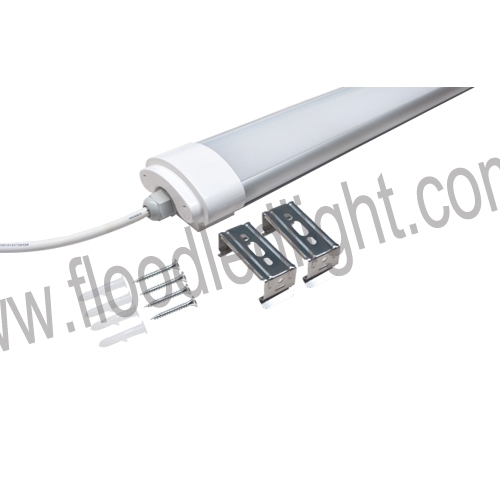

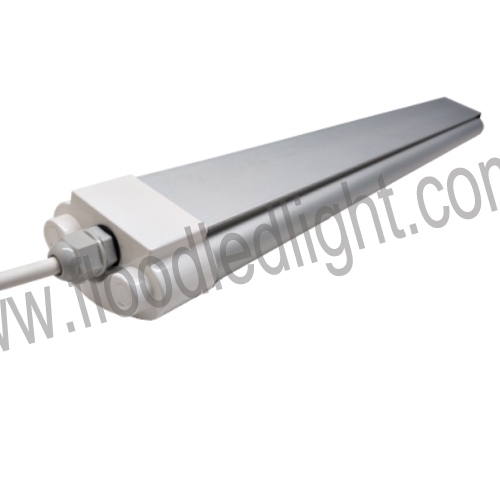

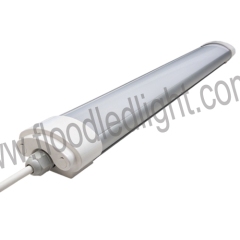

Name: 50W Led Tri Proof Light
Brand: Fanguang Lighting
SKU: SFD50W05
Availability: InStock
Rating: 5 (1 reviews)

1. LED Tri Proof light use Aluminum 6063 heatsink + PC cover;
2. Excellent heat dissipation depending on whole aluminum housing;
3. IP65 waterproof, dust, corrosion and pressure-proof Patent and functional design;
4. Efficiency up to 150lm/w, 50,000hours, IK10, Surge protection: 4kv
5. 20w, 30w, 40w, 50w, 60wattage and 2ft, 3ft, 4ft, 5ft length for option;
6. SMD2835 as lights source, over 150lm/w output and 80~90Ra
7. Long Lifespan (up to 50,000 hours);

Product Specification:

A.General data

Product Name	LED Tri Proof Light 50W
Model	SFD50W05
Input Voltage	100-277VAC
Frequency	50/60 Hz
Power Consumption	50W
Power Factor	>0.95
Optical design	120°
IP Rating	IP65
Operating Temperature	-25°C~+45°C
Storage Temperature	-25°C~+65°C
Relative Humidity	10%-90%
LED Lifetime	> 50,000 hrs @ LM70,LM80
Safety Standards	CE&Rohs

B. Light Data

Model	SFD50W05
Light Source	SMD2835 Chips
LED QTY	315PCS
Colour Temperature	2700~7000K
Luminous Flux	7500lm
Luminous Efficiency	120lm/w or150lm/w
Colour Rendering Index	>80Ra

C. Packing Data

Model	SFD50W05
Product Dimension	L1500W80H45mm
Pcs/CTN	12
Package Dimensions	1600280225mm
Net weight	24.0KG
Gross weight	25.0KG

Be sure disconnect power before installing, don’t construction with electricity.
Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
Input product line, brown is “L”, blue is “N” , yellow-green is GND.
Be sure wiring is closed and prevent leakage, when installing.
The lamp can not be used in violation of any fire regulations.

300w-ufo-led-high-bay-light-wire-drawing

Installation and schematic:
IP65-Tri-proof-light-Ceiling-Mounted-installation

IP65-Tri-proof-light-Hanging-installation

Led Tri-proof Light widely applied in commercial lighting, public lighting and industrial lighting, such as supermarket, exhibition hall, parking lot,tunnel ,train station, airport, factory,warehouse and food processing plant.
led-tri-proof-light-applications
