Modular LED Flood Light

You are here: Home > LED Flood Light > Modular LED Flood Light

Description Product Dimension User Manual Application Cases

Product Features:

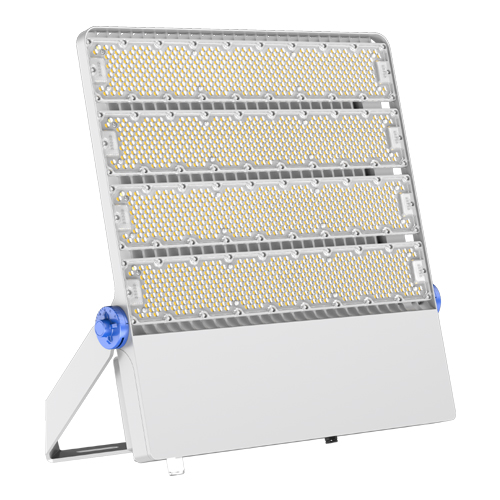

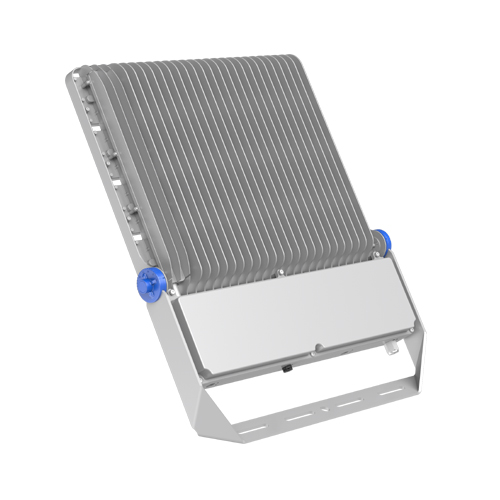

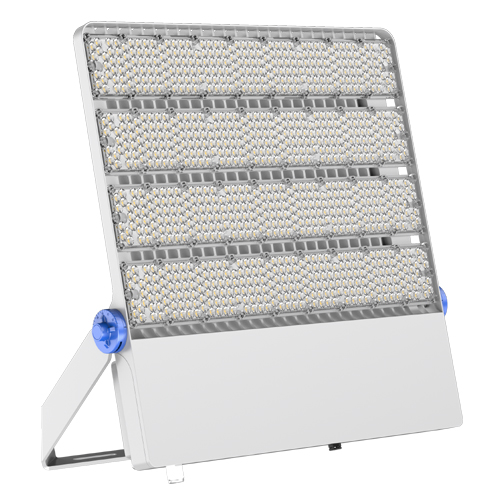

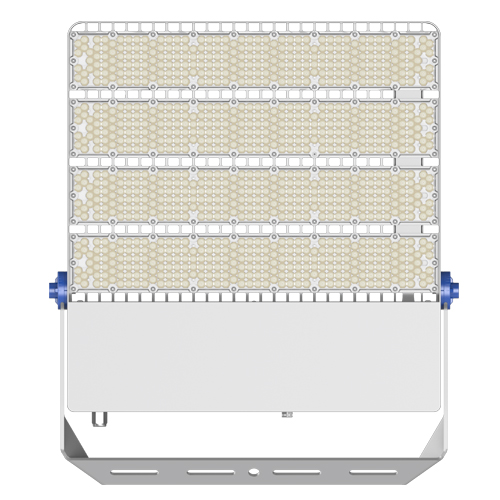

Name: 1000W Modular Led Flood Light
Brand: Fanguang Lighting
SKU: FG1000W18
Availability: InStock
Rating: 5 (1 reviews)

1. Design for widely used as led flood light and led tunnel light;
2. Corrosion resistance.With Anodic oxidation process.Suitable for harsh outdoor enviroment;
3. ADC12 aluminum shell,Good Heat Dissipation;
4. Variety of lens design,can meet different reuquest depend on application;
5. Protection rate:IP66/IK10;
6. High quality LEDs and drivers are used;
7. Does not contain environmentally harmful mercury pollution, green;Energy saving;
8. Long Lifespan (up to 100,000 hours);

Product Specification:

A.General data

Product Name	LED Flood Light 1000W
Model	FG1000W18
Input Voltage	100-277VAC
Frequency	50/60 Hz
Power Consumption	1000W
Power Factor	>0.95
Optical design	15°/30°/60°/90°/P6
IP Rating	IP66
Operating Temperature	-25°C~+45°C
Storage Temperature	-25°C~+65°C
Relative Humidity	10%-90%
LED Lifetime	> 100,000 hrs @ LM70,LM80
Safety Standards	CE&Rohs

B. Light Data

Model	FG1000W18
Light Source	LUMILEDS 3030 Chips
LED QTY	2524/4184PCS
Colour Temperature	2700~6000K
Luminous Flux	180000lm
Luminous Efficiency	160lm/w or 180lm/w
Colour Rendering Index	>80Ra

C. Packing Data

Model	FG1000W18
Product Dimension	58966760mm
Pcs/CTN	1
Package Dimensions	69061080mm
Net weight	12.2KG
Gross weight	14.2KG

Be sure disconnect power before installing, don’t construction with electricity.
Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
Input product line, brown is “L”, blue is “N” , yellow-green is GND.
Be sure wiring is closed and prevent leakage, when installing.
The lamp can not be used in violation of any fire regulations.

100w-led-tunnel-light-fixtures-wire-drawing

Installation and schematic:

100w-led-tunnel-light-fixtures-install

High Grade Led Flood light is widely used in the single building, the historical building exterior lighting, the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.

100w-led-tunnel-light-applications
