Slim LED Street Light

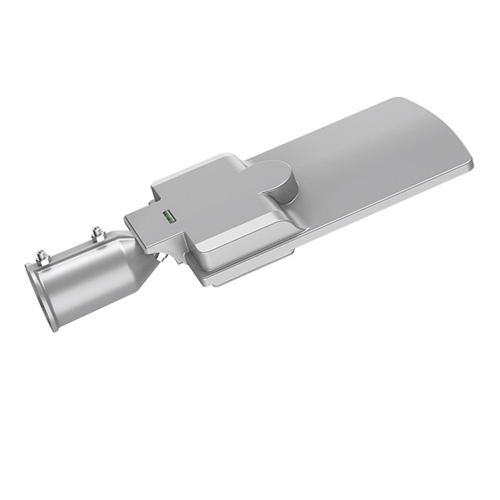

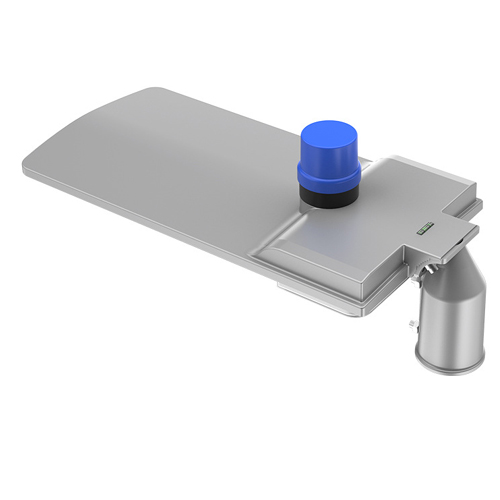

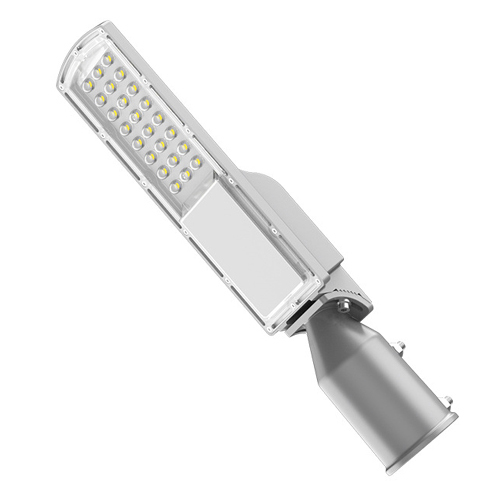

30W Slim Led Street Light

Item No.: LD30W12
1. ADC12 die-casting molding, high thermal conductivity, low light decay
2. It can withstand a level 17 hurricane
3. The whole aluminum lamp is to heat dissipation
4. LUMILEDS 2835 Chips,High CRI,over 150lm/w
5. IP66 Waterproof, 5 Years warranty
Request Quote
Description Product Dimension User Manual Application Cases

street light
Product Features:

1. Taking brander led drivers,with over-temperature protection,high PF,SPD and 0/1-10V,Dali-2.0 Dimming;
2. ADC12 die-casting molding,high thermal conductivity,low temperature,low light decay ;
3. Taking PC optical lens,anti-UV,IK10 grade,above 94% light transmittance;
4. With a waterproof protection grade reaching IP66;
5. It can withstand a level 17 hurricane;
6. Lumileds 2835 as lights source, over 150lm/w output and 80~90Ra;
7. Long Lifespan (up to 100,000 hours);

Product Specification:

A.General data

Product Name          Slim LED Street Light 30W
Model  LD30W12
Input Voltage  100-277VAC
Frequency  50/60 Hz
Power Consumption 30W
Power Factor >0.95
Optical design 70°*140°
IP Rating IP66
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 100,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data
Model                         LD30W12
Light Source           LUMILEDS 2835 Chips
LED QTY         56PCS
Colour Temperature           2700~7000K
Luminous Flux         4500lm
Luminous Efficiency          150lm/w
Colour Rendering Index          >80Ra

C. Packing Data
Model                                                   LD30W12
Product Dimension            425*108*96mm
Pcs/CTN            1
Package Dimensions              415*190*145mm
Net weight          1.5KG
Gross weight          1.85KG
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.

Installation and schematic:

Slim Led Street Light is widely used in all kinds of road lighting:express way,Trunk Road and Welcome Road,main roads to government agencies and large public buildings,road of downtown and Business center secondary main road, branch,residential roads and sidewalk,also high power led street light can be used in general building,square,goods yard,and scenic spot.
