Product Features:

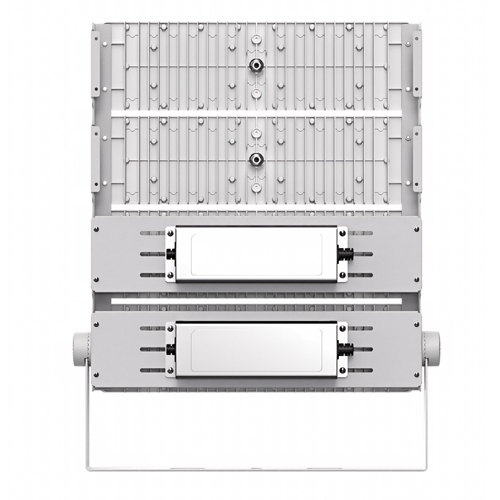

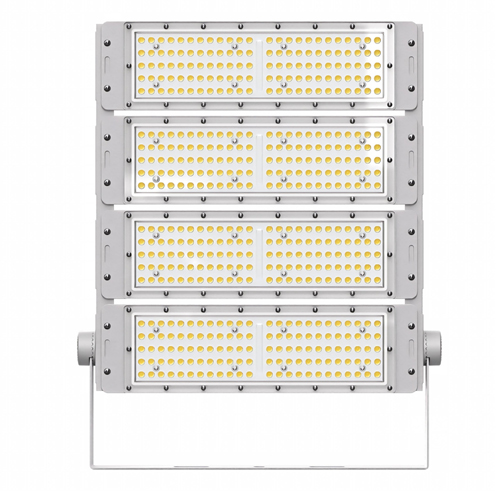

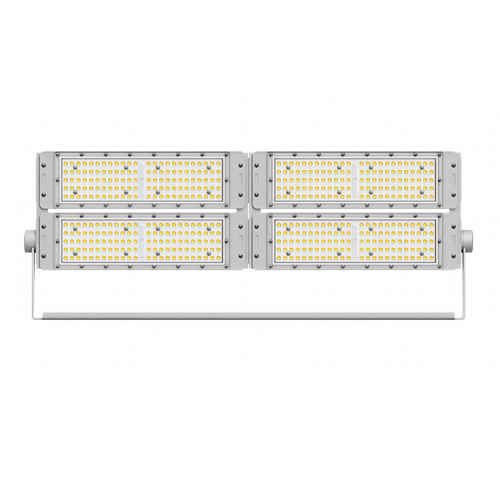

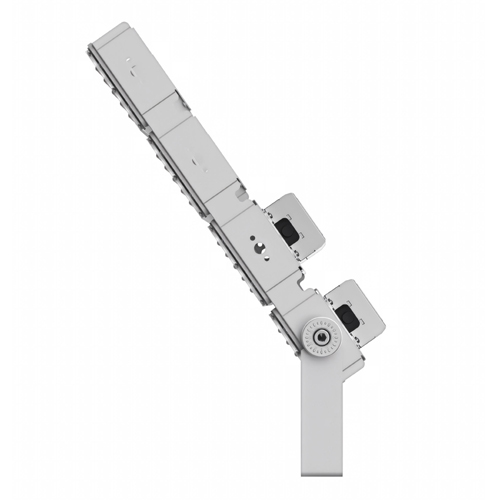

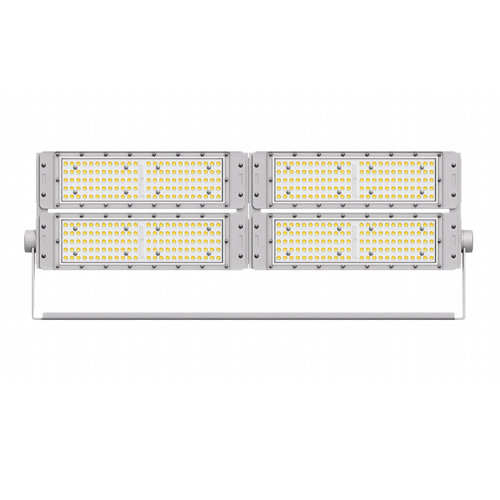

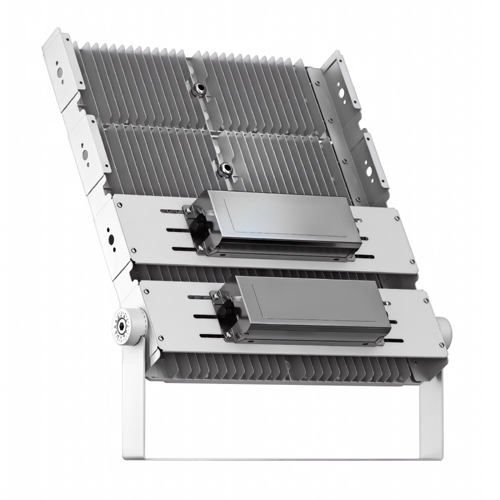

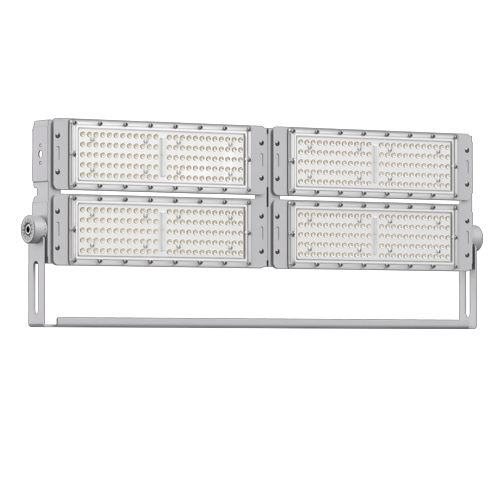

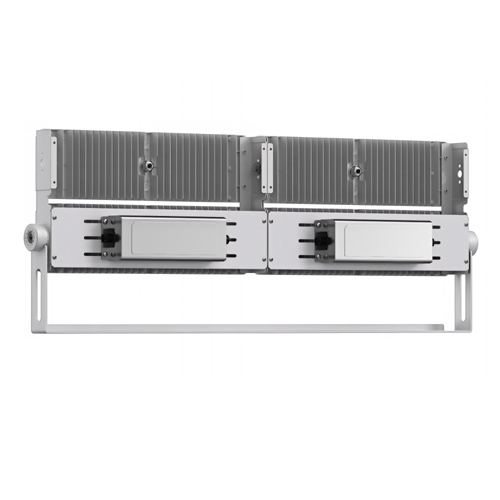

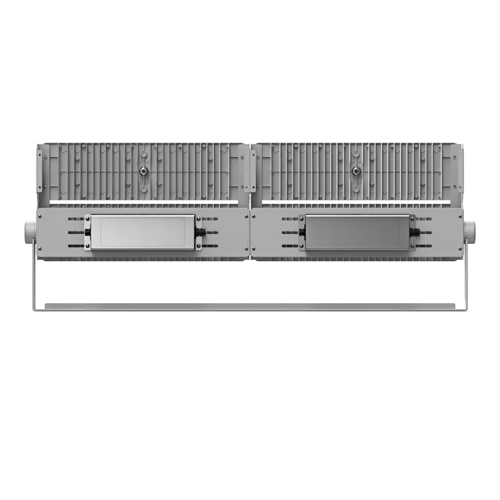

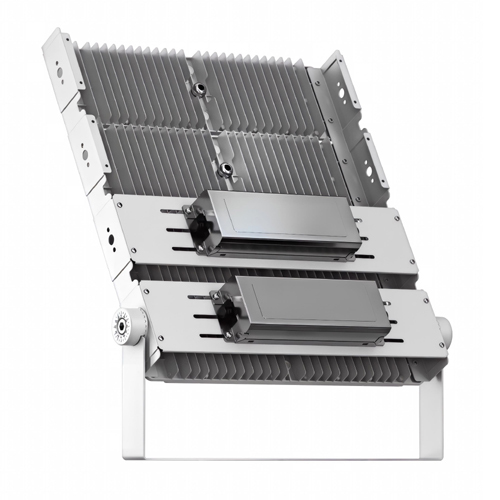

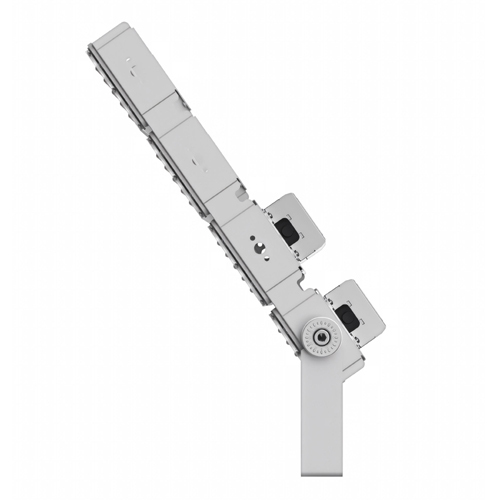

Name: 400W Led Module Flood Light
Brand: Fanguang Lighting
SKU: FG400W20
Availability: InStock
Rating: 5 (1 reviews)

1. Design for widely used as flood light and tunnel light;
2. Aluminum extrusive heat sink enhances thermal conductivity;
3. Unique optical lens design enable excellent efficacy and uniformity;
4. Flexible mounting hardware design suitable for various mounting;
5. Better CRI than HID, increasing visibility;
6. High quality LEDs and drivers are used;
7. Does not contain environmentally harmful mercury pollution, green; Energy saving;
8. Long Lifespan (up to 100,000 hours);

Product Specification:

A.General data

Product Name	LED Module Flood Light 400W
Model	FG400W20
Input Voltage	100-277VAC
Frequency	50/60 Hz
Power Consumption	400W
Power Factor	>0.95
Optical design	15°30°/60°/90°/ 70°*140°(Asy)
IP Rating	IP65/IP66
Operating Temperature	-25°C~+45°C
Storage Temperature	-25°C~+65°C
Relative Humidity	10%-90%
LED Lifetime	> 100,000 hrs @ LM70,LM80
Safety Standards	CE&Rohs

B. Light Data

Model	FG400W20
Light Source	LUMILEDS 3030/5050 Chips
LED QTY	480PCS
Colour Temperature	2700~7000K
Luminous Flux	52000lm~72000lm
Luminous Efficiency	130lm/w-180lm/w
Colour Rendering Index	>80Ra

C. Packing Data

Model	FG400W20
Product Dimension	403110459mm
Pcs/CTN	1PCS/Carton box
Package Dimensions	424320CM(1PCS/CTN)
Net weight	9.5KG
Gross weight	11.0KG

Be sure disconnect power before installing, don’t construction with electricity.
Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
Input product line, brown is “L”, blue is “N” , yellow-green is GND.
Be sure wiring is closed and prevent leakage, when installing.
The lamp can not be used in violation of any fire regulations.

150w-modular-led-flood-light-wire-drawing

Installation and schematic:

150w-modular-led-flood-light-install

LED Module flood light is widely used in the single building, the historical building exterior lighting,also high power led flood light with indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.
