Modular LED Flood Light

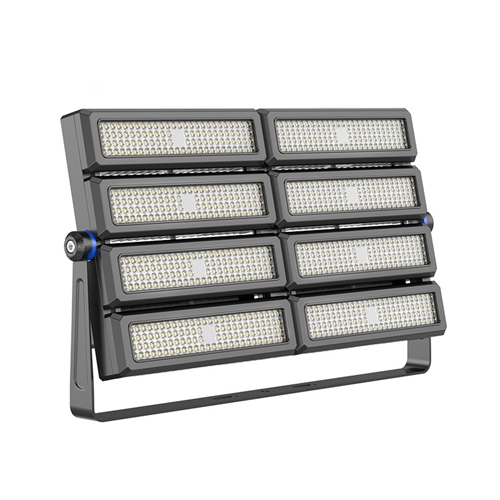

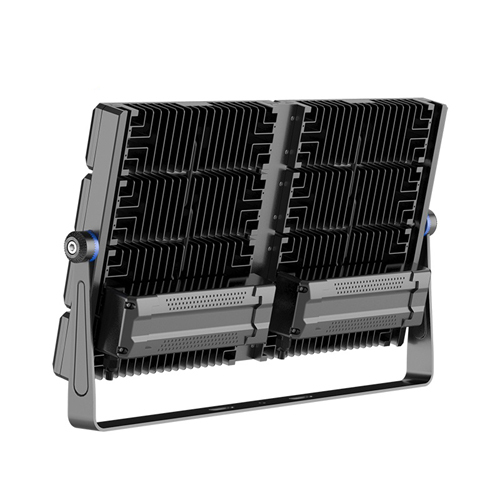

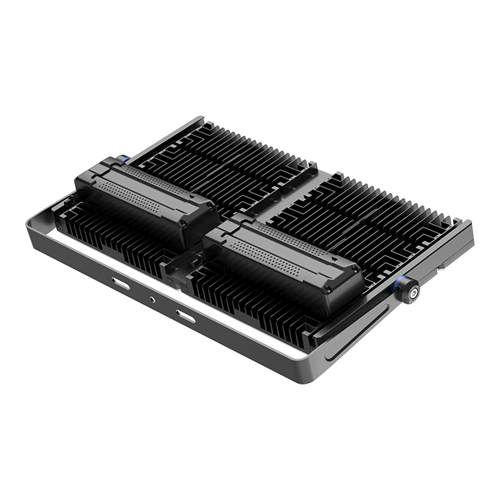

400W Modular Led Flood Light

Item No.: FG400W21
1. Design for widely used as flood light and tunnel light
2. Aluminum extrusive heat sink enhances thermal conductivity
3. Unique lens design enable excellent efficacy and uniformity
4. Osram 2835 Chips,High CRI,over 150lm/w
5. IP66 Waterproof
Request Quote
Description Product Dimension User Manual Application Cases

Led Flood Lights

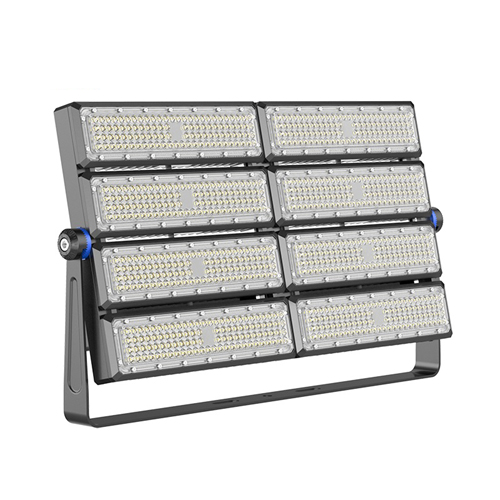

                               400W-Modular-Led-Flood-Light-1
                                400W-Modular-Led-Flood-Light-2
                                400W-Modular-Led-Flood-Light-3

Product Features:

1. Design for widely used as flood light and tunnel light;
2. Aluminum extrusive heat sink enhances thermal conductivity;
3. Unique optical lens design enable excellent efficacy and uniformity;
4. Flexible mounting hardware design suitable for various mounting;
5. Better CRI than HID, increasing visibility;
6. High quality LEDs and drivers are used;
7. Does not contain environmentally harmful mercury pollution, green; Energy saving;
8. Long Lifespan (up to 100,000 hours);


Product Specification:

A.General data

Product Name                                                  Modular LED Flood Light 400W
Model FG400W21
Input Voltage                                     100-277VAC
Frequency                                         50/60 Hz
Power Consumption                                           400W
Power Factor                                          >0.95
Optical design                 25°/45°/60°/90°/80°*150°/90°*120°
IP Rating                                           IP66
Operating Temperature                                    -25°C~+45°C
Storage Temperature                                    -25°C~+65°C
Relative Humidity                                       10%-90%
LED Lifetime                      > 100,000 hrs @ LM70,LM80
Safety Standards                                    CE&Rohs

B. Light Data

Model                                                                          FG400W21
Light Source                 LUMILEDS/Osram 2835 Chips
LED QTY                                    800PCS
Colour Temperature                                   2700~7000K
Luminous Flux                                      60000lm
Luminous Efficiency                            150lm/w or Customized
Colour Rendering Index                                      >80Ra

C. Packing Data

Model                                                                       FG400W21
Product Dimension                                 399*690*95mm
Pcs/CTN                                            1
Package Dimensions                                 740*450*115mm
Net weight                                        9.5KG
Gross weight                                      10.5KG
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
50w-modular-led-flood-light-wire-drawing












Installation and schematic:

modular-led-flood-light-installation
LED Tunnel light is widely used in the single building, the historical building exterior lighting, the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.

Modular-led-flood-light-applications
