Product Features:

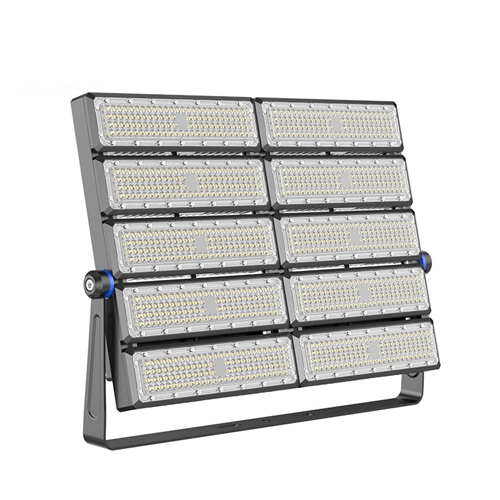

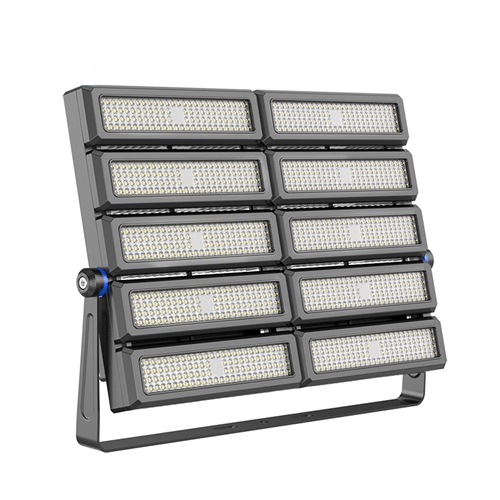

Name: 500W Modular Led Flood Light
Brand: Fanguang Lighting
SKU: FG500W21
Availability: InStock
Rating: 5 (1 reviews)

1. Design for widely used as flood light and tunnel light;

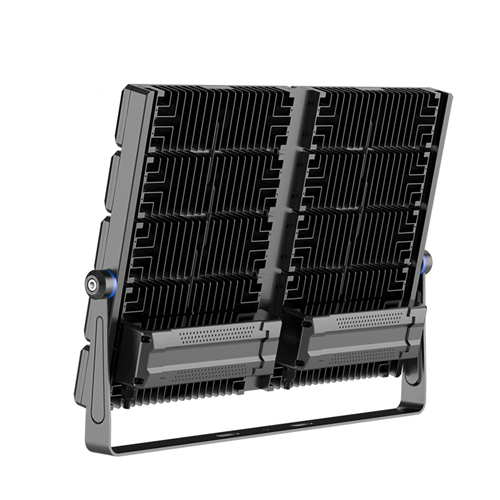

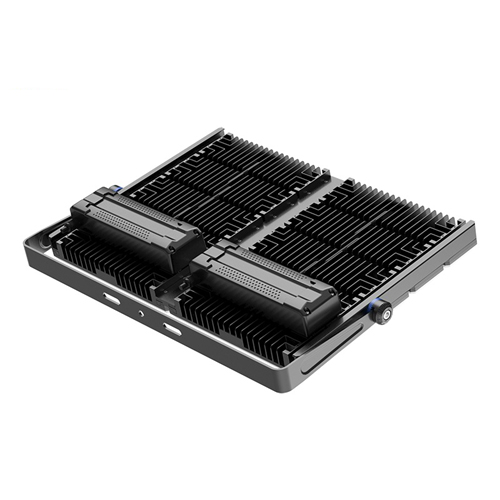

2. Aluminum extrusive heat sink enhances thermal conductivity;
3. Unique optical lens design enable excellent efficacy and uniformity;
4. Flexible mounting hardware design suitable for various mounting;
5. Better CRI than HID, increasing visibility;
6. High quality LEDs and drivers are used;
7. Does not contain environmentally harmful mercury pollution, green; Energy saving;
8. Long Lifespan (up to 100,000 hours);

Product Specification:

A.General data

Product Name	Modular LED Flood Light 500W
Model	FG500W21
Input Voltage	100-277VAC
Frequency	50/60 Hz
Power Consumption	500W
Power Factor	>0.95
Optical design	25°/45°/60°/90°/80°150°/90°120°
IP Rating	IP66
Operating Temperature	-25°C~+45°C
Storage Temperature	-25°C~+65°C
Relative Humidity	10%-90%
LED Lifetime	> 100,000 hrs @ LM70,LM80
Safety Standards	CE&Rohs

B. Light Data

Model	FG500W21
Light Source	LUMILEDS/Osram 2835 Chips
LED QTY	1000PCS
Colour Temperature	2700~7000K
Luminous Flux	75000lm
Luminous Efficiency	150lm/w or Customized
Colour Rendering Index	>80Ra

C. Packing Data

Model	FG500W21
Product Dimension	48769095mm
Pcs/CTN	1
Package Dimensions	740450115mm
Net weight	11.0KG
Gross weight	112.0KG

Be sure disconnect power before installing, don’t construction with electricity.
Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
Input product line, brown is “L”, blue is “N” , yellow-green is GND.
Be sure wiring is closed and prevent leakage, when installing.
The lamp can not be used in violation of any fire regulations.

50w-modular-led-flood-light-wire-drawing

Installation and schematic:

modular-led-flood-light-installation

LED Tunnel light is widely used in the single building, the historical building exterior lighting, the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other facilities lighting, bars, dance halls and other entertainment Lighting and so on.

Modular-led-flood-light-applications
